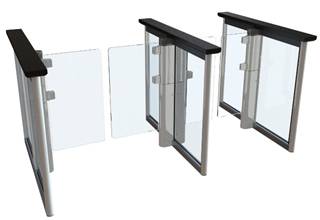

SpeedStile FLs
Description

Minimal footprint, transparent and user-friendly design for all users, for sites where limited space is required and aesthetics are important. Quiet and smooth in operation, the Gunnebo Speed Gate concept design is available in a BA finish with square-ends or in an EV version with round ends, both with a selection of cabinet lengths and flap leaf widths, top lid materials, finishes and options.

Applications include Leisure, Government, Finance, Banking, Retail, Telecommunications, Information Technology, Publishing and Education environments.

General information

Finish

As standard

Chassis, plinth, end leg posts and rotor column finished in 1.4301 (304) grade stainless steel and glass inlay 10 mm thick.

Applied film

Insert colour requirements as per 'Options' below.

Corian

Insert colour requirements as per 'Options' below.

Material

304 Grade Stainless Steel / Glass / Technopolymer

Uniclass 2015

Pr_30_59_34_88 Stainless steel half-height turnstilesPrimary

CAWS

L20/495 Automatic revolving doors

Specification data - Stainless steel half-height turnstiles

Product Reference

Speedstile FLS

Type

BA

Squared cabinet ends.

EV

Rounded cabinet ends.

Size

-

Length

1.2 m

1.4 m

1.8 m

Width

600 mm

900 mm

Combi

600 mm on one side, 900 mm on the other.

Configuration

Single lane

Multiple lane

Insert design reference number as appropriate.

Finish

As standard

Chassis, plinth, end leg posts and rotor column finished in 1.4301 (304) grade stainless steel and glass inlay 10 mm thick.

Applied film

Insert colour requirements as per 'Options' below.

Corian

Insert colour requirements as per 'Options' below.

Accessories

None

Card reader integration

Clear acrylic wings

Light curtain safety kit

Remote control system

Standard product features

Cabinet width:

120 mm.

Product Options

Finish:

Available film colours are:

  • G10 Gloss White.
  • G14 Gloss Burnt Orange.
  • G47 Gloss Intense Blue.
  • G79 Gloss Light Ivory.
  • G201 Gloss Anthracite.
  • G203 Gloss Red Metallic.
  • M12 Matte Black.
  • M203 Matte Grey Aluminium.
  • M209 Matte Brown Metallic.
  • SP10 Satin Pearl White.
  • M211 Matte Charcoal Metallic.

Available Corian colours are:

  • Everest.
  • Sandstone.
  • Midnight.

Security features:

Fraud detection through sophisticated and proven algorithm, prevents:

  • Intrusion.
  • Tailgating.
  • Piggybacking.
  • Wrong way direction.
  • Leave aisle timeout.
  • Anti-crawling flap leaf barrier.

Safety features:

  • Safety force sensing.
  • Safety light curtain.
  • Accurate presence sensing.
  • Emitter/ receiver infrared sensors technology.
  • Logic voltage 24 VAC.
  • Clear acrylic flap leaves.
  • Voltage free contact input for fire alarm fail state.
  • Fail safe manual push opening.
  • Wide walkway for wheel chair or easier access.
  • Accompanied wheelchair or child passage management.

Digital objects
PlatformCompatibleVersionCertified to
IFC
 - 1 2.1
Revit
 - 1 2.1
