Crash proof rapid shutter doors for internal use.

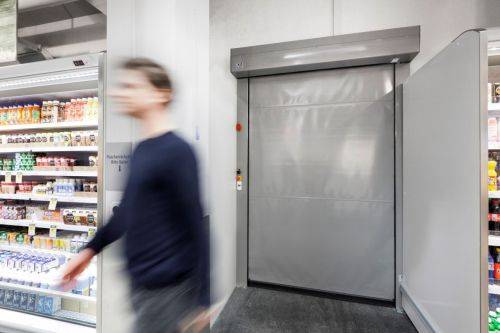

The record Speedcord can be used as the connecting element between two storage areas with differing temperatures. The high opening and closing speeds mean on the one hand short hold-open times, which counteract thermal exchange, and on the other, virtually eliminate possible waiting times in front of the doors. The Speedcord is also very well suited as a noise barrier at the end of assembly line areas.
Maximum size: 3000 x 3000 mm
Drive: Powerful, compact and low maintenance
Power supply: 230 V AC
Door materials: 900 g/m², choice of several colours available, print or transparent area also possible
Shutter: Fibre-reinforced plastic, 900 g/m²
L20/610 Roller shutters/ curtains
3000 x 3000 mm maximum; insert requirements.
Available in 15 standard colours, printed or with transparent area if required. Insert requirements.
Standard product features
Up to 2.5 m/s.
Emergency stop button, remote control unit record BDE-D.
Motion detector, photocell, switch etc.
Hand wheel, hand crank or USV in case of power failures.
