Description

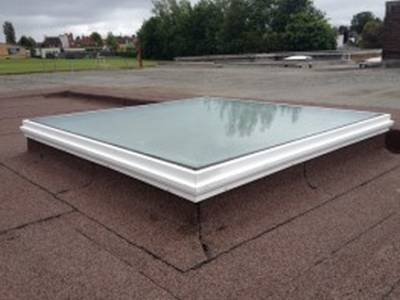

Aluminium glass rooflight system designed to maximize the amount of light entering a building.

Features and benefits:

  • Includes anti-vandal fix.
  • Achieves a low thermal transmittance (U-value).
  • Frame comprises lightweight, rust resistant, powder-coated aluminium.
  • Tested to ACR(M)001:2014, and achieves a Non-Fragility Class ‘B’.
  • Modular system designed for quick and easy installation.

General information
Size

1000 x 1000 mm

40 kg.

1500 x 1000 mm

60 kg.

2000 x 1000 mm

80 kg.

Finish

Polyester powder coating to BS 6496

Material

Glazing: 31.5 mm double-glazed units

Frame: Extruded aluminium bars to BS 1474

Uniclass 2015
Framed rooflights (Pr_30_59_72_31)Primary
Specification data - Framed rooflights
Product Reference

Spacelite Glass Rooflight

Type

For use with existing builders' kerb

For use with Spacelite modular kerb

Size

1000 x 1000 mm

40 kg.

1500 x 1000 mm

60 kg.

2000 x 1000 mm

80 kg.

Colour -
Frame

Powder-coated to grey RAL 7037 and RAL 7035 white as standard. Any RAL or BS colour available; insert requirements.

Glazing -
Outer

6 mm clear toughened glass

Cavity

18 mm argon cavity with warm edge spacer

Inner

7.5 mm clear laminated, low emissivity glass

Extras

75 mm black border and black warm edge spacer

Standard product features

Material:

  • Glazing: 31.5 mm double-glazed units.
  • Frame: Extruded aluminium bars to BS 1474.

Finish:

Polyester powder coating to BS 6496.

Fragility rating:

Tested in accordance with ACR[M]001:2014 and Classified 'Class B non-fragile assembly'.

Primary fixings:

Stainless steel self-tapping screws and stainless steel bolts/ nuts as recommended by Twinfix.

Minimum pitch:

1°.

Thermal transmittance (U-Value):

1.5 mm W/m²K.

Product Options

Type:

Consult manufacturer for details.

Size:

Sizes are to fit kerb size. Actual sizes will be slightly bigger than the stated kerb size. See fixing instructions for further information. Bespoke sizes are also available; consult manufacturer for details.
