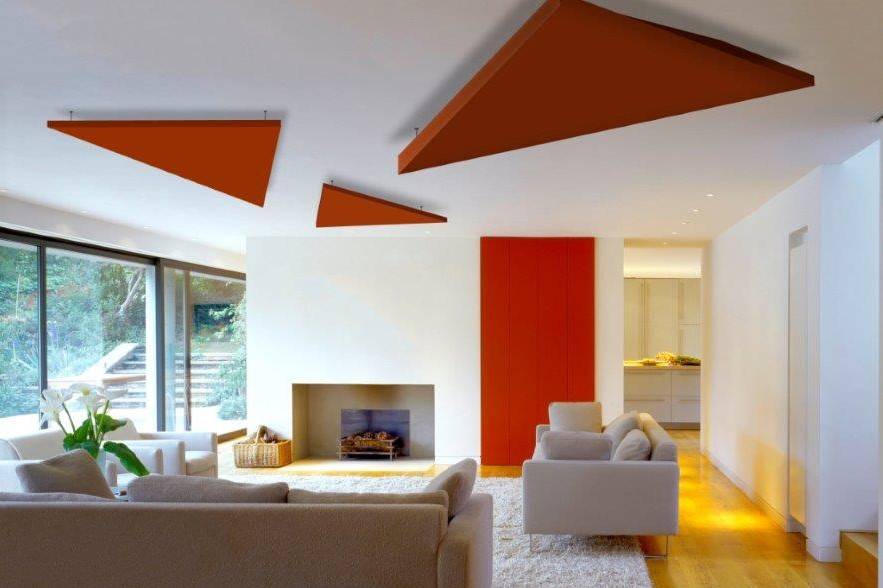

SoundRaft - Suspended acoustic panels
Verified by manufacturer 1 month ago
A range of quality fabric faced acoustic panels suspended from the ceiling soffit using stainless steel cables with easily adjustable quality fixings.
Application
Suspended acoustic panels on cables to form rafts.
Description
A range of quality fabric faced acoustic panels suspended from the ceiling soffit using stainless steel cables with easily adjustable quality fixings. The acoustic panel system is designed for quick and accurate installation. Being spaced away from the soffit results in direct and reflected sound being absorbed by the visible face and back of the SoundRaft suspended acoustic panel.
Features and benefits:
- Suspended acoustic panel reduces overall noise levels within the room/ interior space.
- Acoustic panel gives clarity to speech and music.
- Class A acoustic absorber available.
- Lightweight acoustic panel.
- A choice of 2 standard fabric facing materials available in 70 colours.
- Made from recycled glass-wool board.
- Shapes include - circle, cloud, diamond, Ellipse, hexagon, pentagon, rectangle, square, teardrop and triangle.
General information
Color | Other Guidance for specification option: A choice of 2 standard fabric facing materials are available with 70 colours in total. |
Finish | Manufacturer guidanceFabric |
Material | Fabric Manufacturer guidanceRecycled glasswool & fabric |
Shape | Circle Hexagon Pentagon Rectangle Square |
Length | Manufacturer guidanceVarious sizes available. |
Width | Manufacturer guidanceVarious sizes available. |
Height | Manufacturer guidanceVarious sizes available. |
Uniclass | |
CAWS | K40/140 Fabric membrane/ stretch ceiling system K40/10 Unit/ modular suspended ceilings |
Specification data - Sound attenuator infill units
Form | Panel. |
Application | Soffit mounting. |
Material | Core: Recycled glasswool board; Facing: Fabric. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Class C.Guidance for specification option: From the front but benefits from double-sided absorption which increases performance. |
Fire performance | |
Combustibility | Class 0 (to BS 476-6, recycled glasswool board). |
Reaction to fire | Class 0 (to BS 476-6, recycled glasswool board). |
Dimensions | |
Thickness (overall) | 25 mm. |
Edges | Wrapped rigid edges. |
Surface pattern | Solid. |
Finish | Fabric. |
Colour | Guidance for specification option: A choice of two standard fabric facing materials are available with 70 colours in total. |
Accessories | None.Adjustable suspension cables.Spiral hooks. |
ShapeType | Circle. Cloud. Diamond. Ellipse. Hexagon. |
Sustainability data
Country of material origin | Europe Guidance for specification option: EU. |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceCan effectively lower the carbon footprint of a building project by sequestering rich stores of carbon for the life of the structure or application. |
Recyclability | Disposal in accordance with local recycling/disposal rules |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | % Guidance for specification option: Core: Recycled glasswool board. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2015 | 2 |
 IFC | IFC2X3 | 2 |
Literature
SonaPanel - Acoustic Panel, Raft and Fin System
