Sopro Rapidur® B5 Rapid Drying Floor Screed Binder

Sopro Rapidur® B5 Rapid Drying Floor Screed Binder

SMET Building Products Ltd Third party certifications:
  • Environmental Product Declaration (EPD) - IBU

    Environmental Product Declaration (EPD) - IBU

    Certificate type

A polymer-modified binder for use in rapid-set cement screeds allowing early flooring installation.

Jump to:
+44 (0)28 3026 6833 www.smetbuildingproducts.com

Application

For indoor and outdoor use.

Description

A special polymer-modified binder for use in rapid-set cement screeds allowing early flooring installation, based on DIN 18 560. Low-chromate to Regulation 1907/2006/EC, Annex XVII.


Features and benefits:

  • Ready for tiling after only approximately three days.
  • For fast-track or tightly scheduled screed laying.
  • Suitable for floor heating systems.
  • Good workability.
  • Pumpable.
  • Tested to CT-C60-F7 DIN EN 13813.
  • Floor heating system: Suitable (maximum flow temperature: +55°C).


Mixing ratio:

  • 1:4: 25 kg Sopro Rapidur® B5 : 100 kg 0–8 mm screed sand to DIN EN 12 620 (15 shovelfuls) : 7.5–8.5 L water (depending on sand moisture and mortar consistency). w/c ratio 0.30–0.34.
  • 1:5: 25 kg Sopro Rapidur® B5 : 125 kg 0–8 mm screed sand to DIN EN 12 620 (20 shovelfuls) : 9.0–10.0 L water (depending on sand moisture and mortar consistency). w/c ratio 0.36–0.40.

Particle distribution (grading curve) for aggregate (screed sand) shall fall within A8/B8 range under DIN 1045 Part 2, Annex L, Diagram L.1, and shall exhibit an adequate, though not overly high proportion of fine sand; percentage passing a 0.25 mm sieve: approx. 7–10 %.

Coverage:

  • Mixing ratio 1:4: Approximately 4.0 kg/m² per cm thickness.
  • Mixing ratio 1:5: Approximately 3.5 kg/m² per cm thickness.

Strength class:

- Mixing ratio 1:4:

  • CT-C20-F4 after one day.
  • CT-C35-F5 after three days.
  • CT-C45-F5 after five days.
  • CT-C60-F7 after 28 days.

- Mixing ratio 1:5:

  • CT-C16-F3 after one day.
  • CT-C25-F4 after three days.
  • CT-C30-F4 after five days.
  • CT-C45-F7 after 28 days.

General information

Color

Grey

Material

Polymer-modified

Uniclass

Pr_35_31_06_64 Polymer-modified levelling screed mixes

Primary

CAWS

M10/110 Bonded cement:sand levelling screeds

M10/115 Cement:sand levelling screeds

M10/12 Proprietary polymer modified levelling screeds

M10/130 Proprietary quick drying levelling screeds

M10/140 Proprietary polymer modified levelling screeds

M10/7 Proprietary quick drying levelling screeds

M40/320 Existing concrete/ screeds

Product range

Floor Screeds

Specification data - Polymer-modified levelling screed mixes Enhanced data

Colour

Cement grey.

Thickness

Maximum and minimum screed thickness depends on incorporated aggregate. Screed should be at least three times and at most ten times as thick as maximum particle diameter of aggregate. Recommended grading of screed aggregate 0–8 mm; coat thickness approximately 25–80 mm.

Pot life

2–3 hours (approximately).

Stiffened mortar must not be retempered by addition of water or fresh mortar to restore workability.

Drying time

Walkable: After 7–8 hours; Ready to receive floor covering: For tiling: after approx. three days; for impervious coverings: after 3–5 days and after achievement of residual moisture content ≤1.8% CM.

Application temperature

5–25°C.

Minimum thickness

Floor heating systems, 25 mm pipe cover.

Suitability for castor chairs

(Castor chair resistance)

Suitable (for castors to DIN 68131).

Environmental information

Country of material origin

Germany

Country of product manufacture

Germany

Embodied carbon

6.38 kg·CO₂e/kg

Digital objects

Platform Compatible Version Certified to
IFC
-

3

2.0
Revit

Revit 2017

3

2.0
Download now from NBS National BIM Library

Literature

TDS Sopro Rapidur® B5 Rapid Drying Floor Screed Binder

TDS Sopro Rapidur® B5 Rapid Drying Floor Screed Binder

Case studies

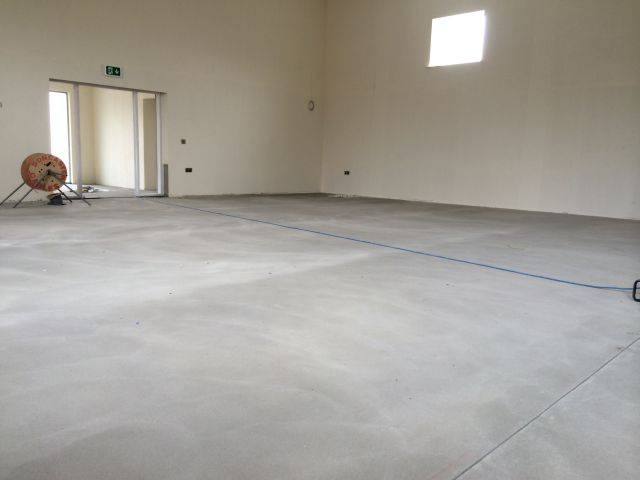

20,000m2 Rapidur® B5 Binder | B Doherty Screeding Services | National Mental Health Hospital Portrane

20,000m2 Rapidur® B5 Binder | B Doherty Screeding Services | National Mental Health Hospital Portrane

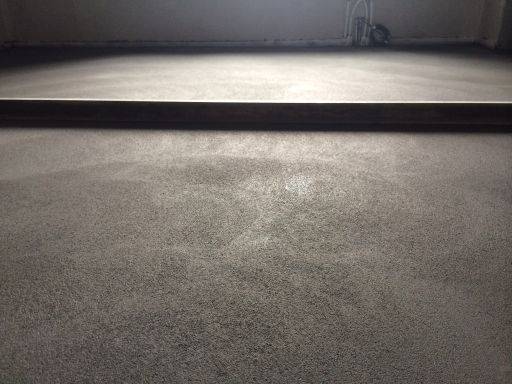

Bray Medical Centre | B Doherty Fast Track Flooring
