Sonify by Zentia – Sonify Canopy (Hexagon) - Ceiling System
Verified by manufacturer 5 months ago

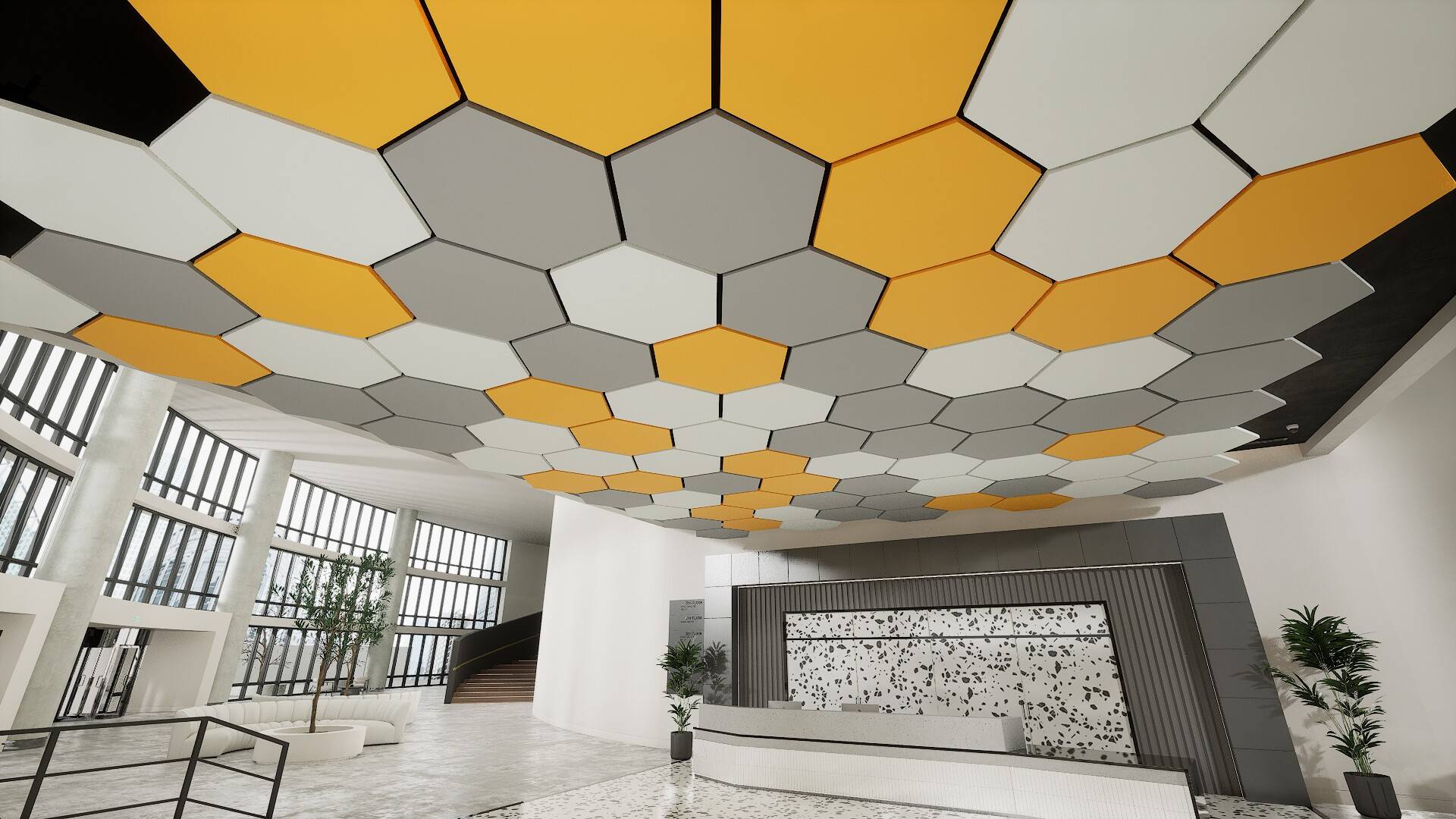

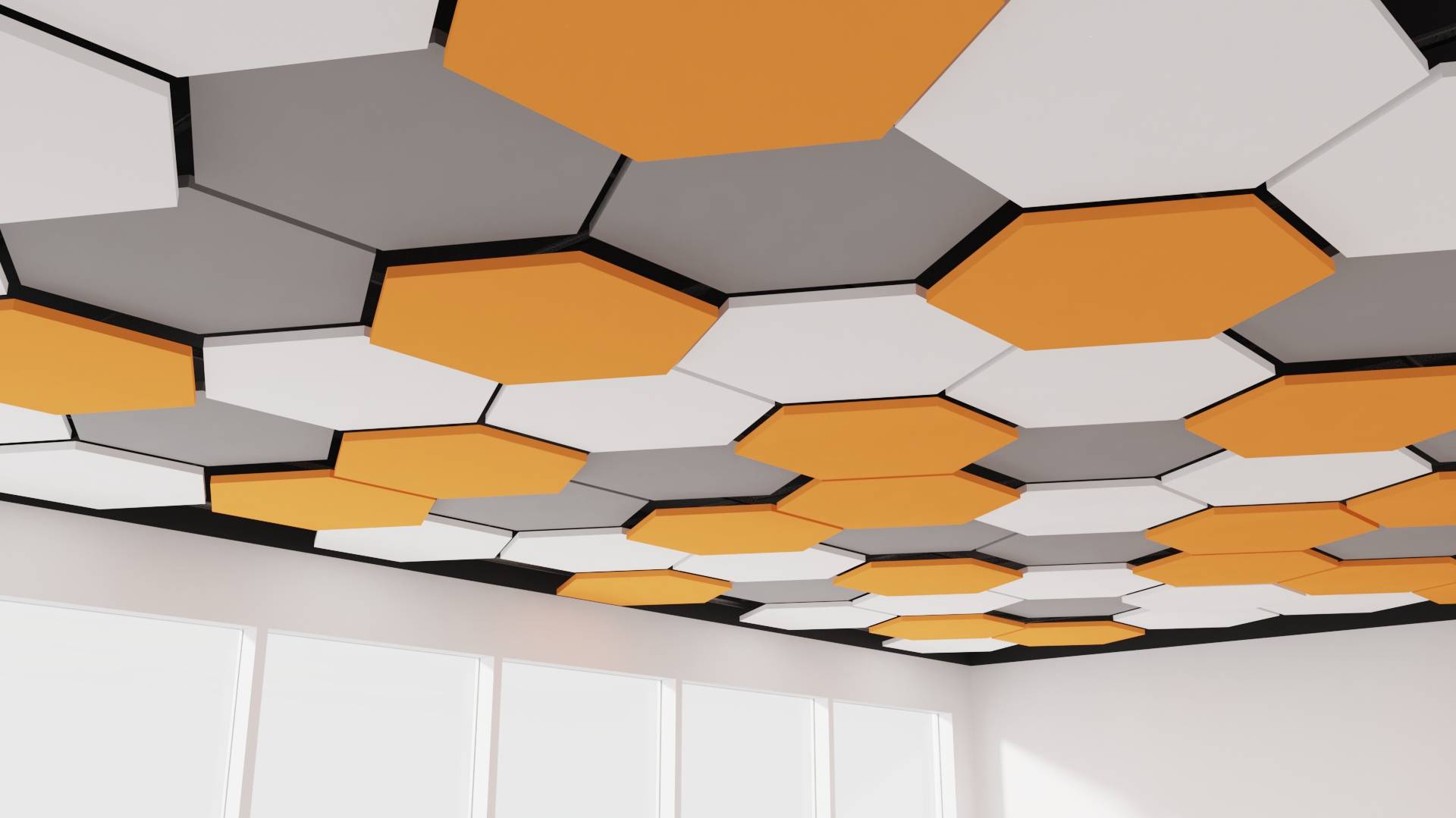

Customizable discontinuous ceiling solution with hexagon canopy.
Application
Suitable for a range of environments including hospitality, education, retail and commercial spaces.
Description
Customizable discontinuous ceiling solution with hexagon canopy.
Features and benefits:
- Multiple different design configurations available.
- Easy to install - features a grid system that facilitates installation with speed, accuracy with minimal panel sway.
- Supplied as a kit of parts.
- Available in a wide range of standard colours.
- High level of acoustic performance - reduces noise levels, increases speech intelligibility and reduces reverberation time within a space.
- Easily cleaned.
For further inspiration on how the Sonify by Zentia system can add value to your project, please visit www.sonifystudio.com or contact the Zentia Specification Team.
General information
Color | White Blue Green Orange Red |
Finish | Painted Guidance for specification option: Grid. Galvanized Guidance for specification option: Grid. Other Guidance for specification option: Panel. |
Material | Glass Fibre Guidance for specification option: Acoustic ceiling panel. Steel Guidance for specification option: Grid. |
Shape | Hexagon |
Length | 1160 mm |
Width | 1300 mm |
Warranty description | 30 year |
Uniclass | |
CAWS | K40/105 Suspended ceiling system |
Specification data - Raft or island suspended ceiling systems
Ceiling support | Sonify Create grid - black.Sonify Create grid - white.Sonify Create grid - galvanized.Manufacturer guidanceGrid capping can be painted in any of the standard Zentia colours - 36 choices available. See main 'Colour' property for details and insert requirements. |
Ceiling type | Glass fibre hexagon canopy units. |
Thickness | 40 mm. |
Colour | BK1.BL1.BL2.BL3.BL4.BL5.BR1.BR2.BR3.BR4.GA1.GR1.GR2.GR3.GR4.GR5.GY1.GY2.GY3.OR1.OR2.OR3.PU1.PU2.PU3.PU4.PU5.RE1.RE2.RE3.RE4.RE5.WH1.YE1.YE2.YE3.Multi-colour.Guidance for specification option: Consult manufacturer for details and insert requirements. Manufacturer guidanceManufacturer recommends ordering a full colour sample prior to specification and ordering. Multiple colours can be selected within the same design - engage with Zentia specification team for details. |
Samples required | Not required.Product samples.Guidance for specification option: Consult manufacturer for details and insert requirements. https://www.zentia.com/en-gb/sonify/sonify-order-a-sample-nbs/ |
System accessories | Not required.End caps.Guidance for specification option: Provided to match the colour of the Grid. Suspension kit.Guidance for specification option: As required, consult manufacturer for details. Manufacturer guidanceConsult manufacturer and insert requirements. |
Unit size | 1300 x 1160 mm. |
Formation | Singular panel. Guidance for specification option: Please note when specifying this panel to create multiple designs/ shapes/ patterns, please consult with the Zentia specification team for spacing limitations when using the Sonify Create grid system. Island. |
Formaldehyde emissions | To EN 13964, E1. |
Reaction to fire | Canopies and Baffles: Reaction to fire (Euroclass) to EN 13501-1, A2-s2,d0 for all colours (and not s1). Grid: Reaction to fire (Euroclass) to EN 13501-1, A2-s1,d0 for all colours. |
Sound absorption coefficient | 0.46-1.9 (100 Hz-5000 Hz). Guidance for specification option: Dependent on sound level and suspension method. Manufacturer guidanceSee manufacturer's literature for further information. |
Suspension | Manufacturer guidanceSuspended from the Sonify Create Grid System - for further information please engage with Zentia. |
Sustainability data
Material | Glass Fibre Guidance for specification option: Acoustic ceiling panel. Steel Guidance for specification option: Grid. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 85 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

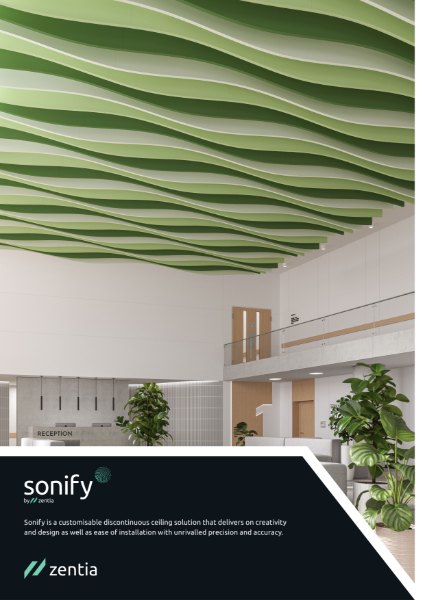

Sonify – Product Data Sheet
