SonaSpray K-13 - Acoustic spray
QA Certificate
Certificate type
Coarse textured spray applied finish. Ideal for use in sports halls, stadia, auditoria, night clubs, bars, factories, warehouses, etc.
Acoustic spray for ceilings and walls above 2 metres.
Noise reduction insulation spray ideal for use in offices, public spaces, stadia, sports halls, auditoria, stadiums, night clubs/bars, factories, warehouses etc.
Acoustic spray application by Oscar Acoustics trained in-house teams.
A deliberately industrial, coarsely textured, seamless spray applied acoustic spray finish for reverberation control.
Coarse textured compressible surface coating. Naturally safe recycled cellulose fibre with low embodied energy. Can be disposed of as non-hazardous waste.
An excellent alternative to acoustic panel ceilings without design compromise.
Features and benefits:
- SonaSpray is a recycled acoustic spray and acoustic plaster product range that not only satisfy sustainable design certification systems like BREEAM, SKA, Living Building Challenge and LEED, they also tick every box for indoor environmental and air quality.

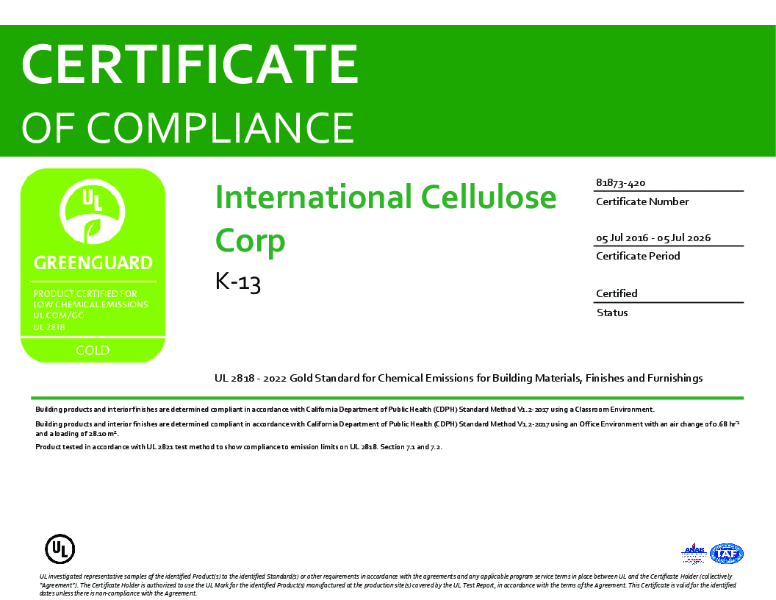

- The SonaSpray acoustic spray and acoustic plaster range is M1 Classified as Low Emitting Building Materials (the top achievable class), and is compliant with CDPH/CA Section 01350 and are GREENGUARD Gold Certified for Indoor Air Quality.
- GREENGUARD Gold Products are now confirmed to show compliance with BREEAM rating system HEA Indoor Air Quality and ensure that a product has met some of the world’s most rigorous and comprehensive standards for low emissions of VOC’s into indoor air. The SonaSpray acoustic spray and acoustic plaster range is also covered by an Environmental Product Declaration in accordance with ISO 14025.
- All these credentials enable the SonaSpray acoustic spray and acoustic plaster range to contribute towards satisfying many features under the WELL Building Standard®: an international performance-based system for measuring, certifying and monitoring features of the built environment that impact human health and wellbeing, through air, water, nourishment, light, fitness, comfort and mind, with a mission to improve human health and wellbeing through the built environment.
- The adhesive provides a strong, durable and resilient bond.
- Acoustic ceiling spray can be applied to virtually any substrate configuration.
- Noise reduction spray insulates by creating dead air macroscopic spaces between and within the hollow cellulose fibres.
Application:
Acoustic spray for ceilings and walls above 2 metres.
Noise reduction insulation spray ideal for use in offices, public spaces, stadia, sports halls, auditoria, stadiums, night clubs/bars, factories, warehouses etc.
Acoustic spray application by Oscar Acoustics trained in-house teams.
| Finish | Coarse textured |
| Features | Recycled product range that contributes upto 17 points to LEED (Leadership in Energy & Environmental Design) rating of a project |
| Material | Recycled high grade paper |
| Uniclass 2015 | |
| CAWS | M22/120 Sprayed |
| Product Reference | SonaSpray K-13 |
| Colour | WhiteLight greyGreyBlackBeige |
| System manufacturer | ICC |
| Preparation | In accordance with OEL3 Oscar pre-start check list |
| Binding agent | Water based adhesives |
| Insulant | R 0.03 per mm (W/m·K) |
| Movement joints - Form with | Stop bead (only required when passing over existing movement joints) |
| Accessories | NoneAccess hatchRecessed light halos (flanged fitting only)PattressStop bead |
| Thickness | 16 mmCan achieved up to 100 mm thick, typically 25–50 mm to achieve acoustic performance and 75 mm for thermal insulation. 25 mm38 mm50 mm70 mm76 mm |
| Weight | 3.6 kg/m²16 mm 5.625 kg/m²25 mm 8.55 kg/m²38 mm 11.25 kg/m²50 mm 15.75 kg/m²70 mm 17.1 kg/m²76 mm |
| Acoustic data | to BS EN ISO 354 at 125 Hz: 0.10, at 250 Hz: 0.40, at 500 Hz: 0.90, at 1 kHz: 0.95, at 2 kHz: 1.00, at 4 kHz: 1.0016 mm. to BS EN ISO 354 at 125 Hz: 0.20, at 250 Hz: 0.55, at 500 Hz: 0.95, at 1 kHz: 1.00, at 2 kHz: 1.00 at 4 kHz: 0.9525 mm. to BS EN ISO 354 at 125 Hz: 0.20, at 250 Hz: 0.65, at 500 Hz: 1.00, at 1 kHz: 1.00, at 2 kHz: 1.00, at 4 kHz: 1.0038 mm. to BS EN ISO 354 at 125 Hz: 0.35, at 250 Hz: 0.80, at 500 Hz: 1.00, at 1 kHz: 1.00, at 2 kHz: 1.00, at 4 kHz: 1.0050 mm. to BS EN ISO 354 at 125 Hz: 0.40, at 250 Hz: 1.00, at 500 Hz: 1.00, at 1 kHz: 1.00, at 2 kHz: 1.00, at 4 kHz: 1.0070 mm. to BS EN ISO 354 at 125 Hz: 0.50, at 250 Hz: 1.00, at 500 Hz: 1.00, at 1 kHz: 1.00, at 2 kHz: 1.00, at 4 kHz: 1.0076 mm. |
| Noise reduction coefficient | 0.8516 mm. 0.9025 mm. 0.9538 mm. 1.0050 mm, 70 mm, 76 mm. |
| Weighted sound absorption coefficient | 0.70 αw16 mm. 0.85 αw25 mm. 0.95 αw38 mm. 1.00 αw50 mm, 70 mm, 76 mm. |
| Standard product features | Feature: SonaSpray is a recycled product range that not only satisfy sustainable design certification systems like BREEAM, SKA, Living Building Challenge and LEED, they also tick every box for indoor environmental and air quality. They are M1 Classified as Low Emitting Building Materials (the top achievable class), are compliant with CDPH/CA Section 01350 and are GREENGUARD Gold Certified for Indoor Air Quality. GREENGUARD Gold Products are now confirmed to show compliance with BREEAM rating system HEA Indoor Air Quality and ensure that a product has met some of the world’s most rigorous and comprehensive standards for low emissions of VOC’s into indoor air. The range is also covered by an Environmental Product Declaration in accordance with ISO 14025. All these credentials enable the SonaSpray range to contribute towards satisfying many features under the WELL Building Standard®: an international performance-based system for measuring, certifying and monitoring features of the built environment that impact human health and wellbeing, through air, water, nourishment, light, fitness, comfort and mind, with a mission to improve human health and wellbeing through the built environment. Finish: Coarse textured. Material: Recycled high grade paper. Recycled content: SonaSpray fibres are made up of minimum 80% post-consumer recycled high grade paper. Recyclability: Disposal in accordance with local recycling/disposal rules. Embodied carbon: Can effectively lower the carbon footprint of a building project by sequestering rich stores of carbon for the life of the structure or application. Country of Product Manufacture: USA. Country of Material Origin: USA. Fire rating: B-s1,d0 & Class 0 to BS476 - significantly betters the requirements of the new Approved Document B providing little to no smoke and absolutely no droplets, assisting in the safe escape of occupants. Emissions:
Environmental standard:
Flangeless fittings: 90% of flangeless fittings do not work properly with any acoustic finish. If you are specifying a flangless fitting, please contact Oscar Acoustics for advice. Sound absorption: Acoustic testing has been carried out against concrete. Substrates likely to provide increased performance include plasterboard with the use of an air gap behind, rib deck or profiled metal sheet. Please contact Oscar Acoustics’ technical department for free design assistance. |
| Country of material origin | USA |
| Country of product manufacture | USA |
| Embodied carbon | Can effectively lower the carbon footprint of a building project by sequestering rich stores of carbon for the life of the structure or application |
| Recyclability | Disposal in accordance with local recycling/disposal rules |
| Recycled content | SonaSpray fibres are made up of minimum 80% post-consumer recycled high grade paper |
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | IFC2X3 | 2 | 1.3 |
 Revit | Revit 2016 | 3 | 2.0 |
QA Certificate
Warringtonfire: Method of test for Fire propagation for products - BS 476 Part 6: 1989 A1: 2009
QA Certificate
Warringtonfire: Method for classification of the surface spread of flame of products - BS 476 Part 7: 1997
QA Certificate
Warringtonfire: Classification of reaction to fire performance - 13501-1:2007+A1: 2009
QA Certificate
Warringtonfire: Classification of reaction to fire performance - EN 13501-1:2007 A1: 2009
QA Certificate
Warringtonfire: Compliance with the requirements for A class 0 surface - Class 0 Summary Report
