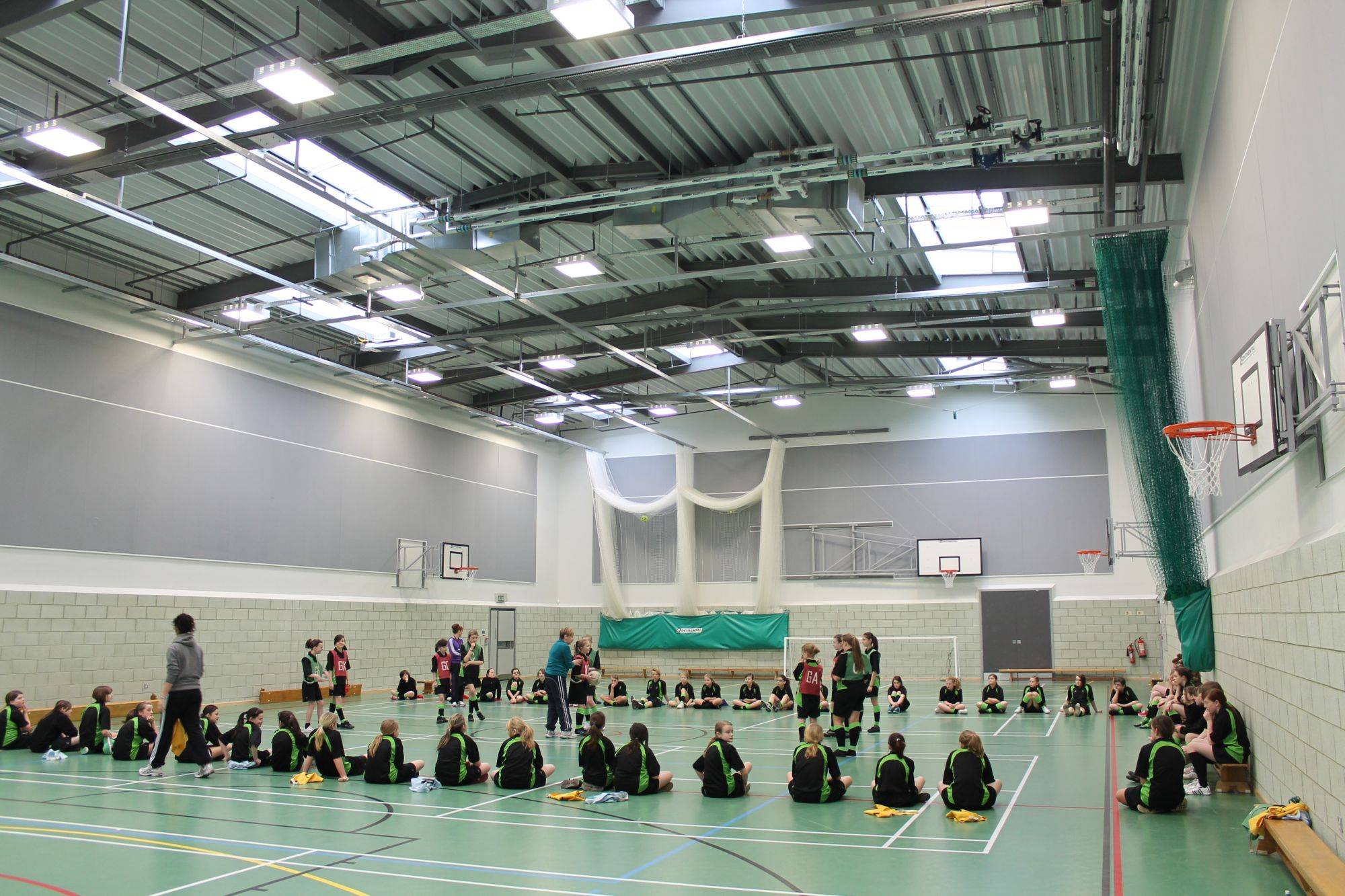

SonaPanel - Acoustic Panel System

Verified by manufacturer 4 months ago

SonaPanel - Acoustic panel system 25 mm

Oscar Acoustics Variant:

A range of quality fabric faced acoustic panel systems with a multitude of applications.

Jump to:
BOS
+44 (0)1474 854902 Website

Application

Acoustic panel wall fixing.

Description

A range of quality fabric faced wall-mounted acoustic panel systems which are also available in cable-suspended acoustic raft form.

SonaPanels are a range of quality fabric-faced acoustic panel systems with a multitude of applications. Acoustic panels available in two fabric choices and over 70 colours.


Features and benefits:

  • Sound absorbing panel.
  • Environmentally friendly acoustic panel made from recycled glass-wool board.
  • Acoustic panel reduces overall noise levels within the room/ interior space.
  • Gives clarity to speech and music.
  • Class A acoustic absorber available.
  • Lightweight.
  • Available in a large colour choice.


Fire rating:

Recycled glasswool acoustic board is fire rated to Class 0 to BS 476: Part 6. Standard fabric facings comply with Class 1 to BS 476: Part 7. Class 0 fire rated fabric finishes are also available on request. PVC-U trims are fire rated as BS 476 Part 7. As with normal PVC-U, the trims have a maximum softening limit of 60°C


Weight:

  • 3 kg/m².

General information

Color

Other

Guidance for specification option:

Various colours are available. A choice of two standard fabric facing materials are available with 70 colours in total.

Finish

-

Manufacturer guidance

Fabric

Material

-

Manufacturer guidance

Glass wool & fabric

Shape

Other

Manufacturer guidance

Various

Size

-

Manufacturer guidance

Various

Length

2700 mm

Width

1200 mm

Height

25 mm

40 mm

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

Specification data - Sound attenuator infill units

Form

Panel.

Rigidity

Rigid.

Application

Wall fixing.

Material

Glasswool and fabric.

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class C.

Fire performance

-

Combustibility

Class 0 (to BS 476-6, recycled glasswool board).

Reaction to fire

Class 0 (to BS 476-6, recycled glasswool board).

Dimensions

-

Size (length x width)

2700 x 1200 mm.

Thickness (overall)

25 mm.

Edges

Rigid.

Surface pattern

Solid.

Finish

Fabric.

Colour

-

Manufacturer guidance

A choice of two standard fabric facing materials are available with 70 colours in total. Insert requirements.

Accessories

None.

Impaling clips.

Spiral hook clips.

Split batten.

Weight

3 kg/m².

Fixing systems

The relevant fixing kit is supplied for each SonaPanel system.

Sustainability data

Country of material origin

Europe

Guidance for specification option:

EU.

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

kg·CO₂e/kg

Self declared

Guidance for specification option:

Can effectively lower the carbon footprint of a building project by sequestering rich stores of carbon for the life of the structure or application.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

%

Guidance for specification option:

Core: Recycled glasswool board.
