SonaPanel - Acoustic Panel System
Verified by manufacturer 6 months ago
SonaPanel - Acoustic panel system 25 mm
SonaPanel - Acoustic panel system 25 mm
A range of quality fabric faced acoustic panel systems with a multitude of applications.
Application
Acoustic panel wall fixing.
Description

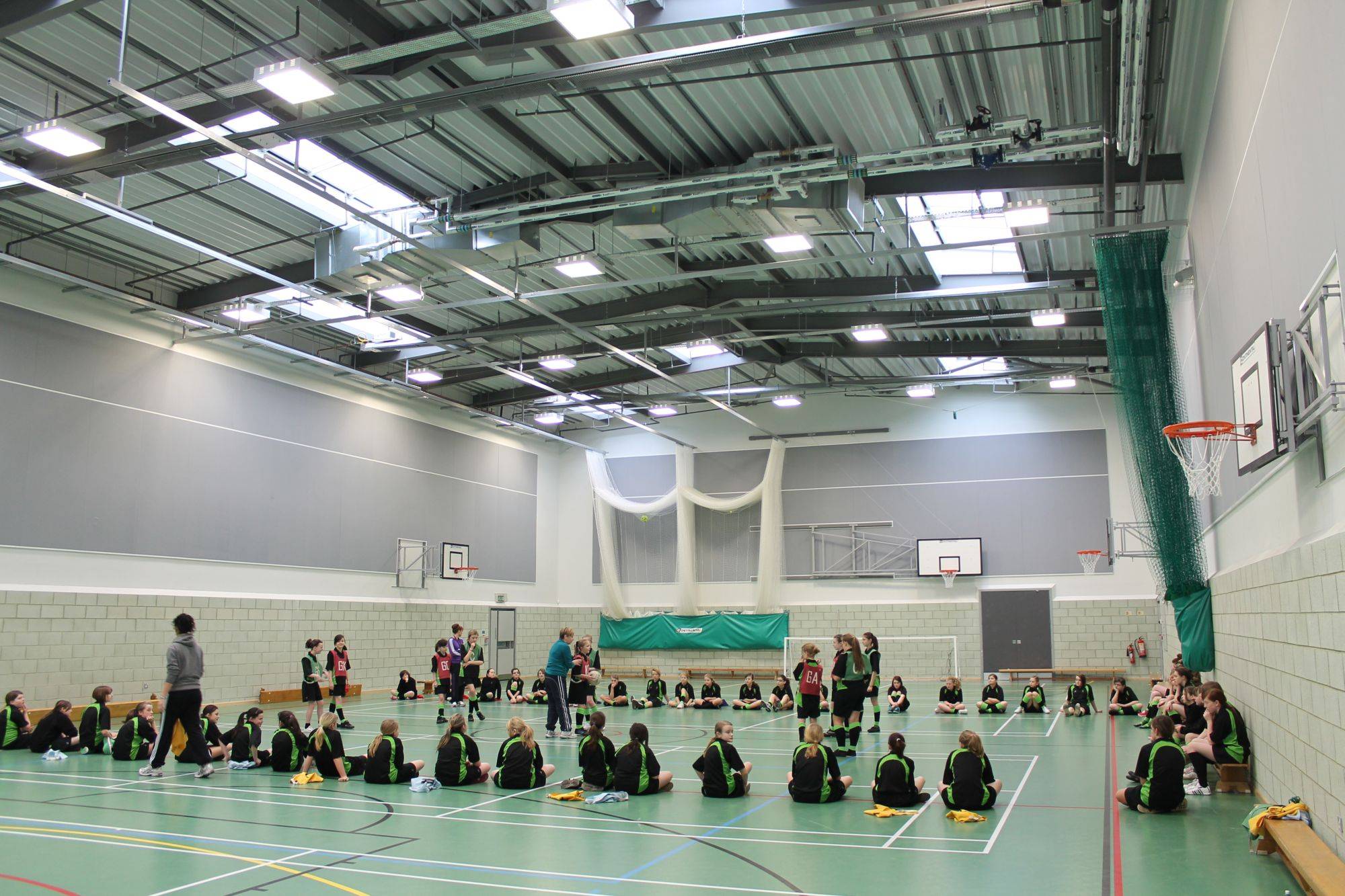

A range of quality fabric faced wall-mounted acoustic panel systems which are also available in cable-suspended acoustic raft form.
SonaPanels are a range of quality fabric-faced acoustic panel systems with a multitude of applications. Acoustic panels available in two fabric choices and over 70 colours.
Features and benefits:
- Sound absorbing panel.
- Environmentally friendly acoustic panel made from recycled glass-wool board.
- Acoustic panel reduces overall noise levels within the room/ interior space.
- Gives clarity to speech and music.
- Class A acoustic absorber available.
- Lightweight.
- Available in a large colour choice.
Fire rating:
Recycled glasswool acoustic board is fire rated to Class 0 to BS 476: Part 6. Standard fabric facings comply with Class 1 to BS 476: Part 7. Class 0 fire rated fabric finishes are also available on request. PVC-U trims are fire rated as BS 476 Part 7. As with normal PVC-U, the trims have a maximum softening limit of 60°C
Weight:
- 3 kg/m².
General information
Color | Other Guidance for specification option: Various colours are available. A choice of two standard fabric facing materials are available with 70 colours in total. |
Finish | Manufacturer guidanceFabric |
Material | Manufacturer guidanceGlass wool & fabric |
Shape | Other Manufacturer guidanceVarious |
Size | Manufacturer guidanceVarious |
Length | 2700 mm |
Width | 1200 mm |
Height | 25 mm 40 mm |
Uniclass | |
CAWS | K13/170 Acoustic panel lining K13/170 Acoustic panel lining |
SKU Code | unknown |
Specification data - Sound attenuator infill units
Classification data | |
Form | Panel. |
Rigidity | Rigid. |
Application | Wall fixing. |
Material | Glasswool and fabric. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Class C. |
Fire performance | |
Combustibility | Class 0 (to BS 476-6, recycled glasswool board). |
Reaction to fire | Class 0 (to BS 476-6, recycled glasswool board). |
Dimensions | |
Size (length x width) | 2700 x 1200 mm. |
Thickness (overall) | 25 mm. |
Edges | Rigid. |
Surface pattern | Solid. |
Finish | Fabric. |
Colour | Manufacturer guidanceA choice of two standard fabric facing materials are available with 70 colours in total. Insert requirements. |
Accessories | None. Impaling clips. Spiral hook clips. Split batten. |
Weight | 3 kg/m². |
Fixing systems | The relevant fixing kit is supplied for each SonaPanel system. |
Sustainability data
Country of material origin | Europe Guidance for specification option: EU. |
Country of product manufacture | United Kingdom |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Guidance for specification option: Core: Recycled glasswool board. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2015 | 2 |
