Solo™ Freedom Shapes
Application

Suitable for use in buildings where the room volume could be maintained, or as an option when 'thermally activated building system (TABS)' is selected as a cooling system.

Description

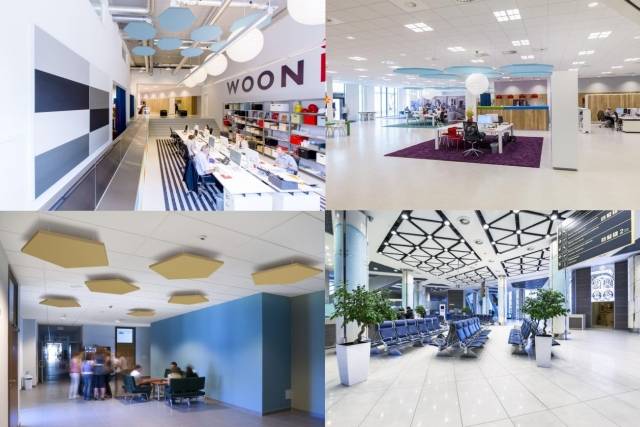

Acoustic ceiling panel system, available in several shapes and sizes, allowing freedom of design and the opportunity to create striking new expressions, whilst also keeping up to speed with sustainable architectural developments. Solo Panels are unframed, free-hanging units.

The three different suspension systems (using adjustable wire hangers, one-point fixing or absorber brackets, in combination with the engineered Connect™ Absorber anchor) provide opportunities to create several layers and angles.

Features and benefits:

  • The panels are available as standard and non-standard sizes.
  • The panel is manufactured from high-density, third-generation glass wool.
  • Akutex™ FT surface on both sides.
  • The edges are straight-cut and painted.

General information

Features

Available in several shapes and sizes, allowing freedom of design and the opportunity to create striking new expressions

Finish

Material

High-density glass wool

Size

1200 x 553 mm

2400 x 1106 mm

2400 x 1000 mm

1198 x 1168 mm

1200 x 1040 mm

Show more

WarrantyDescription

Uniclass 2015

Ss_30_25_22_70 Raft or island suspended ceiling systemsPrimary

CAWS

K40/10 Suspended ceilings

K40/105 Suspended ceiling system

K40/115 Unit/ modular suspended ceiling system

K40/265 Infill units

K45/12 Existing suspended ceiling system

Show more
Specification data - Raft or island suspended ceiling systems Enhanced data

Ceiling support

Absorber bracket

121 mm minimum overall depth.

Connect™ Adjustable wire hanger

140 mm minimum overall depth.

One-point fixing

Not available for Solo™ Ellipse, 500 mm minimum overall depth.

Support fasteners

Connect™ Absorber anchor

Ceiling type

Acoustic high-density glass wool panel ceiling

System accessories

None

Connect covering cup

White.

Product Reference

Solo™ Cloud

1200 x 553 mm or 2400 x 1106 mm, 11.5 kg per panel.

Solo™ Ellipse

2400 x 1000 mm, 7.5 kg per panel.

Solo™ Heptagon

1198 x 1168 mm, 4.2 kg per panel.

Solo™ Hexagon

1200 x 1040 mm, 3.7 kg per panel.

Solo™ Octagon

1200 x 1200 mm, 4.8 kg per panel.

Show more

Size (l x w)

Manufacturer's standard.

See product reference for information.

1200 x 553 mm.

For Solo Cloud only.

2400 x 1106 mm.

For Solo Cloud only.

Thickness

40 mm.

Colour/ Finish

Cloudy Day.

Nearest NCS colour sample S 1500-N, 62% light reflectance.

Scallop Shells.

Nearest NCS colour sample S 1515-Y80R.

Peach Rose.

Nearest NCS colour sample S 1515-Y80R.

Goji Berry.

Nearest NCS colour sample S 3030-Y80R.

Sage Garden.

Nearest NCS colour sample S 3010-B30G.

Show more

Indoor climate

Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1.

Moisture resistance

The tiles withstand a permanent ambient relative humidity (RH) of up to 70% at 25°C without sagging, warping or delaminating (EN 13964).

Fire safety

To BS EN 13501-1, Class A2-s1, d0.

Sound absorption

To EN ISO 354:2003.

Cleaning

The ceiling system can withstand daily dusting and vacuum cleaning, and weekly wet-wiping.

Environmental information

Contains Red List materials

All Ecophon products are free from substances of very high concern (SVHC) and any compound on the list of REACH in the EU.

-

Country of material origin

Denmark

Embodied carbon

8.07 kg CO₂ equiv/m², in conformity with ISO 14025/ EN 15804

Recycled content

56
