Solo™ Steel

Third party certifications:

Environmental Product Declaration (EPD) - BRE
Certificate type
Indoor Air Comfort – Eurofins
Certificate type
DoP
Certificate type

A suspended acoustic ceiling panel.

Jump to:

Application

Suitable for use in buildings where the room volume could be maintained, or as an option when 'thermally activated building system (TABS)' is selected as a cooling system.

Description

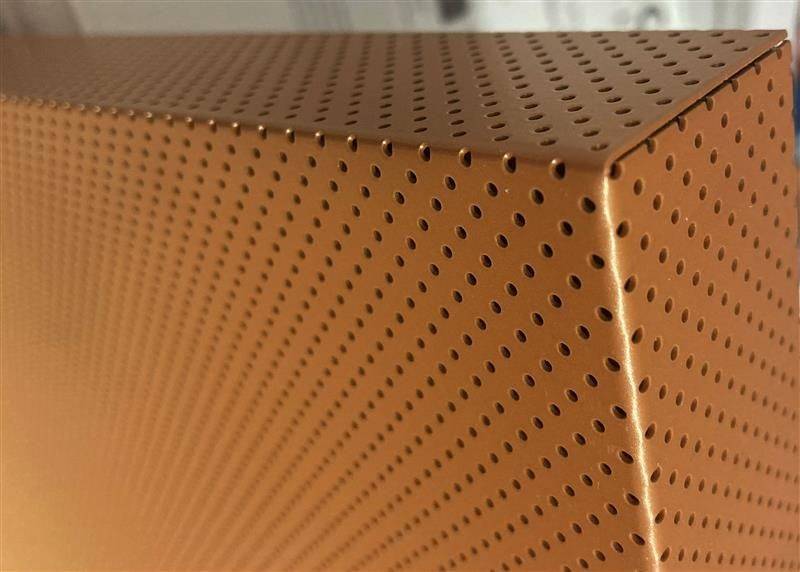

Ecophon Solo™ Steel is a panel covered in perforated steel on all sides, painted with powder coating. The free-hanging unit combines high acoustic performance with design and robustness.

Features and benefits:

Easy to install.
Available in a range of colours.
CE marked to EN 13964: 2014.

General information

Shape	Square
Color	Black Copper Grey White
Finish	Matte Powder-coated, matte shine.
Material	Steel
WarrantyDescription	Ten years
Size	1200 x 1200 x 40 mm

Uniclass	Ss_30_25_22_01 Acoustic baffle suspended ceiling systemsPrimary
CAWS	K40/115 Unit/ modular suspended ceiling system K40/10 Unit/ modular suspended ceilings K40/265 Infill units K45/120 Existing suspended ceiling system K40/105 Suspended ceiling system K45/12 Existing suspended ceiling system

Specification data - Acoustic baffle suspended ceiling systems Enhanced data

Ceiling support	Connect adjustable wire hanger, four per panel.
Ceiling units	Perforated, powder-coated steel panels.

Colour	Milky way. Nearest NCS colour sample: S 0500-N. Light reflectance: 85%. Asteriod grey. Nearest NCS colour sample: S 3502-R. Light reflectance: 38%. Endless space. Nearest NCS colour sample: S 9000-N. Light reflectance: 2%. Venus copper. Nearest NCS colour sample: S 3040-Y50R. Light reflectance: 22%.
Reaction to fire	To EN 13501-1, A2-s1,d0. The glass wool core of the tiles is tested and classified as non-combustible according to EN ISO 1182.
Standard	To EN 13964:2014.
Constant humidity resistance	To EN 13964:2014, Class A, relative humidity 70% and 25°C.
