Solid Wall Lintels

Name: Solid Wall Lintels
Brand: IG Lintels
SKU: 66ed3Q6H2YqANBjKZKAPhJ

IG Lintels

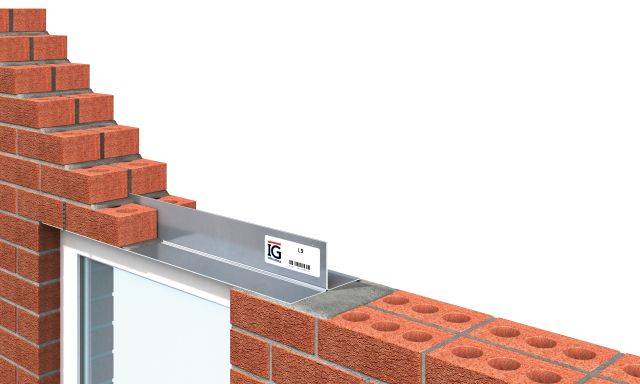

Steel lintels designed to provide support within solid wall constructions.

Jump to:

+44 (0)1633 486486 www.iglintels.com

Description

IG Solid wall lintels are manufactured from pre-galvanized carbon steel to BS EN 10346: 2009 DX51D plus Z600 or grade Z275 to BS 5977-2: 1983 (BS EN 845-2: 2003). There is a minimum galvanized zinc coating of 600 g/m² (including both sides).

General information

Material	Galvanized steel To BS EN 10346: 2009. Stainless steel Grade 1.4307 to BS EN 10088-2. Other grades available on request: contact manufacturer.

Uniclass	Pr_20_85_48_11 Carbon steel lintelsPrimary
CAWS	F30/755 Prefabricated steel lintels F30/85 Prefabricated steel lintels

Specification data - Carbon steel lintels

Product Reference	Solid Wall Lintel
Type	I BEAM (2C) For 215 mm solid wall. Heavy duty load. I BEAM (3C) For 215 mm solid wall. Extra heavy duty load. INT 100 For 100 mm solid wall. Standard load. L9 For 215 mm solid wall. Standard load. L9/SW 100 For 100–150 mm solid wall. Standard load. XHD I BEAM For 215 mm solid wall. Extreme duty.
Material	Galvanized steel To BS EN 10346: 2009. Stainless steel Grade 1.4307 to BS EN 10088-2. Other grades available on request: contact manufacturer.
Length	As drawing As schedule

Product Options	Length: INT 100: 900, 1050, 1100 or 1200 mm. L9 and L9/SW 100: 600–2700 mm (in 150 mm increments). I BEAM (2C): 600–3000 mm (in 150 mm increments). I BEAM (3C): 600–4800 mm (in 150 mm increments). XHD IBEAM: 600–6600 mm (in 150 mm increments). Technical characteristics: For Uniformly Distributed Load (UDL) figures, height and thickness of lintel ranges, consult manufacturers literature for details. Special lintels: All IG lintel profiles can be manufactured with a feature plate. Consult manufacturer for further details.
