Solid Surface Washtrough

Verified by manufacturer 4 months ago

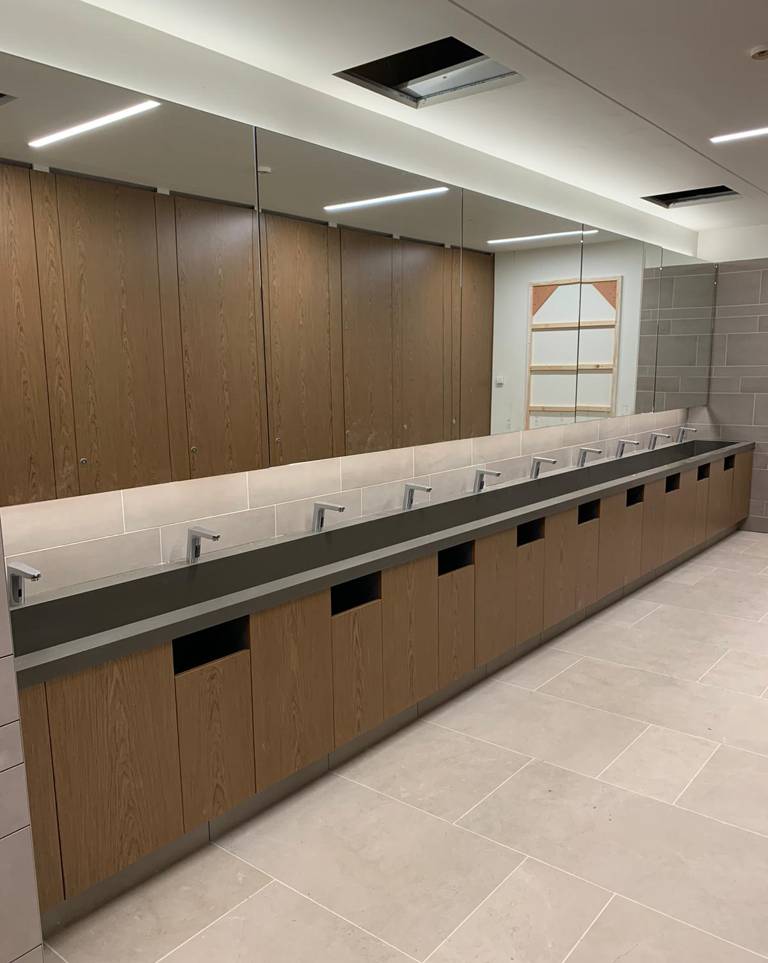

Solid Surface Washtrough with Cantilever brackets

Sylan Variant:

Hard-wearing and easily repairable solid surface wash trough.

Jump to:
+44 (0)1763 276200 Website

Application

Suitable for commercial washrooms. Can also be used for split-level vanity units and countertops in leisure facilities, retail and high-end commercial washrooms.

Description

Washtrough in solid surface, available in 12 colour options.


Durable, flexible and delivering a smooth finish. Manufactured from an advanced composition of minerals and acrylic polymer, Sylan solid surface material is renowned for its exceptional durability. Washtroughs come with a choice of underframe support, or can be wall hung with stainless steel cantilever brackets.


Available in 12 colour choices, Solid Surface washtroughs provide an eye-catching natural stone appearance.


Features and benefits:

  • Mineral and acrylic polymer material.
  • Hard-wearing and easily repairable.
  • Flexible, stylish yet economical washroom solution.
  • Consistency of colour finish throughout.
  • Multiple configurations available.
  • Choice of underframe support or wall hung with stainless steel cantilever brackets.
  • Available in 12 different colour choices.

General information

Color

Other

Guidance for specification option:

Colour to be confirmed from Sylan standard colour range.

Finish

Smooth

Material

Acrylic

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_40_20_96_99 Wash troughsPrimary

CAWS

N13/335 Washbasins

N10/145 Vanity and washroom furniture

N13/30 Washbasins

Specification data - Wash troughs

Form

Wall-mounted.

Stations

Two.

Materials

-

Body

13 mm thick 100% acrylic solid surface material.

Guidance for specification option:

Bonded to suitable substrate.

Finish and colour

Guidance for specification option:

Insert requirements. Colour to be confirmed from Sylan standard colour range.

Size

Guidance for specification option:

Insert requirement.

Maximum 3000 mm un-jointed lengths subject to site access (longer  troughs are supplied as multiple troughs butted up on site).

Water supply, overflow and waste holes

-

Water supply

One tap hole in backplate at each user position.

Guidance for specification option:

Complete with cut outs for deck mounted taps (subject to tap details supplied by client). Also available without cut outs for wall mounted taps.

Overflow

None.

Waste

Outlet at each user position.

Integral accessories

Guidance for specification option:

Brassware and silicone sealant by others.

Flashgap

Not applicable.

Flashgap

Not applicable.

Manufacturer guidance

Flashgap colour.

Edge profile

Visible front edge 250 mm.

Guidance for specification option:

Bonded to provide an invisible seam.

Manufacturer guidance

Front profile.

Underpanel

Not applicable.

Underpanel

Not applicable.

Manufacturer guidance

Underpanel colour.

Edge treatment

Not applicable.

Support

Powder coated aluminium cantilever brackets.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom
