Solid Sports Wall Panel

Verified by manufacturer 2 days ago

DYNAMIK Sports Flooring Third party certifications:
  • FSC

    FSC

    Certificate type

Solid high-impact sports wall panels for sports halls, arenas, stadiums, leisure centres and fitness spaces with hidden fixings for easy install.

Jump to:
+44 (0)117 301 5120 Website

Application

  • Suitable for use in sports hall environments.
  • Insulation must be placed behind the perforated panels to achieve required acoustic values (consult manufacturer for details).
  • A minimum void of 25mm is required behind perforated panels in order to achieve Class C acoustic performance.
  • The panels are typically fixed to timber horizontal battens at 400mm centres which are packed level without undulation or steps.
  • Studwork or the supporting structure must be free of flex and movement.
  • Panels are installed using the supplied secret clips to ensure a consistent 7mm spacing between adjoining panels.
  • The secret clips must be fully supported by the horizontal battens.
  • The secret clips are to be placed into the pre-routed edges to leave the appearance of a fixture-free installation.
  • The relevant fixing for the substrate must be used.

Description

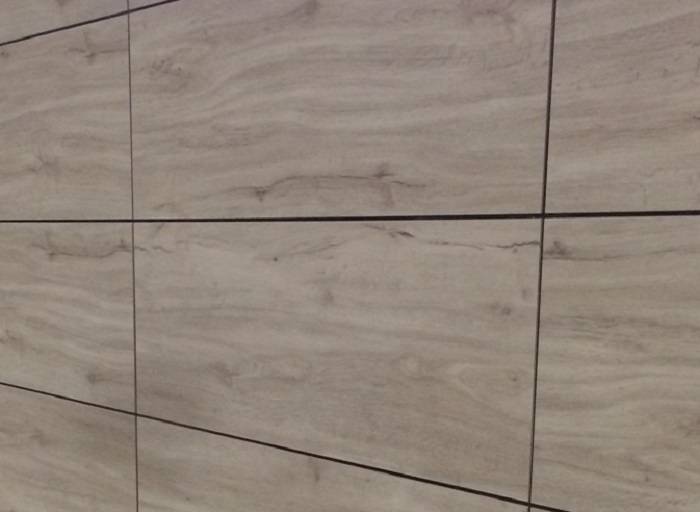

Solid sports wall panels, available in a range of colours and wood effects to provide a modern appearance to sports hall environments.


Features and benefits:

  • Durable and impact resistant; can be combined with Acoustic (Perforated) Wall Panels from floor to soffit.
  • Provides impact resistance from balls, equipment and hall users.
  • Time and cost effective. The structural integrity of the panels enables them to be installed as an independent wall system, fixed directly onto studwork.
  • Factory finished with a low-maintenance, UV-resistant, durable surface that requires no re-finishing.
  • Supplied with secret clip fixings that provide fast and easy panel installation and eliminate unsightly surface fixings, whilst maintaining consistent 7 mm spacing between adjoining boards.
  • A black acoustic shadow membrane is placed over the studwork to hide the gap between the panels and make the black metal brackets 'invisible'.
  • The Solid Sports Wall Panels can be used in conjunction with the Acoustic (Perforated) Sports Wall Panels to provide a continuous flush wall finish.
  • Fire rated to comply with Building Regulations, Sport England and the Department of Education.
  • The panels can be fixed to metal or timber studwork at 400 mm centres.


System includes:

  • 18 mm MDF panels finished with a melomine laminate and routed around all edges.
  • Black secret fixing clips designed to sit in the routed edges to provide a consistent 7 mm spacing between panels.
  • Black acoustic shadow membrane to sit behind panels and fixings.
  • Plywood to be FSC certified.
  • MDF fire-rated to Class B-s1,d0.

General information

Color

Manufacturer guidance

Available in a range of colours and wood effects, consult manufacturer for details.

Material

Wood

Guidance for specification option:

Engineered board.

Shape

Rectangle

Length

2400 mm

Width

592 mm

1200 mm

Height

18 mm

Uniclass

Ss_25_25_45_70 Rigid sheet wall lining systemsPrimary

CAWS

K13/160 Proprietary

K13/170 Acoustic panel lining

Specification data - Rigid sheet wall lining systems

Support

Rigid SFS or batten Framework at 400 mm vertical centres.

Insulation

50 mm insulation for acoustic panels only to achieve Class C performance.

Fasteners

Secret clips fixed to the SFS or batten framework.

Colour

Anthracite.

Ash.

Bavarian Beech.

Beau Oak.

Birch.

Show more

FireRating

Class B-s1,d0.

Fixing

To metal vertical studwork.

To timber vertical studwork.

Board size

2400 x 1200 x 18 mm.

2400 x 592 x 18 mm.

Sustainability data

Country of material origin

United Kingdom
