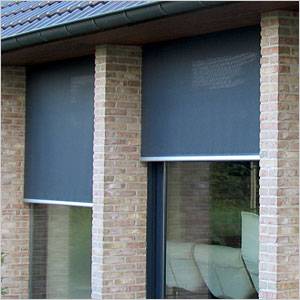

Solar Shading External Roller Blind Miniscreen®
Description

Roller blind for exterior solar shading or internal use.

  • Reduces solar heat gain when located externally.
  • Headbox or direct bracket fix.
  • Edge profiles or tensioned guide wires.
  • Electrical or manual operation.
  • Choice of screen fabric with variable open area.
  • Can provide partial outward view when lowered, subject to choice of textile.
  • Height (maximum): 4 m. Related to headbox and other factors.
  • Width (maximum): 3.8 m. Related to headbox and other factors.

General information

Uniclass 2015

Pr_30_59_07_72 Roller blindsPrimary

CAWS

L10/59 Solar shading system

L10/680 Solar shading system

N10/240 Blinds

Specification data - Roller blinds

Product Reference

Solar Shading External Roller Blind Miniscreen®

Location

Exterior

Interior

Dimensions of recess (w x h)

___ x ___ mm

Installation

Direct bracket fix

Headbox 63

Overall width (maximum): 2 m. Overall height (maximum): 3 m. Headbox (d x h): 63 x 63 mm.

Headbox 83

Overall width (maximum): 3.4 m. Overall height (maximum): 3 m. Headbox (d x h): 83 x 83 mm.

Headbox 100

Overall width (maximum): 3.8 m. Overall height (maximum): 4 m. Headbox (d x h): 63 x 63 mm.

Operation

Electric

Manual

Guides

Side channels, aluminium

Wires, tensioned

Blind bottom edge

Bottom bar, aluminium

Reinforced textile loop

Finish (aluminium components)

Polyester powder coating, RAL colour ___, sheen ___ %

60–70 µ.

Screen fabric

-

Type

Blackout glass fibre Opaque Classic 13137

External or internal use.

Blackout glass fibre Opaque Classic 21154

External or internal use.

Blackout polyester Soltis B92

Glass fibre Screen Sergé

External use.

Polyacrylic Dickson Orchestra

External use.

Polyacrylic Swela

External use.

Polyester Soltis 86

External use.

Polyester Soltis 92

External use.

Polyester Soltis 93

External use.

Orientation

Side 1 to exterior

External blind; top side of textile as outside view.

Side 2 to exterior

External blind; under side of textile as outside view.

Side 1 to interior

Internal blind; top side of textile as inside view.

Side 2 to interior

Internal blind; top side of textile as inside view.

Standard product features

Screen fabric:

  • Textiles may be mechanically, thermally or ultrasonic mechanically cut.
  • Textiles may be horizontally seamed thermally or high frequency welded.
  • Consult supplier for available colours and weaves.

– Blackout glass fibre, Opaque Classic 13137:

  • Yarn PVC coated 67 %.
  • Openness factor: 0 %.
  • Fire resistance: M1.
  • Weight (approximate): 800 g/m².
  • Width: 1400 mm, dependent on colour.
  • Choice of 6 colourways.

– Blackout glass fibre, Opaque Classic 21154:

  • Yarn PVC coated 67 %.
  • Openness factor: 0 %.
  • Fire resistance: M1.
  • Weight (approximate): 800 g/m².
  • Width: 1400 mm, dependent on colour.
  • Choice of 4 colourways.

– Blackout Polyester, Soltis B92:

  • Textile pretensioned and PVC coated.
  • Fire resistance: M2.
  • Weight (approximate): 650 g/m².
  • Good dimensional stability.
  • Width: 1700 mm.

– Glass fibre, Screen Sergé:

  • Yarn PVC coated 58 %.
  • Openness factor: 5 %.
  • Fire resistance: M1.
  • Weight (approximate): 525 g/m².
  • Width: 1350–2700 mm, dependent on colour.
  • Choice of 50 colourways.

– Polyacrylic:

  • Tight weave with no view-through.
  • Treated with water repellent coating.
  • Good UV resistance.
  • Width (approximate): 1200 mm.

– Polyester, Soltis 86:

  • Textile pretensioned and PVC coated.
  • Fire resistance: M1.
  • Weight (approximate): 380 g/m².
  • Good dimensional stability.
  • Width: 1770 mm.

– Polyester, Soltis 92:

  • Textile pretensioned and PVC coated.
  • Fire resistance: M1.
  • Weight (approximate): 420 g/m².
  • Good dimensional stability.
  • Width: 1770 mm.

– Polyester, Soltis 93:

  • Textile pretensioned and PVC coated.
  • Fire resistance: M1.
  • Weight (approximate): 420 g/m².
  • Good dimensional stability.
  • Width: 2700 mm.

Literature
Third party certifications
  • Von Karman Institute: Certificate: EAR 0410 : Wind tunnel tests
  • WTCB: Certificate: 651 XE823 CAR4139 : Durability tests
