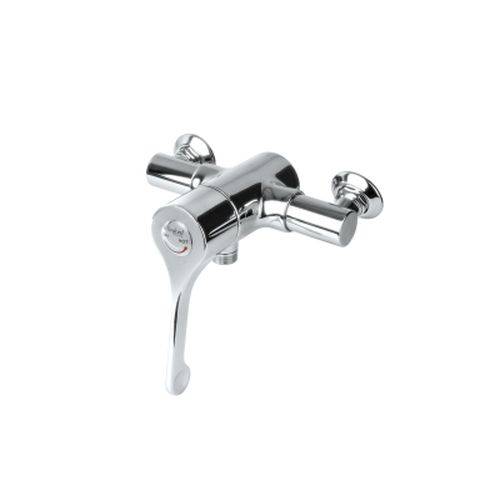

Sola Thermostatic Exposed Shower Valve

Verified by manufacturer over a year ago

Twyford Bathrooms

Thermostatic shower valve with exposed valve bottom outlet.

Jump to:
+44 (0) 1926 516 800 Website

Application

  • Commercial and residential areas.
  • Hotels.
  • Healthcare service.
  • Less able.
  • Education.

Suitable for use with:

  • Unvented supplies.
  • Combi boilers.
  • Gravity and mains pressure systems.

Description

Thermostatic shower valve with exposed valve bottom outlet.

Features and benefits:

  • Antiscald failsafe technology.
  • Thermostatic control.
  • Ergonomic operation.
  • Compatible with shower rails SF1256CP and SF1261CP (specified separately).

Applications:

  • Commercial and residential areas.
  • Hotels.
  • Healthcare service.
  • Less able.
  • Education.

Suitable for use with:

  • Unvented supplies.
  • Combi boilers.
  • Gravity and mains pressure systems.

General information

Uniclass

Pr_40_20_87_81 Shower thermostatic water supply setsPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Showers

Specification data - Shower thermostatic water supply sets

Product Reference

SF1136CP

Guidance for specification option:

Sola Thermostatic Exposed Shower Valve Bottom Outlet

SF1135CP

Guidance for specification option:

Sola Thermostatic Exposed Shower Valve top Outlet

Standard product features

Size (h x w x d):

138 x 194 x 155 mm.

Colour/ Finish:

Chrome plated.

Weight:

2.02 kg.

Technical characteristics:

  • Flow rate: 0.5 bar: 8.4 L/min; 5 bar: 23.9 L/min.
  • Maximum inlet pressure static: 10 bar.
  • Maximum recommended dynamic pressure: 5 bar.
  • Minimum operating pressure dynamic: 0.2 bar.
  • Maximum unbalanced pressure ratio: 5:1.
  • Inlet connections: 15 mm.
  • Outlet connections: ½" BSP.
  • Maximum inlet temperature: 85°C.
  • Pre-set factory temperature setting: 38°C.
  • Minimum temperature differential to ensure failsafe between hot and cold supplies: 10°C.
