Description

A 500 x 400 mm wall fixed wash basin designed for use as a general basin in hospitals and medical centres.

To be specified with Twyford Washbasin Water Supply Fittings, Waste and Trap.

General information
Size

400 x 500 x 240 mm

Color

White

Material

Vitreous china

WarrantyDescription

25 years Ceramic products (excluding accessories and fittings), steel and acrylic baths

Uniclass 2015
Wall-hung washbasins (Pr_40_20_96_96)Primary
Specification data - Wall-hung washbasins
Product Reference

Sola Medical 500, ref SA4250WH

No tap holes.

Sola Medical 500, ref SA4255WH

One right hand tap hole.

Sola Medical 500, ref SA4256WH

One left hand tap hole.

Sola Medical 500, ref SA4251WH

One centre tap hole.

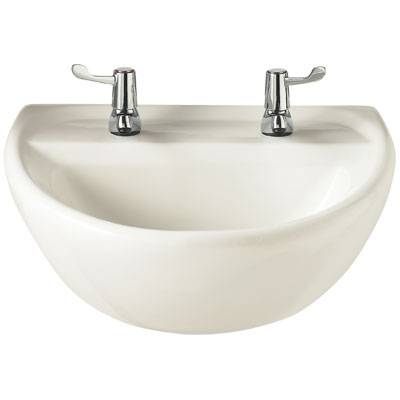

Sola Medical 500, ref SA4252WH

Two tap holes.

Tap/ Chainstay/ Overflow holes

No tap hole with no overflow

One right hand tap hole with no overflow

One left hand tap hole with no overflow

Two tap hole with no overflow

Accessories

None

Pedestal ref: VW4910WH

Wall brackets (pair), ref SR1015XX

Wall supports (pair), ref SR1018XX

Standard product features

Basin:

  • Size: 500 x 400 mm.
  • Material: Vitreous china.
  • Colour: White WH.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 1 1.3
Download now from NBS National BIM Library
