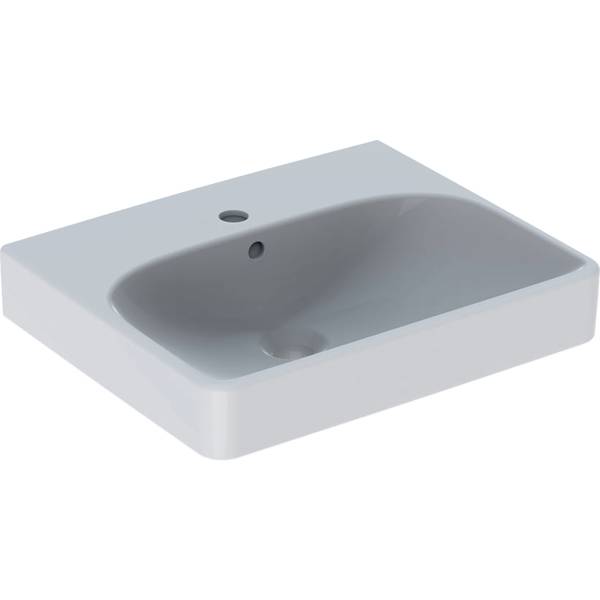

Smyle Square Handrinse Basin
Verified by manufacturer over a year ago
Square handrinse basin.
Description
Smyle Square handrinse basin.
Features and benefits:
- Can be installed with a washbasin cabinet.
- Can be combined with half or full pedestal.
General information
Color | White |
Material | Vitreous china |
Shape | Rectangle |
Length | 410 mm |
Width | 500 mm |
Height | 160 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Wall-hung washbasins
Standard | To BS EN 14688. |
Form | Wall-hung wash basin. |
Materials | |
Body | Vitreous china to BS 3402. |
Finish and colour | White. |
Size | 500 x 410 mm. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, centred. |
Overflow | Visible hole. |
Waste | Bottom waste outlet. |
Furniture | Not required. 500.363.00.1, Smyle Square cabinet for handrinse basin, RH door, white/ high-gloss coated. 500.363.JK.1, Smyle Square cabinet for handrinse basin, RH door, lava/ matt coated. 500.363.JL.1, Smyle Square cabinet for handrinse basin, RH door, sand grey/ high-gloss coated. 500.363.JR.1, Smyle Square cabinet for handrinse basin, RH door, hickory/ wood-textured melamine. |
Accessories | None. 151.039.21.1, Bottle trap with dip tube for washbasin, connector BSP, horizontal outlet, gloss chrome-plated. 152.050.21.1, Waste outlet with free outlet and valve cover, 5 cm. 152.080.21.1, Waste outlet with free outlet and valve cover, 8 cm. 500.055.00.1, Waste outlet, space-saving model, slim design, with external waste plug with push actuation. |
Fixings | 500.121.00.1, Fastening material for washbasin. |
Pedestal | Not required. 501.476.00.6, Selnova Square full pedestal, white. 500.576.01.1, Smyle half pedestal, white. |
