Description

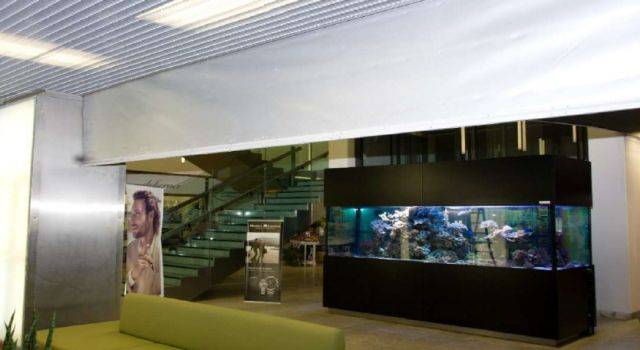

Smokebarrier rolling curtains are designed to restrict the lateral spread of smoke and hot gases along the underside of a roof, ceiling or balcony within a building in the event of a fire. They are used as part of a smoke control system to create smoke reservoirs from which smoke and hot gases can be extracted, or to stop the spread of smoke, allowing valuable time for occupants to escape.

The smoke curtains have been successfully tested to meet the requirements of BS EN 12101-1 (D120), and are supplied with a gravity failsafe system, ensuring closure in the event of power failure. They are available in wide spans and can be face-fixed, soffit-fixed or suspended on rods.

Features and benefits:

  • Curtain: constructed from specially coated grey fibreglass material, tested to withstand temperatures of up to 600˚C.
  • Bottom rail: the lower edge of the curtain incorporates a triangular steel section to act as a weight bar.
  • Endplates: fabricated from galvanized steel of adequate thickness, relative to curtain size onto which the tube is fixed.
  • Casing: the casing is manufactured from galvanized steel, and is 158 x 150 mm for single curtains and 252 x 150 mm for multiple curtains.
  • Side guides: the curtain is also available with side guides should there be a requirement that the curtain falls to floor level, or where an increased pressure differential is envisaged.
  • Operation: electrical operation is by means of a 240 V tubular motor mounted inside the barrel. A control panel is provided at high leve,l and operates up to ten curtains. Closure in a fire condition is via gravity with a controlled descent. A single-phase socket is required within one metre of the control panel position.
  • Fire activation: in a fire condition, activation is initiated by an incoming signal from the fire alarm system.

General information
Size

Bespoke; consult manufacturer for details and insert requirements.

Finish

Galvanized

Standard.

Polyester powder-coated, RAL

Optional.

Uniclass 2015 Roller shutters (Pr_30_59_84_73)
Specification data
Product Reference

Smokebarrier D120 Curtain

Size

Bespoke; consult manufacturer for details and insert requirements.

Finish

Galvanized

Standard.

Polyester powder-coated, RAL

Optional.

Fixing -
Box detail

Face-fixed

Soffit-fixed

Suspended

Side guide

Face-fixed

Fixed in-between

Accessories/ Other requirements

Audible and/ or visual alarms

Side guides

Two-stage closing

Standard product features

Curtain:

  • Thickness 0.4 mm (approximately).
  • Weight: 455 g/m².

Weight:

Approximately 20 kg per linear metre of width.

Product Options

Size (w x h, maximum):

Unlimited width x 6 m.

Finish:

Galvanized as standard. The casings and bottom rails are also available in a polyester powder-coated finish in a range of standard RAL colours at extra cost.
