Description

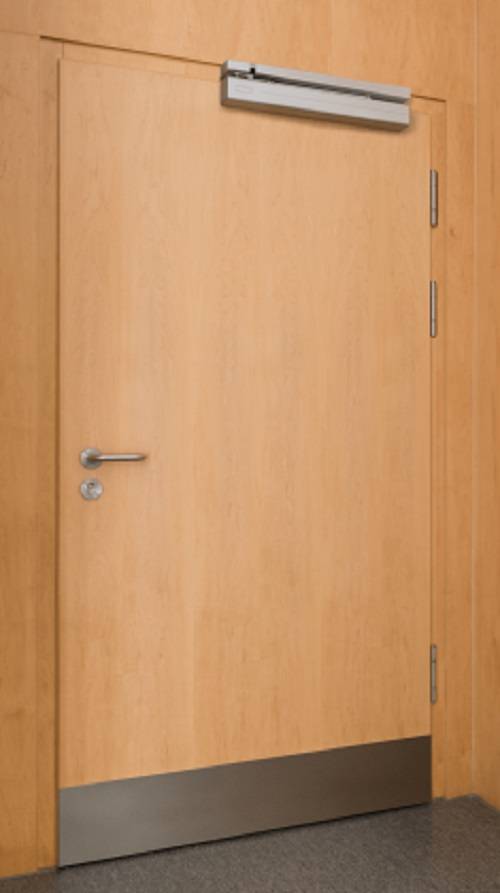

Single leaf, single action timber doorset designed for use in a health environment such as a typical treatment room or bedroom application. It has high durability and includes a kick plate.

General information
Uniclass 2015
Wood doorsets (Pr_30_59_24_97)Primary
Specification data - Wood doorsets
Product Reference

SMARTec Door Four

Structural opening size

700 x 2100 mm

800 x 2100 mm

900 x 2100 mm

1000 x 2100 mm

1100 x 2100 mm

As drawing

As schedule

FireRating

Non-Rated

40 mm doorset thickness.

30 minutes

40 mm doorset thickness.

60 minutes

54 mm doorset thickness.

FrameDepth

75 mm

96 mm

100mm

110mm

121mm

128mm

147mm

150mm

160mm

170mm

180mm

200mm

250mm

Finish -
Finish

Ash veneer

Beech veneer

Koto veneer

Maple veneer

Oak veneer

Sapele veneer

Formica Laminate Matte 58

NCS Factory paint finish

Vision panel -
Type

Type 4

407 x 407 mm.

Vistamatic V1

407 x 407 mm.

Vistamatic V2

253 x 803 mm.

Glazing thickness

6 mm clear toughened (non fire)

11 mm clear Contraflam Lite (all fire rated)

12 mm Stadlip (all acoustic)

Handle

ScanFlex 95 44 95 Nordic U

Standard.

ScanFlex 95 45 03 Nordic L

ScanFlex 95 45 20 Copenhagen lever handle

Closer

DC500A CAM-motion

DC700A CAM-motion

Doorstop

ScanFlex 95 45 06

Floor door stop.

ScanFlex 95 45 07

Floor door stop.

ScanFlex 95 45 08

Wall door stop.

ScanFlex 95 45 45

Wall door stop.

Accessories

None

ASSA ABLOY signage, male symbol

ASSA ABLOY signage, female symbol

ASSA ABLOY signage, disabled symbol

ASSA ABLOY signage, fire door keep shut

ASSA ABLOY signage, automatic fire door keep clear

Standard product features

Hinge:

3228.

Acoustic rating:

  • Unrated and 30 minutes fire rated: 30 dB.
  • 60 minutes fire rated: 35 dB.

Locking:

Assa modular lock and flushbolts, P600 cylinder.
