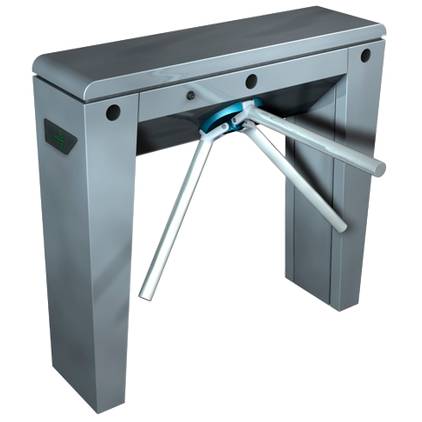

Tripod turnstile for internal or external Installation.
Suitable for areas where there is a large flow of people:

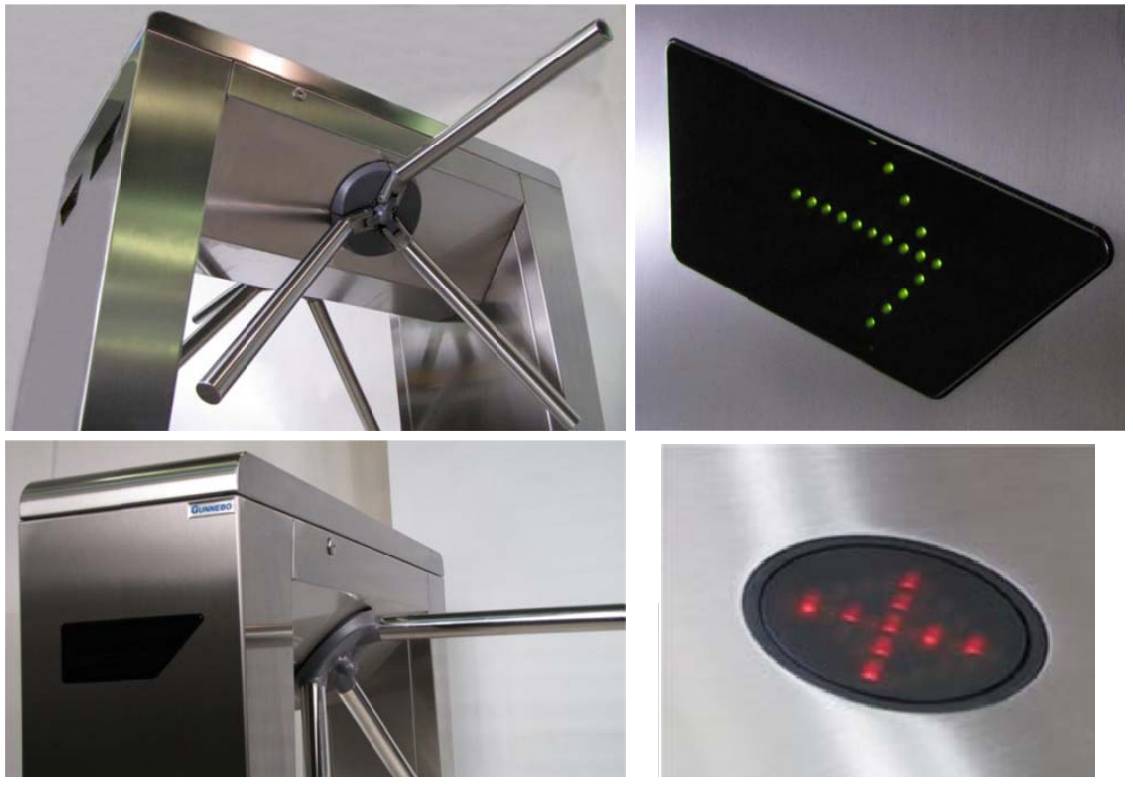

A compact and cost-effective entrance solution designed for smooth and silent operation, low wear and tear and reduced power consumption. On receiving a signal from the access control system or push button, it allows the passage of one person at a time. The status is shown on the LED way mode indicators, in entry and exit side.
Passage in both directions is electronically controlled. It is available in normally closed (N/C) configuration to lock the mechanism until a valid authorization signal is received, or in normally open (N/O) configuration to lock the mechanism in the event of attempted unauthorized entry. The N/O configuration also allows reduced power consumption and increases the life of the mechanism and passage throughput speed. In case of emergency, the hub can freely rotate to allow an easier exit. The drop arm option can also be chosen which automatically drops the horizontal arm to allow free passage. LED way mode indicators are included as standard.
Features and benefits:
304 Grade stainless steel.
750 x 1004 x 950 mm
L20/500 Manual revolving doors
SlimStile EV - ATT
For SlimStile EV only.
Drop arm hub assembly.
Static arm hub assembly.
Casework/ lid material
Grade 1.4301 (304) grained stainless steel.
Grade 1.4401 (316) grained stainless steel.
For SlimStile EV Single only.
Apron infill - glass.
Apron infill - steel.
Card reader mounting.
Coin acceptor application.
For SlimStile EV only.
Push button control.
Remote control MP2000.
Ingress protection (IP) rating
38 x 480 mm.
Tripod arms size (diameter x length).
LL2001Lite microprocessor control logic.
20–40 passages per minute.
Dependant on access reader.
Operating temperature range
-5 to +50°C
At 95% relative humidity (RH) non-condensing.
Ten million cycles.
Mean cycle between failure (MCBF): 12 million cycles if normally open.
