SlimStile BA Lite

Name: SlimStile BA Lite
Brand: 7BegNKAFR3vyUocaQdHvh6
SKU: 4Wy7cVYKi6aPfBx9UB54T4

Gunnebo UK Ltd

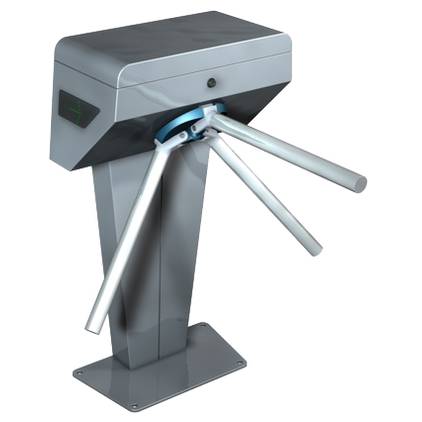

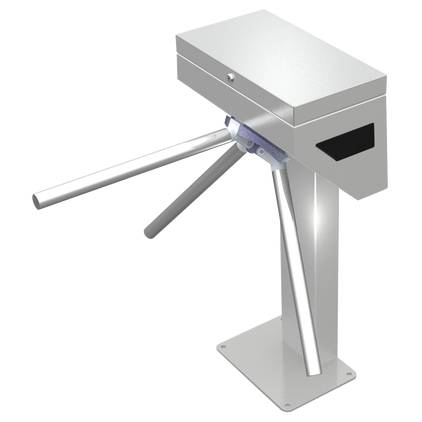

Pedestal mounted tripod turnstile for internal installation.

Jump to:

+44 (0)1902 455111 www.gunnebo.co.uk

Application

Suitable for areas where there is a large flow of people:

Government.

Retail.

Finance.

Telecommunications.

Banking.

Publishing.

Leisure and entertainment.

Petrochemical.

Education.

Public toilets.

Description

A compact and cost-effective pedestal mounted stainless steel and aluminium tripod turnstile with a small footprint. It is easy of use, reliable and robust. Passage in both directions is electronically controlled. Direction is shown clearly to users with indicators. Unit locking prevents simultaneous passage by two people.

Features:

Pedestal mounted.

Ease of use.

Reliability, robustness.

Bi-directional passage; electronically controlled.

CE marked.

Applications:

Suitable for areas where there is a large flow of people:

Government.

Retail.

Finance.

Telecommunications.

Banking.

Publishing.

Leisure and entertainment.

Petrochemical.

Education.

Public toilets.

General information

Features	Pedestal mounted Ease of use Reliability, robustness Bi-directional passage; electronically controlled CE marked
Material	Casework: Galvanized painted steel 430 Casework lid: Grade 1.4301 (304) stainless steel Tripod hub: Cast aluminium with painted grey finish Tripod arms: Grade 1.4301 (304) stainless steel with welded end caps
Uniclass 2015	Pr_30_59_34_88 Stainless steel half-height turnstilesPrimary
CAWS	L20/500 Manual revolving doors Q50/160 Turnstile

Specification data - Stainless steel half-height turnstiles

Product Reference

SlimStile BA Lite

Passage configuration

Drop arm hub assembly

Static arm hub assembly

Accessories

None

Electro-mechanical counter

Surface mounted card reader drilling

Way mode indicator

Standard product features

Total size (h x w x l):

950 x 530 x 788 mm.

Tripod arms size (diameter x length):

38 x 480 mm.

Weight (approximate):

40 kg.

Material:

Casework: Galvanized painted steel 430.

Casework lid: Grade 1.4301 (304) stainless steel.

Tripod hub: Cast aluminium with painted grey finish.

Tripod arms: Grade 1.4301 (304) stainless steel with welded end caps.

Mounting:

Pedestal.

Drive:

Hand-operated, bidirectional.

Mechanism:

Electro-mechanical head mechanism:

Positive locking action for one passage at a time.

Self-centering mechanism to ensure complete rotation into the home position.

Anti-backup device to prevent reverse rotation once the mechanism has moved 60° from home.

Interface:

LL2001Lite microprocessor control logic:

One input for opening/ locking in each direction.

Two protected outputs controlling opening/ locking.

Four protected outputs piloting way mode indicators.

Two protected outputs counting passage in either direction.

Two output voltage (OV) output relays indicating availability of use or counting passage in either direction.

Two open collector NPN outputs to count passage or to indicate availability of use in either direction or activate the optional drop arm feature.

Serial port - RS485.

Power failure/ fire alarm:

Fire alarm - emergency input. Input facility available for free voltage contact to effect fail-state.

Mechanism fail state will be the same as power failure choice.

Technical characteristics:

Power supply: 230 V AC (50 Hz)/ 115 V AC (60 Hz).

Power rating: 50 VA (stand by 5 VA if normally open).

Operating temperature: -5 to +50°C (at 95% relative humidity (RH) non-condensing).

IP rating: IP44.

Mean cycle between failure (MCBF): 10 million cycles (12 million cycles if normally open).

Mean time to repair (MTTR): <30 minutes.

Flow rate: 40 passages/minute.

Product Options

Hub assembly options:

Drop arm option: In the event of an emergency or isolation of the power supply, the horizontal arm drops through to the vertical to allow free passage.

Static arm: In the event of an emergency or isolation of the power supply, the turnstile can either be configured to fail-safe (standard), i.e. rotates freely, or fail-lock, i.e. locks in the home position.
