Slimline Panorama design aluminium sliding door system - ASS 77 PD
Compare variants

Application

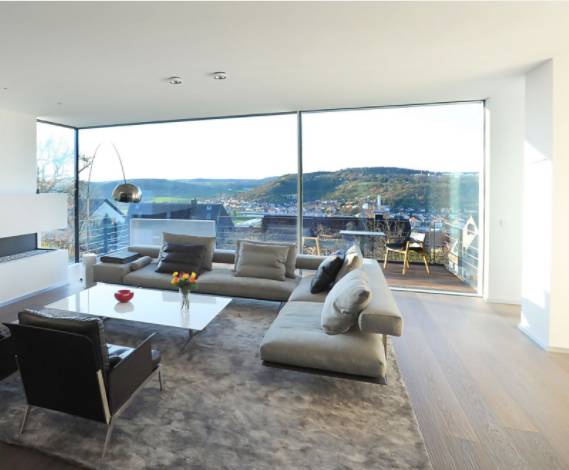

The panoramic design offers flexibility in planning, fabrication and installation suiting various applications.

Description

Sliding door system with minimal profile face widths from 37 mm in the interlock section and an outer frame and vent frame concealed in the attachment to building structure.


Automatic drive and lock technology are integrated, as are finger-trap protection and infrared light curtains embedded in the ceiling for monitoring the entrance area, offering security to resistance class 4.


Features and benefits:

  • Thermally insulated sliding system with maximum transparency and light penetration.
  • Touch-button operation, handle-free design with clean lines.
  • Guide rail system can be easily removed and the roller replaced without removing the moving vent.
  • Concealed, profile-integrated drive and locking system.
  • Straightforward fittings installation for cost-effective fabrication.
  • Manually-operated “unlocking for maintenance” in the event of a power cut.


Standards:

  • DIN EN 13115.
  • DIN EN 12400.
  • DIN EN 1670.
  • DIN EN ISO 10077-2.
  • DIN EN 12208.
  • DIN EN 12207.
  • DIN EN 12210.

General information

Material

Aluminium

Uniclass 2015

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/520 Sliding doors

Specification data - Sliding door and partition sets Enhanced data

Performance

Insulated.

Track system

Double track.

Operation

Manual.

Powered.

Execution

Installing hardware.

Product Reference

ASS77PD Panarama Design Double Track

Operating forces

To EN 13115, Class 1.

Durability Class

To EN 12400, Class 3.

Operating temperature

-20 °C to +50 °C.

Corrosion resistance

To EN 1670, Class 4.

Thermal insulation

To EN ISO 10077-2, from 1.0 W/(m²K).

Watertightness

To EN 12208, Class 8A.

Air permeability

To EN 12207, Class 4.

Wind load

To EN 12210, C3/B3.

Face width

From 37 mm.

In the interlocking section.

Glass thickness

Up to 60 mm.

Weight

Up to 500 kg.

Width

Large vent width.

1200–3200 mm.

Height

Large vent height.

1000–3500 mm.

Depth

77 mm.

Corners

90 degree corner features.

Symmetrical mullion view from outside, outer frame also available as non-insulated version, no corner mullion when open, concealed, profile-integrated drive and locking system, roller replacement without removing the moving vent, large vent dimensions up to 3200 mm in width and 3500 mm in height, high vent weights up to 500 kg.

Durability

Up to 1 million cycles.

Environmental information

Country of material origin

United Kingdom
