Slimfit Wall Metal Access Panel (EX01 Range) - Picture Frame - Non Fire Rated - Access Panel
Verified by manufacturer 2 months ago
Slimfit Metal Access Panel, Picture Frame, Non Fire Rated, Budget Lock as standard
Application
Suitable for use in jointless plasterboard wall and ceiling systems.
Description

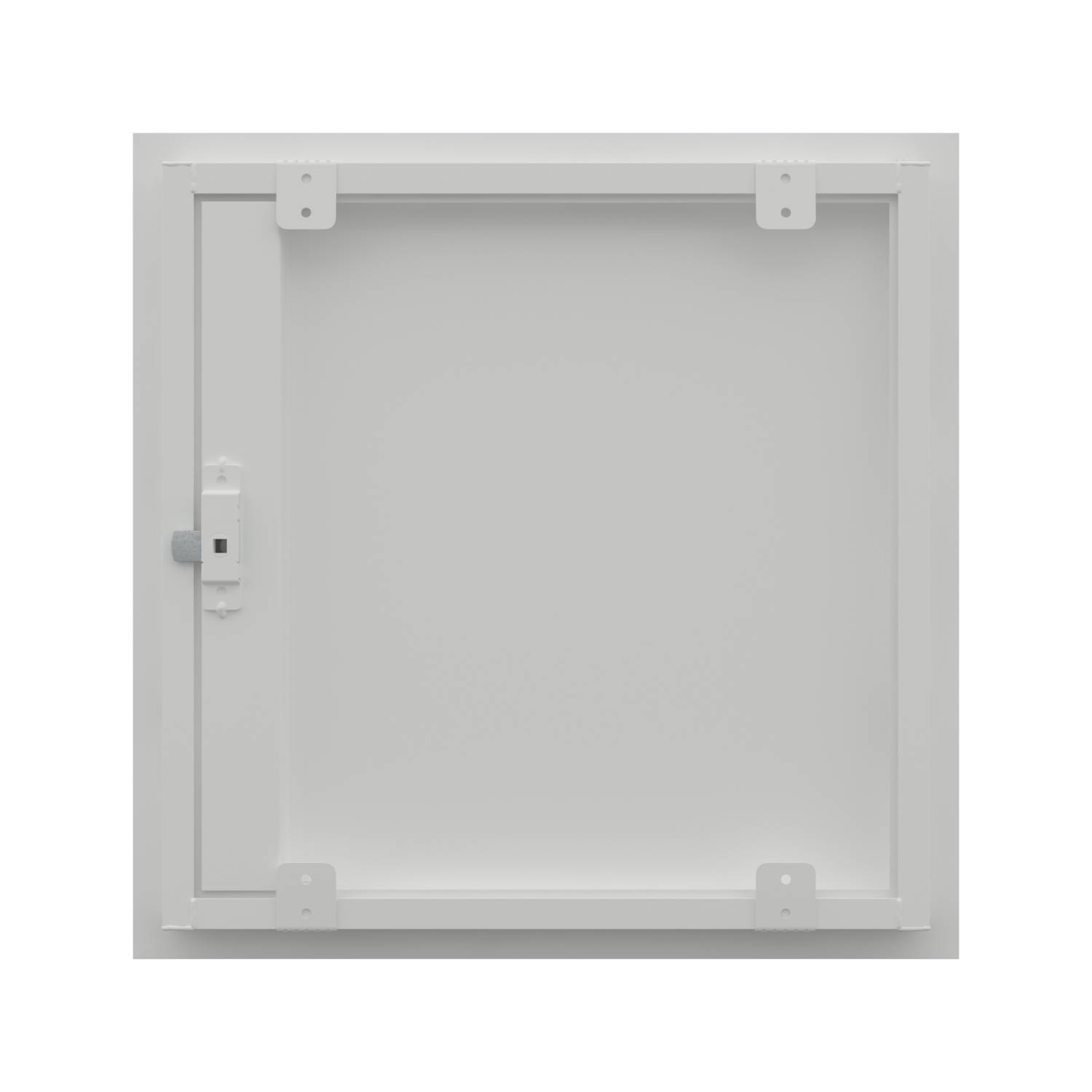

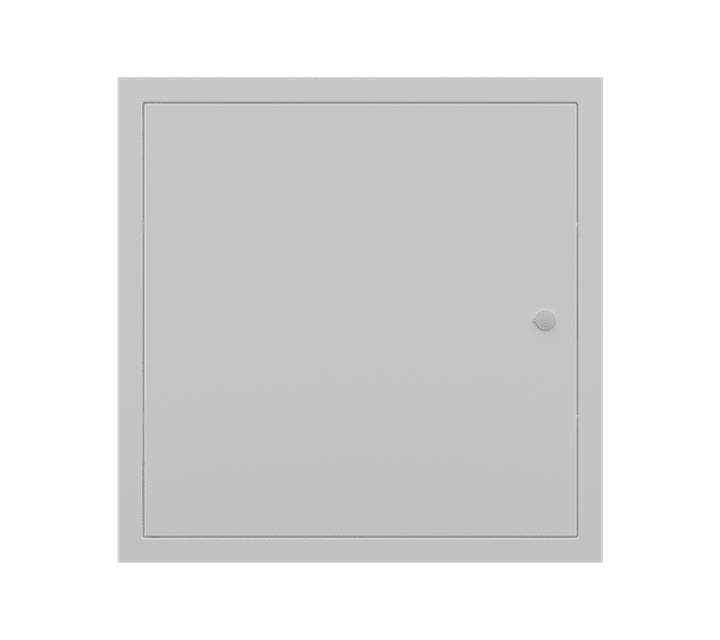

This panel is designed to fit into a structural membrane of a jointless plasterboard wall and ceiling system. It is manufactured with a 25 mm wide picture frame and has a metal faced door. The door leaf is locked in place via a budget lock as standard. Other lock options are available upon request. The panel is powder-coated RAL 9010 30% gloss. Other colours available upon request.
Features and benefits:
- Manufactured from Zintec steel with a 0.9 mm thick door and frame.
- The door leaf is hinged by a pin hinge system.
- This panel is available up to 1200 x 600 mm.
General information
Color | White |
Finish | Powder-coated |
Material | Steel |
Shape | Square Rectangle |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Specification data - Access panels
Position | Wall-mounted.Ceiling-mounted. |
Size | Manufacturer guidanceInsert requirements. |
Frame | Exposed picture frame type. |
Panel | |
Material | Steel. |
Integral finish | Powder-coated. |
Latch or lock type | Budget lock.Low Level Security Budget Lock.3 Way Lock.Touch Catch Medium Level Security IP65 - Key Retaining Tamper proof Lock.High Level Security Castellated Tamper Proof Lock.3 Way Euro Profile Cylinder Lock.Other.Guidance for specification option: Other lock options are available on request. Consult manufacturer and insert requirements. |
Colour/ Finish | RAL 9010, 30% gloss. Other. Guidance for specification option: Other colours are available on request. Consult manufacturer and insert requirements. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
