Slido Design 80-M

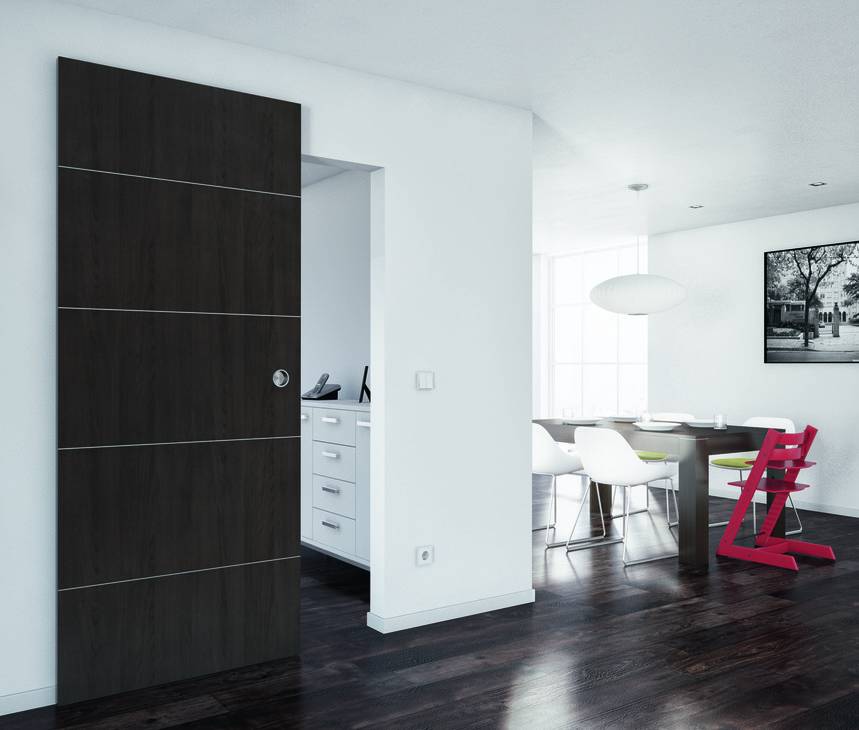

Complete Set, for 1 Sliding Interior Door, Slido Design 80-M

  • Allows wall mounted doors to slide across openings as if they were floating.
  • Unique design means all tracks and fixings are hidden.
  • Suitable for residential or commercial applications such as offices, meeting rooms or hotels.
  • Includes soft closing mechanism
  • Not suitable for bi-parting doors.

Application: Interior doors
Adjustment facility: Door to wall +4 mm (adjustment on both sides, for compensating uneven walls) Height adjustment ±2 mm
Installation: Screw fixing
Door weight: Max. 80 kg
Door width: 800-1800 mm
Door thickness: Min. 30 mm
Guarantee: 10 years

General information


Easy installation, low headroom application for more pleasing appearance


Zinc alloy, Plastic, Rubber


2000 mm

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary
Digital objects
PlatformCompatibleVersionCertified to
- 2 2.1
- 2 2.1
Download now from NBS National BIM Library
