Slido Classic 160-B
Description

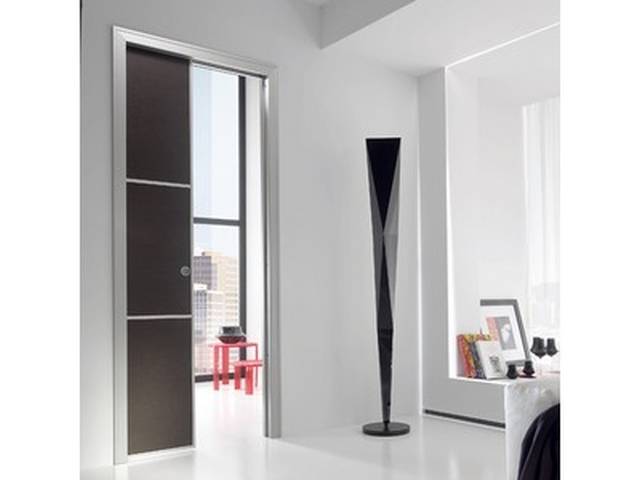

High quality pocket sliding door gear for residential and commercial applications. The unique design allows doors up to 55 mm thick to be installed with a finished wall of 100 mm. The kit can easily be cut to suit standard UK door sizes or large custom doors with the universal kit. Once cut to size the kit can be assembled in 10-20 minutes by a skilled installer.

Finish jambs are normally made by the door installer, but kits are available on request.

General information

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

Slido Classic 160-B

Fitting set

984.42.005

Doors 1981 mm high, widths of 686, 762, 838 or 926 mm.

984.42.006

Doors 2040 mm high, widths of 626, 726 or 826 mm.

984.42.007

Doors 2040 mm high, widths of 926 or 1026 mm.

984.42.008

Universal kit, doors up to 2500 x 1000 mm cut to 2100 x 600 mm maximum.

Standard product features

Materials:

  • Rails and profiles: Aluminium.
  • Trolley hanger: Aluminium and plastic.
  • Door buffer: rubber.
  • Floor guide: Plastic.

Door dimensions:

  • Weight (maximum): 160 kg, 80 kg with Softclose.
  • Height (maximum): 2500 mm.
  • Width (maximum): 1026 mm.
  • Door thickness: 30-55 mm.
