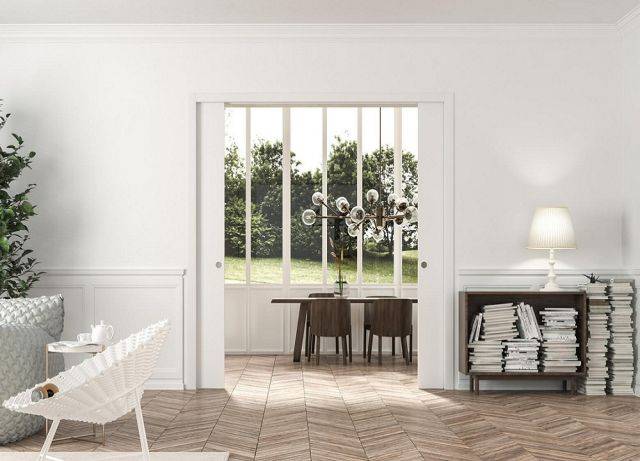

Sliding Pocket Door System with Glass Door Double
Description

A simple, functional, strong and reliable double sliding pocket door system. A large range is available for both UK standard size doors and made-to-measure systems (for doors up to 2 m wide and almost 3 m high).

Features:

  • The two pockets and track assemble together and are inserted into the stud work as a complete unit which helps to ensure the doors will run true and in line.
  • Door slides into the pocket in the wall.
  • Wide range of sizes to suit standard UK door sizes. Bespoke sizes available.
  • Door panels up to 100 kg (150 kg on request).
  • Suitable for use with 35 or 44 mm thick doors.
  • Doors, plasterboard and final architrave not included.
  • A wide range of glass pocket doors is available to suit the system – contact manufacturer for details.

Advantages:

  • Quick and easy to assemble and install.
  • Complete with full jamb kit for a professional finish.
  • Maintenance-free track and runners.
  • Fully extractable track, no need to break into the wall should you ever want to remove it.
  • Fully adjustable front and rear doorstop.
  • Self-centring floor guide with anti-warp profile.

General information
Size

See Options below and insert requirements.

Finish

Satin

Uniclass 2015
Pr_30_59_24_80 Sliding door and partition setsPrimary
CAWS

L20/520 Sliding doors

L20/525 Sliding pocket doors

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Sliding door and partition sets
Product Reference

Classic Sliding Pocket Door System – Double

Size

See Options below and insert requirements.

Finished wall thickness

100 mm

125 mm

Door furniture

OSO8

Polished brass simple flush pull.

OSC4

Antique brass simple flush pull.

OSC2

Polished chrome simple flush pull.

OSC1

Satin chrome simple flush pull.

Accessories

Not required

Double Door Coordination Kit

ECLISSE BIAS®

ECLISSE BIAS® DS

Soft close

Product Options

Size:

The following frame sizes (in mm) are available:

  • 2464 x 2056: To suit double 610 x 1981 mm doors. Clearance: 1170 x 1971 mm.
  • 2816 x 2056: To suit double 686 x 1981 mm doors. Clearance: 1322 x 1971 mm.
  • 2844 x 2056: To suit double 711 x 1981 mm doors. Clearance: 1350 x 1971 mm.
  • 3168 x 2056: To suit double 762 x 1981 mm doors. Clearance: 1471 x 1971 mm.
  • 3320 x 2056: To suit double 838 x 1981 mm doors. Clearance: 1626 x 1971 mm.
  • 3694 x 2056: To suit double 914 x 1981 mm doors. Clearance: 1800 x 1971 mm.
  • 3244 x 2105: To suit double 813 x 2032 mm doors. Clearance: 1550 x 2020 mm.
  • 3594 x 2105: To suit double 864 x 2032 mm doors. Clearance: 1700 x 2020 mm.
  • 2494 x 2115: To suit double 626 x 2040 mm doors. Clearance: 1200 x 2030 mm.
  • 2894 x 2115: To suit double 726 x 2040 mm doors. Clearance: 1400 x 2030 mm.
  • 3294 x 2115: To suit double 826 x 2040 mm doors. Clearance: 1600 x 2030 mm.
  • 3694 x 2115: To suit double 926 x 2040 mm doors. Clearance: 1800 x 2030 mm.
  • 4094 x 2115: To suit double 1026 x 2040 mm doors. Clearance: 2000 x 2030 mm.

Frames can be adapted to non-standard door sizes on request.

Accessories:

  • Double Door Co-ordination Kit: Doors open and close simultaneously.
  • ECLISSE BIAS®: Soft Close anti-slam device with 40 kg soft closing.
  • ECLISSE BIAS® DS: Bi-directional soft close up to 40 kg with anti-slam.
  • Soft close: Slide the door towards the close position and the soft close takes over.

Digital objects
PlatformCompatibleVersionCertified to
Vectorworks
- 1.0
ARCHICAD
- 1.0
Revit
Revit 2016 5 2.0
IFC
IFC2X3 4 1.3
IFC
IFC2X3 4 1.3
