Sliding Pocket Door System - Single

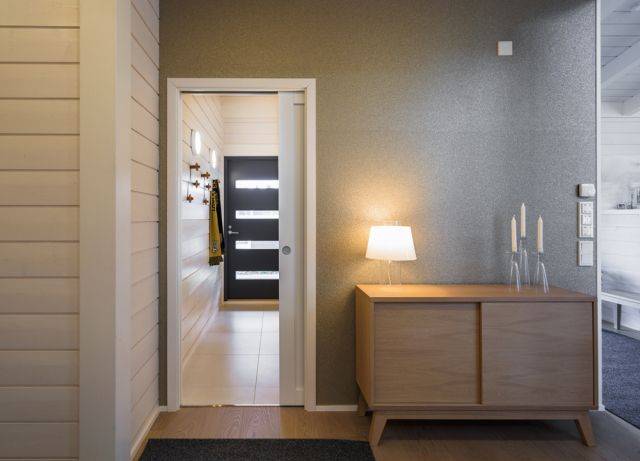

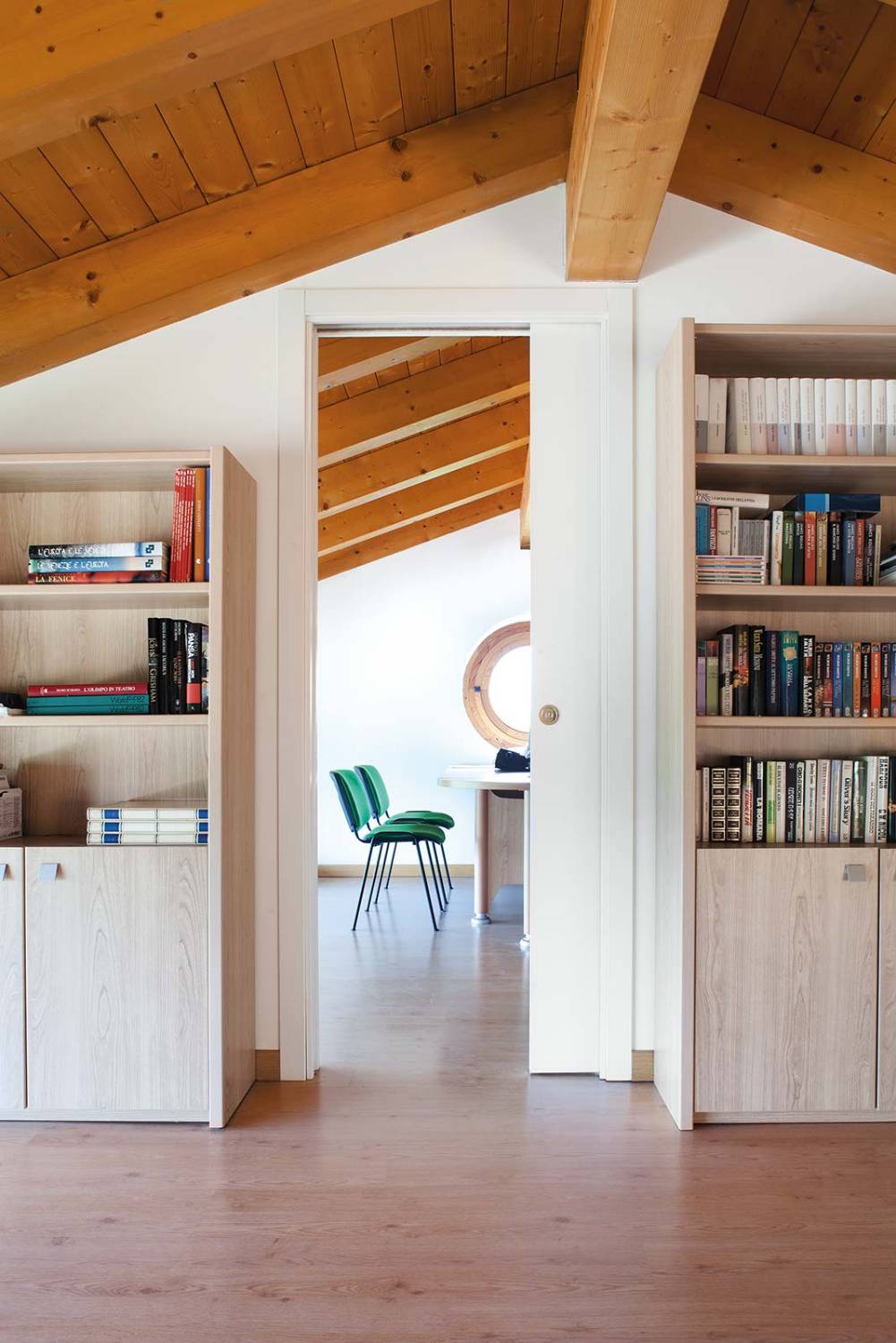

Single sliding pocket door.
Sliding pocket doors are a space-saving alternative to a traditional hinged door for downstairs toilets, utility rooms, bathrooms, en-suites, storerooms and pantries, walk-in wardrobesIdeal for any room where you wish to maximise the usable floor space in a property.
Features:
- The door post, pocket and track assemble together and are inserted into the stud work as a complete unit which helps to ensure the door will run true and in line.
- Door slides into the pocket in the wall.
- Wide range of sizes to suit standard UK door sizes. Non-standard sizes on request up to 2 m wide and 3 m high door panel.
- Door panels up to 100 kg (150 kg on request).
- Suitable for use with 35 or 44 mm thick doors.
- Doors, plasterboard and final architrave not included.
- A wide range of glass pocket doors is available to suit the system – contact manufacturer for details.
- For fire-rated version see the Sliding Pocket Door - Single Fire-Rated specification.
Advantages:
- Quick and easy to assemble and install.
- Complete with full wooden jamb kit for a professional finish.
- Maintenance-free track and runners.
- Fully extractable track, no need to break into the wall should you ever want to remove it.
- Fully adjustable front and rear doorstop.
- Self-centring floor guide with anti-warp profile.
| Size | See Options below and insert requirements. |
| Uniclass 2015 | |
| CAWS | L20/520 Sliding doors L20/525 Sliding pocket doors P21/10 Quantities and locations P21/350 Door track and running gear |
| Product Reference | Classic Sliding Pocket Door System – Single |
| Size | See Options below and insert requirements. |
| Finished wall thickness | 100 mm125 mm |
| Door furniture | As scheduleOSO8Polished brass simple flush pull. OSC4Antique brass simple flush pull. OSC2Polished chrome simple flush pull. OSC1Satin chrome simple flush pull. OSO3Polished brass bathroom lock. OSAAntique brass bathroom lock. OSO1Polished chrome bathroom lock. OSSSatin chrome bathroom lock. |
| Accessories | Not requiredECLISSE BIAS®ECLISSE BIAS® DSe-Motion motorSelf closing mechanismSoft close |
| Product Options | Size: The following frame sizes (in mm) are available:
Bespoke sizes available on request. Accessories:
|
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 Revit | Revit 2015 | 4 | 1.3 |
 Vectorworks | - | 1.0 | |
 ARCHICAD | - | 1.0 | |
 IFC | Revit 2016 | 5 | 2.0 |
