Sliding Folding Concertina Shutter Door
Verified by manufacturer 5 months ago
Leaves, 0.9 mm-thick
Leaves, 0.9 mm-thick

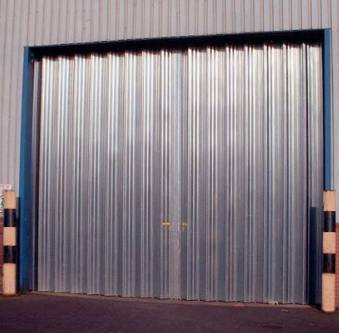

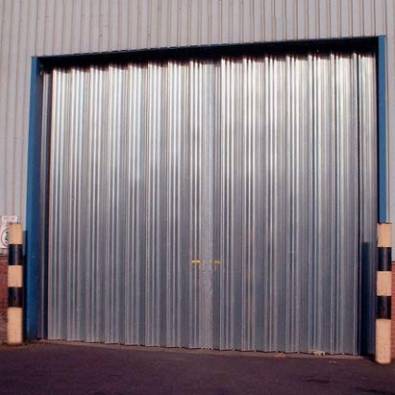

Folding steel shutter door with stacking to one side or bi-parting with stacking to both sides.Doors can be built into the reveal ( Bunching within ) or face fixed each side ( Bunching Past )
Application
Suitable for external applications such as warehouses and locomotive or carriage sheds.
Description
A strong and robust door controlled by a pantograph system which is tough, yet smooth and easy to operate.
Features and benefits:
- Minimal headroom is occupied.
- Doors can be arranged to fit around crane beams or railway catenary wires, making them particularly suitable for locomotive or carriage sheds.
- A secondary top track can be fitted to prevent sway.
- Tolerates most extreme weather conditions.
- All rolled components are supplied in galvanized steel and other steel items are zinc plated. Brackets are fabricated and primer painted.
- Bolts with Teflon coated heads ensure that the ends of the lattice bars slide freely.
- Multiple fixed or floating door units can be combined to cover openings of most widths.
- Building register approved.
- Contractors Health & Safety Assessment Scheme accredited contractor.
- WCS accreditation.
General information
Color | Silver Other Guidance for specification option: Powder-coating or Plastisol coating (0.9 mm thick leaves only). |
Finish | Powder-coated Guidance for specification option: Leading edge, outer hinge strips, covers and the outside face of the leaves only are colour finished. Galvanized Guidance for specification option: Internal door items, pickets and lattice bars are supplied in galvanized finish (all rolled components). Plastisol Guidance for specification option: 0.9 mm thick leaves only. Zinc plated |
Material | Steel |
Shape | Rectangle Square |
Width | Bespoke |
Height | Bespoke 9000 mm Guidance for specification option: Maximum height. |
Uniclass | |
CAWS | L20/535 Sliding folding shutter doors L20/610 Roller shutters/ curtains L20/60 Doors |
Specification data - Sliding folding doorsets
Grade | External. |
Format | Top hung, one way bunching.Top hung, bi-parting opening. |
Track system | Horizontal tubular track, guided in a channel set into the floor. |
Door leaf | |
Construction | Ribbed steel leaves, 0.9 mm thick, 230 mm wide, with rolled edges hinged in patented pickets. |
Finish | Galvanized and zinc plated.Powder-coating.Colourcoat HP200 Plastisol.Guidance for specification option: Up to 6 m high (see colour chart for availability). |
Operation | Manual.Electric. |
Integral accessories | Pull handles, aluminium. |
Height | Manufacturer guidanceUp to 9 m. Insert requirements or refer to a drawing or schedule. |
Width | Manufacturer guidanceUnlimited with multiple units. Insert requirements or refer to a drawing or schedule. |
Total weight | 30 kg/m² (minimum). |
Bracket | Steel angles with factory applied primer. Manufacturer guidanceTrack brackets material and finish. |
Top track | 2.6 mm thick, cold formed galvanized steel. Guidance for specification option: Standard (supplied in one length). 5 mm thick, painted heavy duty track. Guidance for specification option: For very large doors. |
Top cover | Galvanized steel. Guidance for specification option: Reduces draughts. Special sizes are available. |
Bottom channel | 2 mm thick galvanized steel multi-profile section. Guidance for specification option: Provides a continuous lip for grouting. Special arrangements are available. |
Locking | Hasp and staple, motorised bolt. Hasp and staple, surface hook bolt. |
Threshold | Nylon in PVC clip-on extrusion. Guidance for specification option: Brush strip is factory fitted to bottom of leaves. |
Fixing type | Inside reveals. Guidance for specification option: IR type. Outside reveals. Guidance for specification option: OR type. Between jambs. Guidance for specification option: BJ type. |
