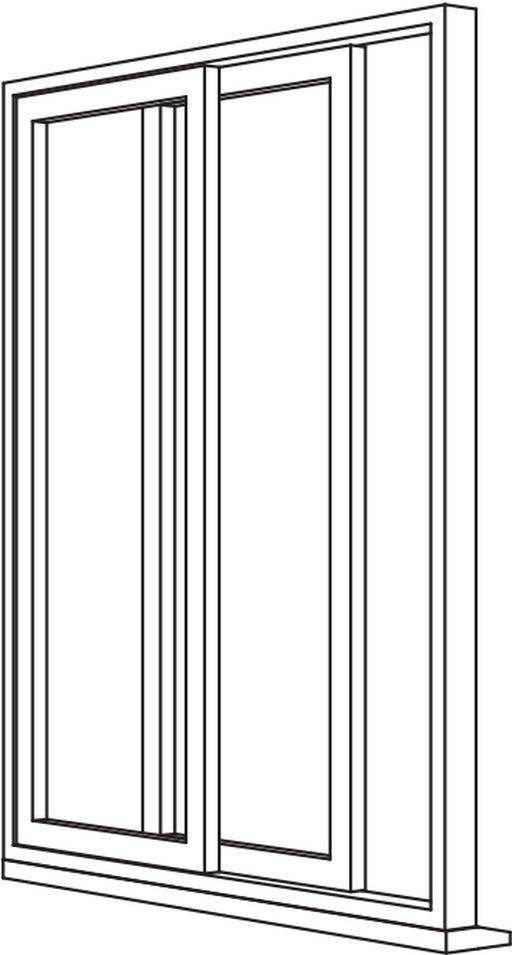

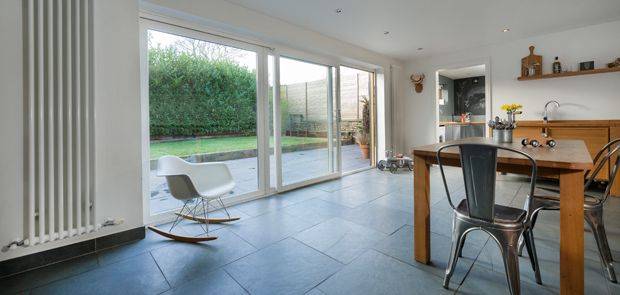

Slider24 In-Line Patio Door System - Open Right
NBS BIM object standard Verified by manufacturer 2 months ago
Standard Threshold
Standard Threshold
BSI Kitemark
Certificate type
Robust, high performance in-line sliding patio door system.
Application
Sliding patio door.
Description
Robust, high performance in-line sliding patio door system.
Features and benefits:
- Designed to withstand extreme loads.
- Certified to the latest PAS 24 enhanced security standard.
- Available in a vast array of foil colour options.
- A+/A++ WER rating (double glazed/ triple glazed).
- Sturdy clip-fit trim fixings.
- No interlock plunge bolts.
- Neighbourhood Watch Approved security guarantee.
- Approved Document Q and M compliant.
- Suites with Heritage 2800 windows.
- Durable stainless steel track.
- Uniform back of frame for platform ancillary compatibility.
- Dedicated midrail for letter plate with integral screw ports for joining mechanically.
- Also available as an 'open left' model, specified separately.
General information
Shape | Rectangle |
Color | White White - RAL 9016 (standard). Other Laminated foil, Decoroc colour (RAL). |
Material | PVC-U |
WarrantyDescription | Ten year |
Size |
|
Uniclass | |
CAWS | L20/520 Sliding doors |
Specification data - Sliding door and partition sets
Third party accreditation | BSI Kitemark. |
Performance | External. |
Arrangement | Two pane.Size (w x h): 1505–3005 x 2000–2350 mm. Three pane (central slider).Size (w x h): 2261–4511 x 2000–2350 mm. Three pane (end slider).Size (w x h): 2261–4511 x 2000–2350 mm. Four pane.Size (w x h): 2932–5932 x 2000–2350 mm. |
Track system | Manufacturer's standard. |
Door leaves | - |
Finish and colourExterior/ interior.
| Agate Grey/ Heritage White.Anthracite Grey/ Anthracite Grey.Anthracite Grey/ White.Anthracite Smooth/ Heritage White.Black Ash/ Black Ash.Black Ash/ Heritage White.Black Ash/ White.Chartwell Green/ Chartwell Green.Chartwell Green/ White.Classic Cream/ Classic Cream.Classic Cream/ White.English Oak/ English Oak.English Oak/ Heritage White.Golden Oak/ Golden Oak.Golden Oak/ White.Heritage White/ English Oak.Heritage White/ Heritage White.Ice Cream/ Heritage White.Irish Oak/ Irish Oak.Irish Oak/ White.Nut Tree/ Nut Tree.Nut Tree/ White.Rosewood/ Rosewood.Rosewood/ White.White Grain/ White Grain.White Grain/ White.Other.Other RAL codes can be specified; check with manufacturer for lead times and insert requirements. |
Operation | Manual. |
Hardware | Yale six-point hook lock. |
Bead | Bevelled. Decorative. |
Glazing | Double glazed, 28 mm. 4/20/4 argon cavity. U-value: 1.4–1.3 W/m²K. WER: A+ 16. Triple glazed, 36 mm. 4/12/4/12/4 argon cavity. U-value: 1.0–0.98 W/m²K. WER: A++ 21. |
Security level | To PAS 24. |
Threshold | Standard. |
Sill | 95 mm sill. 150 mm sill. 180 mm sill. 250 mm sill. |
AcousticRating | 32—43 dB. |
Air permeability | Class A4, 600 Pa. |
Watertightness | Class E8A, 450 Pa. |
Wind resistance | Class A3, 1200 Pa. |
U-value | 1.4—0.98 W/m²K. 0.98 achieved with 4/12/4/12/4 argon cavity glazing. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 2 |
 IFC | IFC2X3 | 1 |
Literature
07. Slider24+ Sliding Patio Door Datasheet
13. Specification Guide - Slider24+ In-Line Sliding Patio Door
