Description

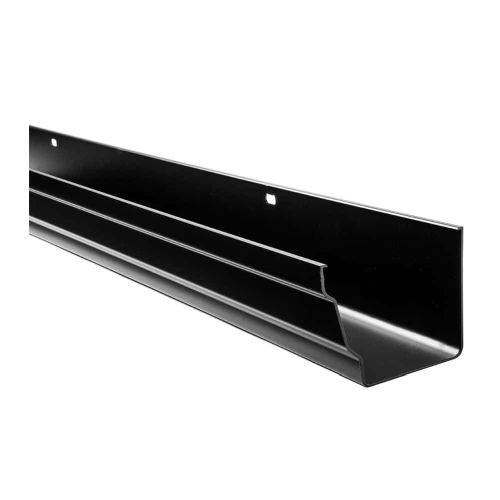

A prestigious-looking gutter product that will enhance any building, is corrosion-resistant, and requires very low maintenance. The SL gutters are designed to be fixed direct to a fascia board, thus removing the need for fascia brackets. Gutters are joined using an internal joint clip which does not require any mechanical fixings. Silicone joint sealant can be used to create a long-lasting, watertight seal.

Features:

  • Available in 125 x 100 mm MOG and 125 x 75 mm HR.
  • 2 mm aluminium EN AW – 6063 T6 to BS EN 12020.
  • Polyester powder-coated inside and outside.
  • Direct fixing to fascia board with stainless steel fixings.
  • Internal joint clip.
  • No mechanical fixings required for joint.

General information
Features

Available in 125 x 100 mm MOG and 125 x 75 mm HR

2 mm aluminium EN AW – 6063 T6 to BS EN 12020

Polyester powder-coated inside and outside

Direct fixing to fascia board with stainless steel fixings

Internal joint clip

No mechanical fixings required for joint

Uniclass 2015
Aluminium eaves gutters (Pr_65_50_35_06)Primary
Specification data - Aluminium eaves gutters
Product Reference

SL Aluminium Gutters

Type

SLGC00

125 x 100 mm MOG, 3 m.

SLGC01

125 x 100 mm MOG, 2 m.

SLGS00

125 x 75 mm XL, 3 m long.

SLGS01

125 x 75 mm XL, 2 m long.

Accessories

Insert requirements from 'Options' below.

Product Options

Accessories:

- Suitable for 75 mm HR gutter:

  • SLGS02 – 125 x 75 mm HR Outlet Piece.
  • SLGS03 – 125 x 75 mm HR 90° External Angle.
  • SLGS04 – 125 x 75 mm HR Irregular Ext Angle.
  • SLGS05 – 125 x 75 mm HR 90° Internal Angle.
  • SLGS06 – 125 x 75 mm HR Irregular Interior Angle.
  • SLGS07 – 125 x 75 mm HR Stop End Right Hand.
  • SLGS08 – 125 x 75 mm HR Stop End Left Hand.
  • SLGS09 – 125 x 75 mm HR Joint Clip.
  • SLGS10 – 125 x 75 mm HR Fascia Bracket (if required).

- Suitable for 100 mm MOG gutter:

  • SLGC02 – 125 x 100 mm MOG Outlet Piece.
  • SLGC03 – 125 x 100 mm MOG 90° External Angle.
  • SLGC04 – 125 x 100 mm MOG Irregular Ext Angle.
  • SLGC05 – 125 x 100 mm MOG 90° Internal Angle.
  • SLGC06 – 125 x 100 mm MOG Irregular Interior Angle.
  • SLGC07 – 125 x 100 mm MOG Stop End Right Hand.
  • SLGC08 – 125 x 100 mm MOG Stop End Left Hand.
  • SLGC09 – 125 x 100 mm MOG Joint Clip.
  • SLGC10 – 125 x 100 mm MOG Fascia Bracket (if required).
