Application

Roof glazing applications, to be used in conjunction with Skyline patent glazing.

Description

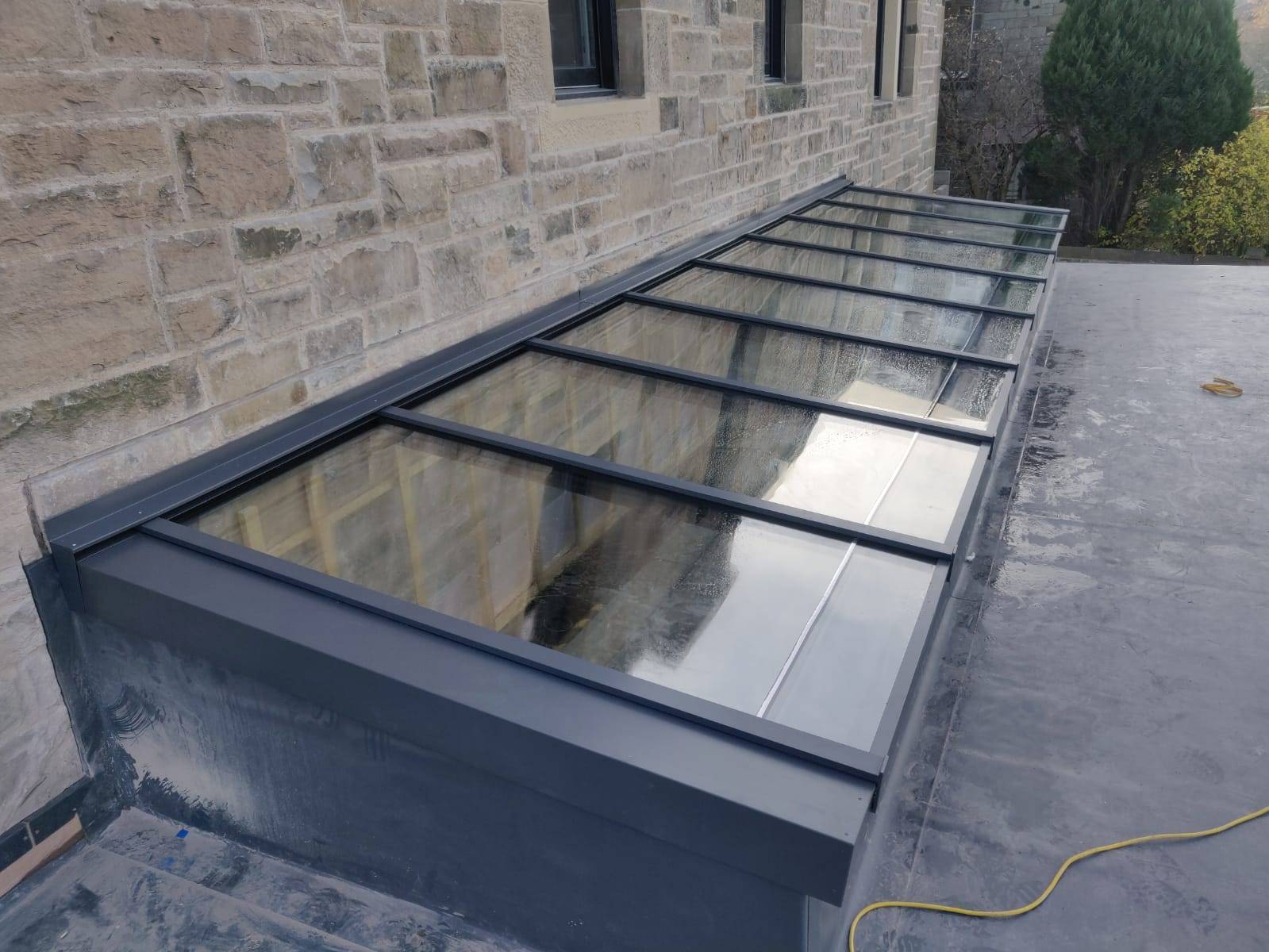

Self-supporting skylight with slim, external extruded aluminium capping.

Features and benefits:

  • Available with a choice of two cosmetic outer snap-on cappings which conceal all fixing screws, and an external snap-on capping to allow for design flexibility.
  • Can be combined with opening vents to offer a complete glazing solution.
  • Can span 1–30 panes in length and 1–10 panes in width - consult manufacturer for details.
  • Incorporates an extruded aluminium structural ridge, hip and sill members and 16 gauge aluminium insulated flashings to ridge or apex, hip/ verge and sill positions.
  • Manufactured in accordance with BS 5516: 2004 Code of Practice for the design and installation of vertical and sloping patent glazing.

Applications:

Roof glazing applications, to be used in conjunction with Skyline patent glazing.

General information
Material

Grade 6063 temper T6 aluminium alloy, conforming to BS EN 755-2

Uniclass 2015 Rooflight systems (Ss_30_30_72_72)
Specification data
Product Reference

Skyline Self-Supporting Skylight - Gable Ended

Without vertical glazed upstand.

Skyline Self-Supporting Skylight - Gable Ended Lantern

With vertical glazed upstand, specify height below.

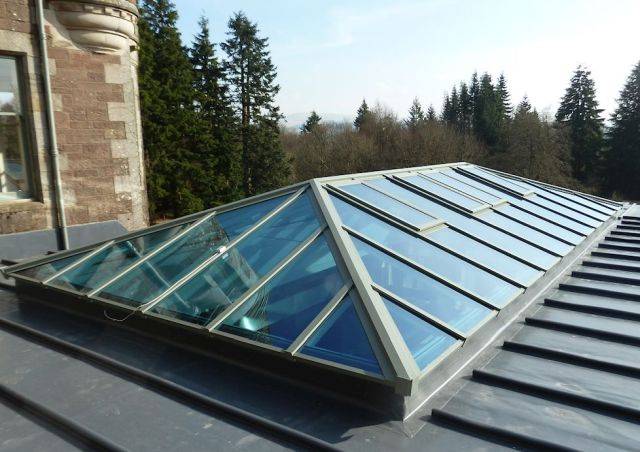

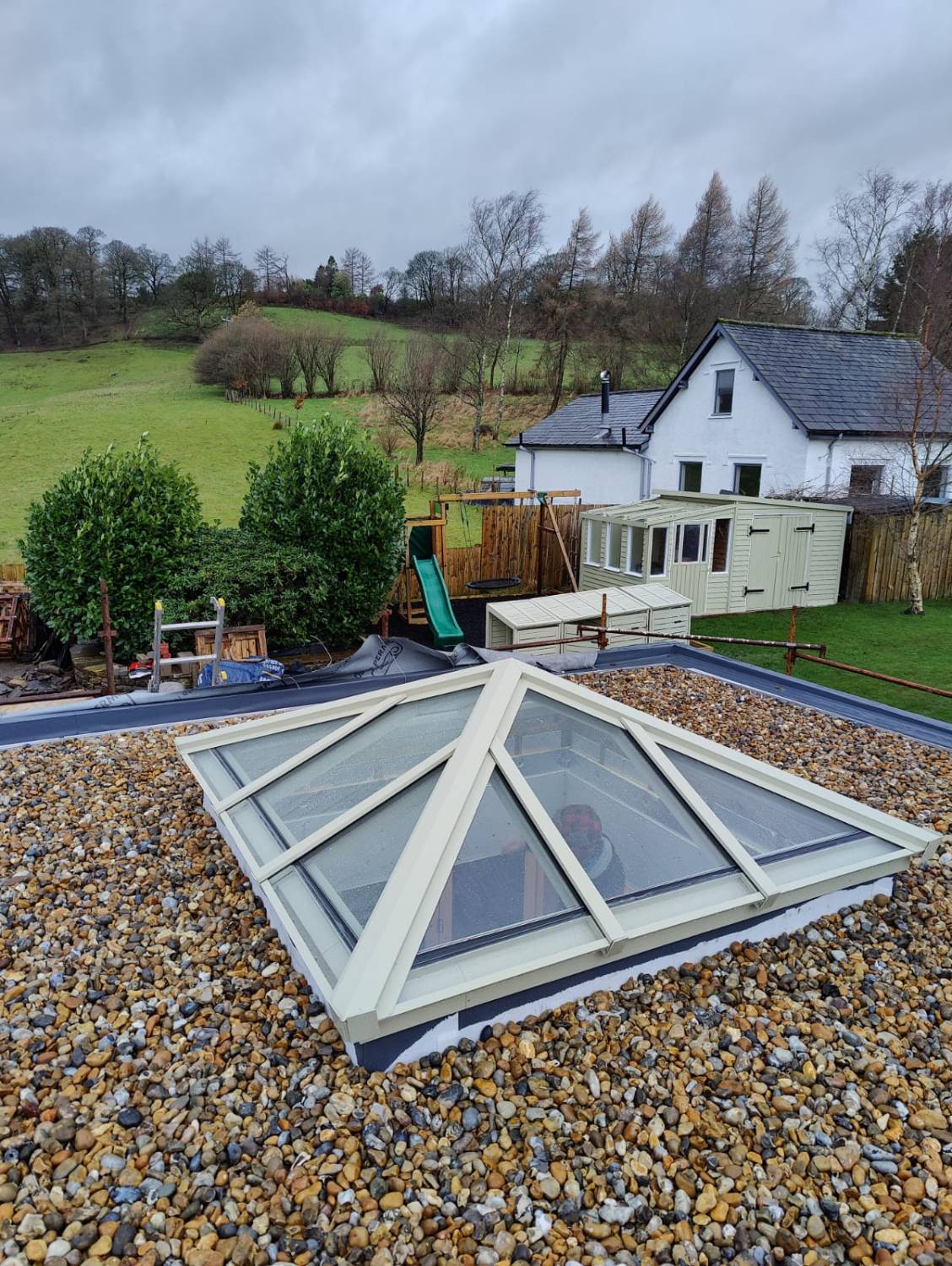

Skyline Self-Supporting Skylight - Hipped

Without vertical glazed upstand.

Skyline Self-Supporting Skylight - Hipped Lantern

With vertical glazed upstand, specify height below.

Skyline Self-Supporting Skylight - Polygonal

Without vertical glazed upstand. Insert required number of segments from 5 (pentagon), 6 (hexagon), 7 (heptagon), 8 (octagon), 9 (nonagon), 10 (decagon), 12 (dodecagon), 16 (hexadecagon) or 24 (icosikaitetragon).

Skyline Self-Supporting Skylight - Polygonal Lantern

With vertical glazed upstand, specify height below. Insert required number of segments from 5 (pentagon), 6 (hexagon), 7 (heptagon), 8 (octagon), 9 (nonagon), 10 (decagon), 12 (dodecagon), 16 (hexadecagon) or 24 (icosikaitetragon).

Supporting structure

Concrete

Steel

Timber

Glazing bar -
Type

SPG2

Depth: 55 mm.

SPG3

Depth: 75 mm.

SPG4

Depth: 100 mm.

Capping -
External

PC2, plain square edged extruded aluminium cap

PC3, ornate extruded aluminium profiled cap

Internal

Not required

PC4, ornate extruded aluminium profiled inner cap

Fully conceals the internal stalk, giving the appearance of a feature timber rafter.

Colour/ Finish

Insert non-metallic RAL colour requirement from the standard range.

Kerb -
Length

Consult manufacturer and insert requirement. Insert N/A if specifying Polygonal variations.

Width

Consult manufacturer and insert requirement.

Slope

15°

20°

25°

30°

35°

40°

45°

Vertical glazed upstand height

Not required

If specifying Gable Ended, Hipped or Polygonal.

500 mm

600 mm

700 mm

800 mm

900 mm

1000 mm

Infill -
Outer pane

Consult manufacturer's literature and insert requirements.

Cavity

16 mm Argon gas filled cavity with warm edge spacer bars

Inner pane

Consult manufacturer's literature and insert requirements.

Opening vents -
Type

Not required

Bottom hung, thermally broken

Side hung, thermally broken

Top hung, thermally broken

Quantity

1–20, insert requirements. If opening vents are not required, insert N/A.

Operation

Not applicable

Electric control - chain actuator, 24 V

Electric control - chain actuator, 230 V

Electric control - linear actuator, 24 V

Electric control - linear actuator, 230 V

Manual control - screwjack gear

Pneumatic control - gas springs

Controls

Not applicable

Crank handle

For use with screwjack gear.

Standard open/ close wall mounted switch

For electric actuators.

Wall mounted thermostatic control panel with rain sensor

For electric actuators.

Standard product features

Material:

Grade 6063 temper T6 aluminium alloy, conforming to BS EN 755-2.

Pressure cap:

PC1, extruded aluminium cap.

Minimum film thickness:

40 µm.

Product Options

Supporting structure:

The raised upstand kerb should be 100 mm wide (minimum).

Glazing bar:

Consult manufacturer before specifying a particular glazing bar.

Colour/ Finish:

Polyester powder-coated to BS 6496.

Glazing infill:

A variety is available, e.g. clear laminated, heat soaked toughened, etc. Consult manufacturer's literature for information. When 28 mm thick double glazed units are used, a centre pane thermal transmittance (U-Value) of at least 1.15 W/m²K can be achieved.
