SkyLine Projecting Brise Soleil - Cubic Horizontal & Vertical Array Panels
Verified by manufacturer 2 days ago
75 x 50 mm Rectangle Fin (Cubic)
75 x 50 mm Rectangle Fin (Cubic)

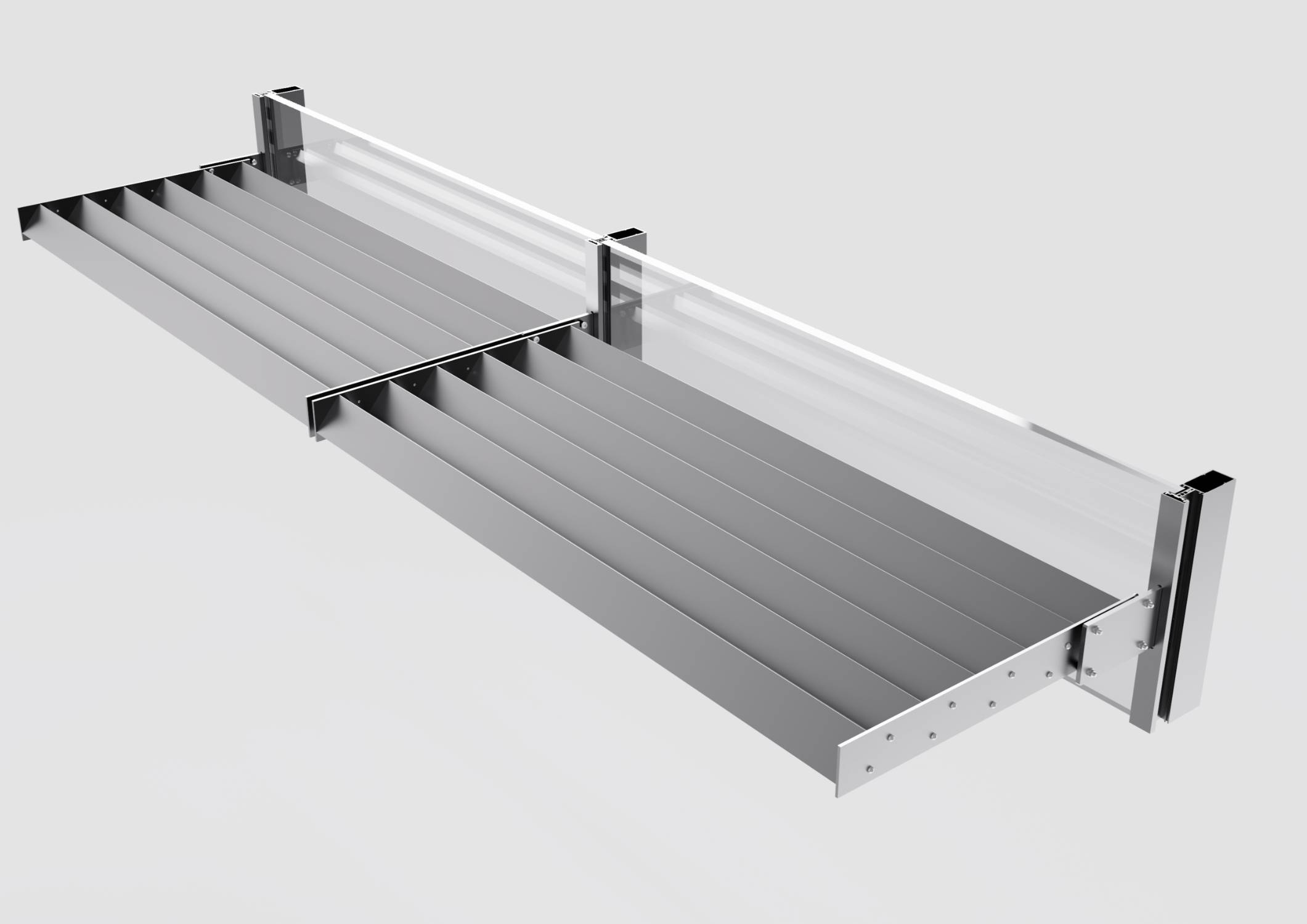

A range of projecting aluminium solar shading/ brise soleil systems
Application
A range of projecting aluminium solar shading/ brise soleil
systems suitable for window, curtain walling and cladding brickwork applications such as:
- Office facades.
- Schools & Universities
- Offices.
- Car showrooms
- Leisure Centres
- Shopping Centres & Retail Units
- Commercial Buildings.
- Data Centres
- Car Parks (MSCP)
- Hotels
- Hospitals
- Care Homes & Retirement Villages
- Airports
- Museums & Art Galleries
- Inside & outside applications
Description
A range of projecting aluminium solar shading/ brise soleil
systems.
Features and benefits:
- Rectangular fin ranges 75–545 mm.
- Brise soleil solar shading panel/ cassette or single fin system.
General information
Color | Other Beige Black Blue Bronze |
Finish | Anodized Powder-coated Mill Textured Grained |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/55 Brises-soleil L10/670 Brises-soleil |
Specification data - Composite brise-soleil units
Classification data | |
Support arms | |
Material | 6 mm profile aluminium, grade 5083/6063. Guidance for specification option: For panel/ cassette applications. |
Finish | Polyester powder-coated to BS EN 12206-1 to minimum 40 μm. Guidance for specification option: Available in RAL/ BS colours from the standard range. Matt/ gloss/ satin finish. Insert requirements. Anodized to 25 μm to BS 3987. Mill finish. |
Colour | Manufacturer guidanceInsert requirements. |
Brace arms | |
Material | Not required. |
Array louvre blades | |
Profile | Rectangular. Manufacturer guidanceRectangle fin as standard or bespoke to suit project requirements. |
Size | 75 x 50 mm. Manufacturer guidanceProfile thickness: 2.0 mm. |
Pitch | Manufacturer guidancePlease see BIM Files for profile size and recommended pitch. |
Material | 6063-T6 extruded aluminium alloy to BS EN 12020. |
Finish | Polyester powder-coated to BS EN 12206-1 to minimum 40 μm. Guidance for specification option: Available in RAL/ BS colours from the standard range. Matt/ gloss/ satin finish. Insert requirements. Anodized to 25 μm to BS 3987. Mill finish. |
Colour | Manufacturer guidanceInsert requirements. |
Front rail | |
Format | Rectangle fin. Bespoke. |
Fire performance | |
Reaction to fire | To BS EN 13501-1, Class A2-s1,d0 (polyester powder-coated). |
Brackets | Integral curtain walling or window brackets (aluminium 6063T6/ 6082T6). Welded fabricated brackets (aluminium 5083). Welded fabricated brackets (galvanized mild steel S275). |
Fasteners | A2 stainless steel. |
Accessories | Not required. Mitred corner panels. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | The global recycling efficiency rate (RER) of aluminium is currently 76% |
Expected Life | 80 year |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Case studies

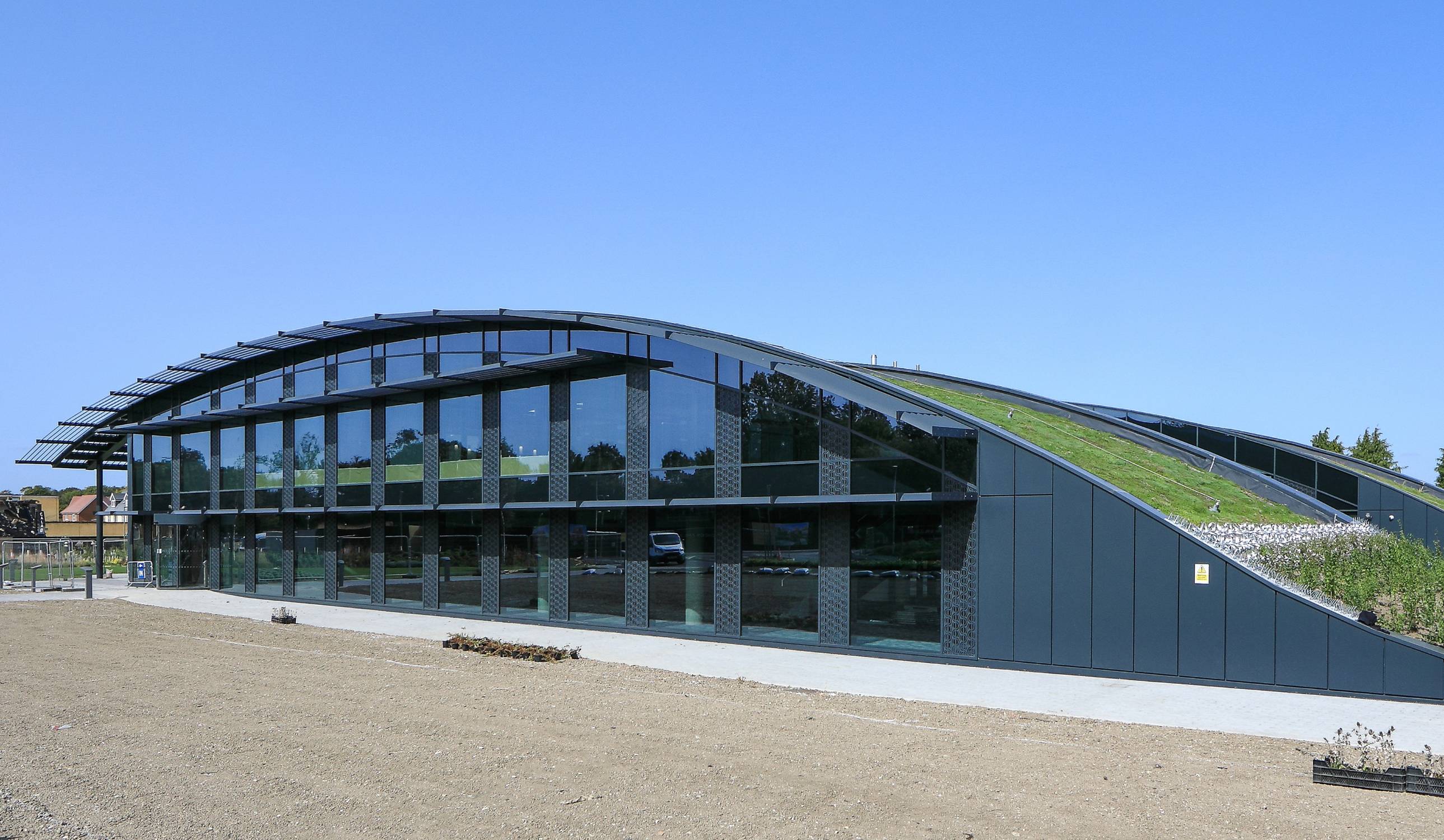

Ashton College Case Study
