Skyline Acoustic Ceiling Cloud

Name: Skyline Acoustic Ceiling Cloud
Brand: d6wxnhAmvPDJ9J24VyJFtH
SKU: 87C9P5nFpw83WADZzES7Pr

Syska Acoustics Ltd

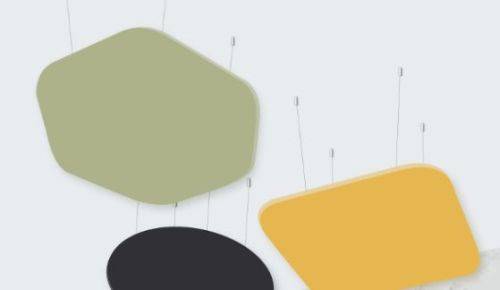

Acoustic ceiling panel kit for direct fix or ceiling suspension.

Jump to:

+44 (0)2036 967845 www.syska-acoustics.com

Application

For use in interior spaces to help with sound absorption.

Description

Acoustic ceiling panel available in various shapes, manufactured from polyethylene terephthalate (PET).

Features and benefits:

Available in five modular shapes and two thicknesses.

Designed to cover a large surface area.

Retains access to the ceiling above.

Lightweight and easy to fix.

Creates a flush finish.

Can be fixed either directly to the ceiling or suspended with a gap.

Low VOC content.

Available in 34 colours, which can be mixed and matched to create unique finishes.

Applications:

For use in interior spaces to help with sound absorption.

General information

Uniclass 2015

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K40/115 Unit/ modular suspended ceiling system

K40/265 Infill units

Specification data - Sound attenuator infill units

Product Reference	Skyline Acoustic Ceiling Cloud
Shape/ Size	Circle, 300 x 300 mm Circle, 600 x 600 mm Circle, 1200 x 1200 mm Hexagon, 290 x 250 mm Hexagon, 600 x 500 mm Rectangle, 600 x 300 mm Rectangle, 1200 x 600 mm Rectangle, 2400 x 1200 mm Square, 300 x 300 mm Square, 600 x 600 mm Square, 1200 x 1200 mm Triangle, 300 x 300 mm Triangle, 600 x 600 mm Triangle, 1200 x 1200 mm Custom Consult manufacturer and insert requirements.
Thickness	12 mm 24 mm
Colour	See 'Options' and insert requirements.

Standard product features

Composition:

100% polyester fibre (PET).

Weight:

12 mm thickness: 2800 g/m².

24 mm thickness: 5000 g/m².

Noise reduction coefficient (NRC):

Direct fix to ceiling (12 mm): 0.90.

With 100 mm suspension (12 mm): 0.95.

With 150 mm suspension (12 mm): 0.95.

With 200 mm suspension (12 mm): 1.00.

Direct fix to ceiling (24 mm): 0.90.

With 100 mm suspension (24 mm): 0.95.

With 150 mm suspension (24 mm): 1.00.

With 200 mm suspension (24 mm): 1.00.

Fire rating (to BS 5422: 1990):

Class 0.

VOC emissions (to ASTM D5116):

-0.02 mg/m²/hr (after seven days).

Product Options

Shape/ Size:

Custom shapes are available; consult manufacturer for details.

Thickness:

Tolerance of ±2 mm. Consult manufacturer for details.

Colour:

Arizona (12 mm variants only).

Atlantic.

Azure.

Bark.

Brick.

California.

Caramel (12 mm variants only).

Claret (12 mm variants only).

Cloud.

Cobalt (12 mm variants only).

Cotton.

Forest (12 mm variants only).

Fuscia (12 mm variants only).

Graphite (12 mm variants only).

Latte.

Lime.

Marble.

Midnight (12 mm variants only).

Mocha (12 mm variants only).

Oak (12 mm variants only).

Oyster (12 mm variants only).

Pacific (12 mm variants only).

Poppy.

Regency (12 mm variants only).

Royal.

Sage.

Salmon (12 mm variants only).

Sandstone.

Slate.

Smoke.

Steel (12 mm variants only).

Stone.

Sunbeam (12 mm variants only).

Topaz.

Custom colours can be produced to match any RAL code - consult manufacturer for details.
