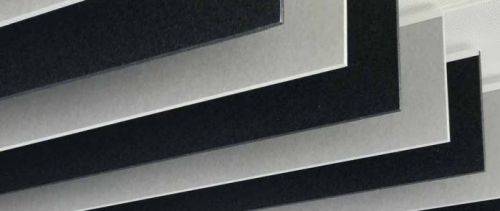

Skyline Acoustic Ceiling Baffle
Application

For use in interior spaces to help with sound absorption.

Description

Acoustic ceiling baffle available manufactured from polyethylene terephthalate (PET).

Features and benefits:

  • Available in two profile designs, six sizes and two thicknesses.
  • Designed to cover a large surface area.
  • Retains access to the ceiling above.
  • Lightweight and easy to fix.
  • Provided as a complete kit with all necessary fixtures and fittings.
  • Can be fixed either directly to the ceiling or suspended with a gap.
  • Low VOC content.
  • Available in 34 colours, which can be mixed and matched to create unique finishes.

Applications:

For use in interior spaces to help with sound absorption.

General information
Size

1200 x 200 mm

1200 x 300 mm

1200 x 400 mm

2400 x 200 mm

2400 x 300 mm

2400 x 400 mm

Uniclass 2015
Pr_35_93_13_80 Sound attenuator infill unitsPrimary
CAWS

K40/115 Unit/ modular suspended ceiling system

K40/265 Infill units

Specification data - Sound attenuator infill units
Product Reference

Skyline Acoustic Ceiling Baffle

Profile

Curved

Square

Size

1200 x 200 mm

1200 x 300 mm

1200 x 400 mm

2400 x 200 mm

2400 x 300 mm

2400 x 400 mm

Thickness

12 mm

24 mm

Colour

See 'Options' and insert requirements.

Standard product features

Composition:

100% polyester fibre (PET).

Weight:

  • 12 mm thickness: 2800 g/m².
  • 24 mm thickness: 5000 g/m².

Noise reduction coefficient (NRC):

  • Direct fix to ceiling (12 mm): 0.90.
  • With 100 mm suspension (12 mm): 0.95.
  • With 150 mm suspension (12 mm): 0.95.
  • With 200 mm suspension (12 mm): 1.00.
  • Direct fix to ceiling (24 mm): 0.90.
  • With 100 mm suspension (24 mm): 0.95.
  • With 150 mm suspension (24 mm): 1.00.
  • With 200 mm suspension (24 mm): 1.00.

Fire rating (to BS 5422: 1990):

Class 0.

VOC emissions (to ASTM D5116):

-0.02 mg/m²/hr (after seven days).

Product Options

Profile:

Custom shapes and sizes are also available; consult manufacturer for details.

Thickness:

Tolerance of ±2 mm. Consult manufacturer for details.

Colour:

  • Arizona (12 mm variants only).
  • Atlantic.
  • Azure.
  • Bark.
  • Brick.
  • California.
  • Caramel (12 mm variants only).
  • Claret (12 mm variants only).
  • Cloud.
  • Cobalt (12 mm variants only).
  • Cotton.
  • Forest (12 mm variants only).
  • Fuscia (12 mm variants only).
  • Graphite (12 mm variants only).
  • Latte.
  • Lime.
  • Marble.
  • Midnight (12 mm variants only).
  • Mocha (12 mm variants only).
  • Oak (12 mm variants only).
  • Oyster (12 mm variants only).
  • Pacific (12 mm variants only).
  • Poppy.
  • Regency (12 mm variants only).
  • Royal.
  • Sage.
  • Salmon (12 mm variants only).
  • Sandstone.
  • Slate.
  • Smoke.
  • Steel (12 mm variants only).
  • Stone.
  • Sunbeam (12 mm variants only).
  • Topaz.

Custom colours can be produced to match any RAL code - consult manufacturer for details.
