Description

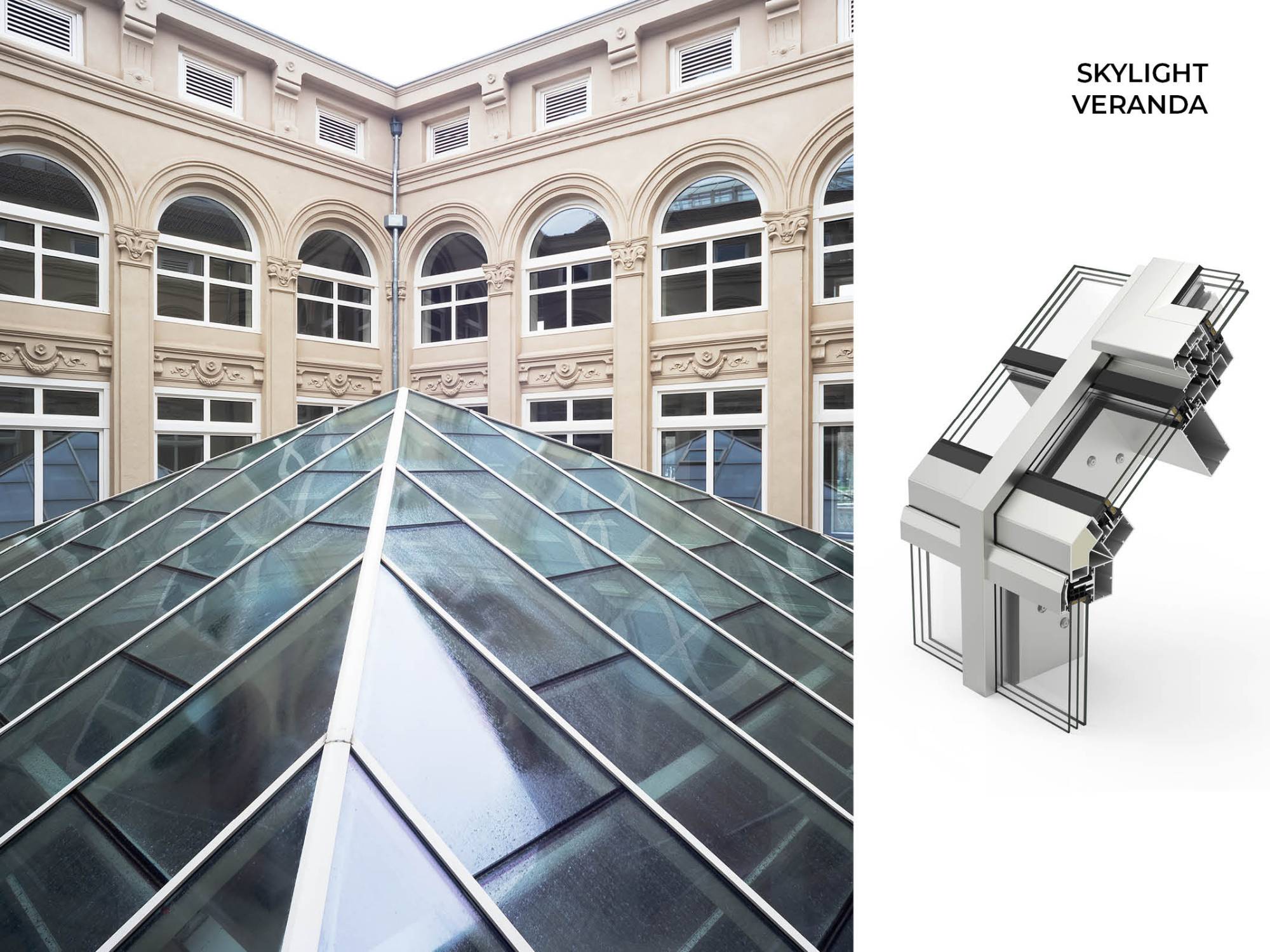

Self-supporting stick aluminium skylight system (gable roof or hip roof) with a wide range of mullions and transoms available to match different aesthetics and constructive requirements using integral solutions that enable the creation of new spaces with great luminosity.

Features and benefits:

  • Stick system composed of a grid of mullions and transoms constructed from aluminium alloy 6063 T6.
  • Glazing is fixed to the grid of mullions and transoms by either a pressure plate and a 52 mm cover cap, or the glazing is fixed to mullions/ transoms by using clips in their perimeter, covered by a 22 mm strip of silicone placed in the gap between glazing in order to ensure the water tightness of the system.
  • Attachment of horizontal and vertical profiles is set through unions performed with transom connectors fitted with dilatation joints.
  • Thermal bridge break is set by stackable isolators constructed from polyvinyl chloride (PVC) which allow the different glazing thickness.
  • Optional internal reinforcement profiles for configurations with high mechanical requirements.
  • Optional complementary elements as solar protection louvres fixed by brackets, may be added to the skylight in the exterior.

General information

Size

As drawing

Insert reference.

As schedule

Insert reference.

Material

Aluminium alloy 6063 T6 profiles

Uniclass 2015

Ss_30_30_72_73 Roof window systemsPrimary

CAWS

H10/10 Patent glazing

H10/115 Patent glazing

Specification data - Roof window systems

Product Reference

Skylight-Veranda

Size

As drawing

Insert reference.

As schedule

Insert reference.

Glazing

-

Type

Insert requirement, thickness of 26–38 mm for fixed lights, 24–38 mm for roof windows.

Fixing

Clips

Pressure plate and cover cap

Opening elements

Not required

Motorized top hung roof window, outwards opening

2100 x 3000 mm (w x h) maximum size.

Finish

-

FinishType

Anodized

15–25 μ dependent on the class (Class 15, Class 20, Class 25), guaranteed by EWAA-EURAS Standard.

Polyester powder coated

Insert requirement, quality guaranteed by QUALICOAT Standard, with a thickness in the interval between 60–100 μ.

Colour

Insert requirement or insert 'Not applicable' for Anodized.

Reinforced profiles

Not required

Required

Fixing brackets

Insert requirements contact manufacturer for information.

Accessories

Insert requirements contact manufacturer for information.

Standard product features

Material:

Aluminium alloy 6063 T6 profiles.

Profile thickness:

  • Mullions: 2.1–3 mm.
  • Transoms: 2.1 mm.

Maximum glass unit weight:

750 kg.

Gaskets:

Water-tightness is ensured by a set of cuttable joints constructed from ethylene-propylene diene monomer (EPDM), with the possibility of using vulcanized corner cleats in the junction between mullions and transoms, and the use of a butyl strip between the pressure plate and the glazing (pressure plates and cover caps).

Drainage system:

Composes up to three levels of drainage, allowing the evacuation of potential condensation water from the transoms through the mullion channels to finally drain using deflector blocks (pipettes) as elements of evacuation.

Thermal transmittance:

  • Mullions and transoms (Uf): ≥0.9 W/m²K.
  • Glazing (Ucw): ≥0.6 W/m²K.

Performance (based on nine panels, 3 x 3.5 m):

  • Air permeability (to BS EN 12152): Class AE.
  • Water tightness (to BS EN 12154): Class RE1500.
  • Wind resistance (to BS EN 13116): Complies (Design wind load 2000 Pa/ security wind load 3000 Pa).

Product Options

Opening elements:

24–38 mm thick glazing available, 150 kg maximum weight.

Performance (based on 1.23 x 1.14 m):

  • Air permeability (to BS EN 12207): Class 4.
  • Water tightness (to BS EN 12208): Class E2250.
  • Wind resistance (to BS EN 12210): Class C5.

Fixing brackets:

Connection of the skylight to the substructure is performed using aluminium fixing brackets. Different configurations are available including bottom fixing brackets, head fixing brackets, fixed and sliding bearing point brackets, etc. Contact manufacturer for more information.
