SitaMulti Cast Iron Roof Outlet - Roof Drainage Outlet
Verified by manufacturer 4 days ago
DN80
DN80

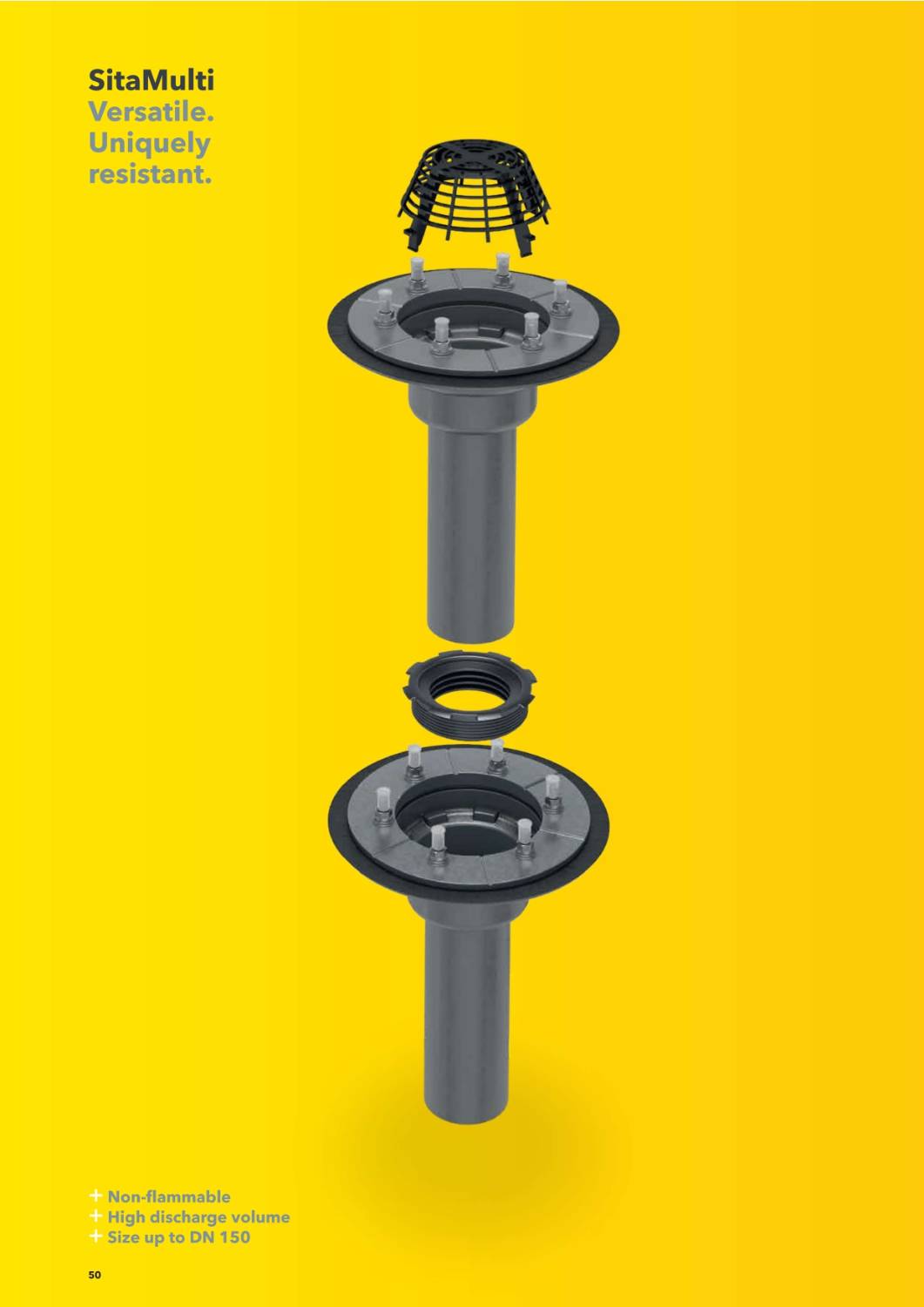

SitaMulti fire protection roof outlet.
Application
Fire-rated roof drainage outlet for use in conventional gravity systems, enabling direct connection to SML pipework while maintaining fire compartment integrity at roof penetrations.
Description
SitaMulti fire protection outlet, vertical, made of cast iron, material EN-GJL-200, to DIN EN 1253-2, in sizes DN 80, DN 100, DN 125 and DN 150. For direct connection to SML pipes, for conventional drainage, with internal lugs to support the grating frame, with drilled holes to secure the roof outlet in the substructure, with weepholes, two sealing sleeves, six inserted stainless steel M12 threaded rods, washers, brass hexagon nuts and caps, with loose-fixed flange for clamping bitumen, plastic or EPDM roofing membranes, complete including dome grate, supply and install to professional standards.
Features and benefits:
- Non-flammable.
- Loose-fixed flange construction.
- Available with insulating bodies.
- One-piece or two-piece installation possible.
- Suitable for roof gutters.
General information
Color | Grey |
Finish | Powder-coated |
Material | Cast iron |
Shape | Circle |
Length | 400 mm |
Width | 350 mm |
Height | 74 mm |
Warranty description | Six year |
Uniclass | |
CAWS | R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets |
SKU Code | 400399 |
Specification data - Siphonic rainwater outlets
Classification data | |
Material | Cast iron. Guidance for specification option: EN-GJL-200. |
Grating | Domed. |
Spigots | DN80, outer diameter 83 mm. Guidance for specification option:
Manufacturer guidanceConsult manufacturer's literature for full details. |
Integral accessories | SitaMulti screw-on flange extension unit - 402799. Guidance for specification option:
|
Accessories | Manufacturer guidanceConsult manufacturer's literature for options and insert requirements. |
Standard | DIN EN 1253-2. |
Reaction to fire | Euroclass A1 /A1 non-flammable. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Cast iron |
Expected Life | Lifetime |
Literature
Literature type
SitaMulti Technical Information
SitaMulti Installation Instructions
110mm SitaMulti_400499_en
160mm SitaMulti_400899_en
125mm SitaMulti_400699_en
80mm SitaMulti_400399_en
