Application

For pedestrian access control.

Description

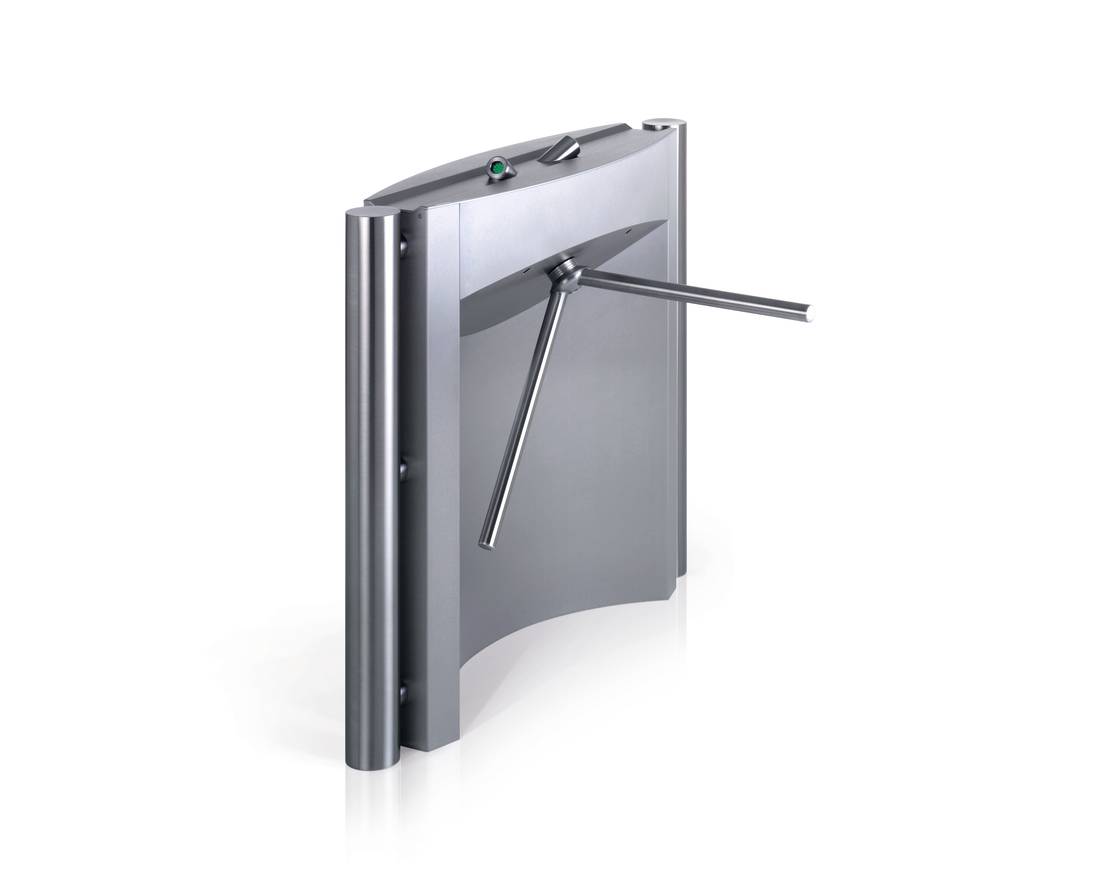

Elegant, motor-driven turnstile, providing reliable individual entry separation in a wide range of entrance areas. Operation using card reader, coin operation, operating panel, ticketing system or to custom requirements. Elegant guidance elements are in keeping with the attractive design of the Sirio turnstiles, and aid reliable entry separation.

Features and benefits:

  • Ideal in architecturally sophisticated settings.
  • In form-fitting stainless steel housing.
  • Contactless start, available with two or three arms.

Application:

For pedestrian access control.

General information
Features

Space-saving solution for assembly on walls or uprights, compact stainless steel housing, 2 arms, climb over and crawl under protection, light sensors to start arm rotation contactlessly

Finish

Polished stainless steel or coated in RAL colour of choice

Material

Stainless steel

Size

1145 x 1145 mm

Uniclass 2015
Stainless steel half-height turnstiles (Pr_30_59_34_88)Primary
Specification data - Stainless steel half-height turnstiles
Product Reference

Sirio

Type

Two arms

Three arms

Rotation

Freely rotating

Control unit

Card reader, operating panel, button

Operating temperature

-25 to + 50°C

Function

Access can be combined with ESD technology

Barrier elements

120° or 240° rotation, depending on arms and position

Drive

Electromotor swivel unit – low-maintenance, backlash-free, long service life, adjustable motor speeds, freely rotatable when power supply is disconnected

Weight

71 kg

Passage rate

For one-time release of up to 25 people per minute

Accessories

None

Attachment board for additional connection options

Base support set

Climb-over/ crawl-under protection

Control panels

Emergency OPEN switch

Galaxy port

Guidance elements

Holders,

LED release signal

Light sensors to start barrier arm rotation contactlessly

Mechanical or electrical gates for wheelchair-accessible passage

Standard product features

Finish:

Polished.

Material:

Stainless steel housing and arms.

Size:

1145 x 1145 mm.

Technical characteristics:

  • Electricity supply: 230 V, 50–60 Hz.
  • Power consumption: 200 VA.
  • Rated current: 0.88 A.
  • Protection class: I.
  • Protection class for the turnstile/ controls/ power unit: IP 22.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
