SIP Build UK SIP System - Structural Insulated Panels (SIPs)

Name: SIP Build UK SIP System - Structural Insulated Panels (SIPs)
Brand: SIP Build UK
SKU: jraaxGmgKYXQmPF9Z1toSH

Verified by manufacturer 28 days ago

15 mm faced panels (150 mm overall panel thickness)

SIP Build UK

Third party certifications:

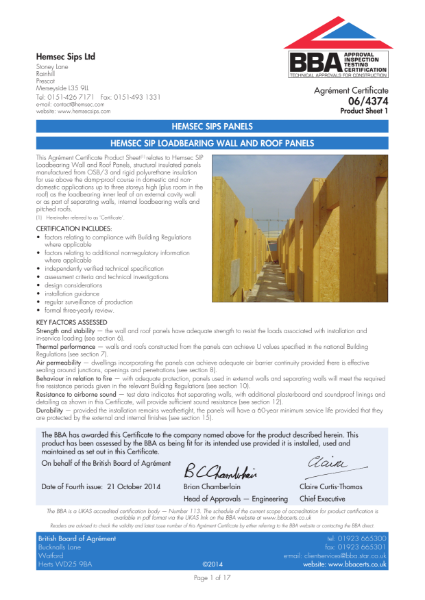

BBA Agrément Certificate
Certificate type

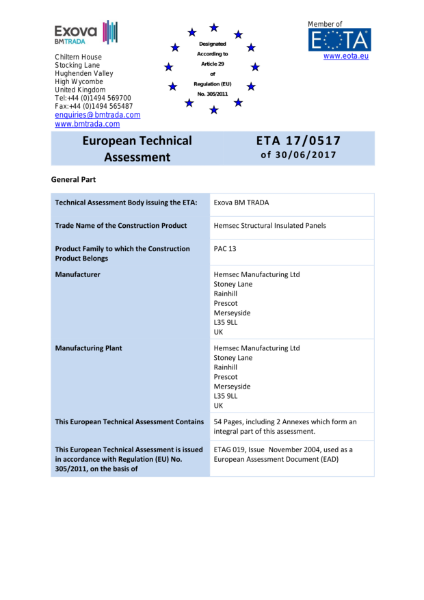

European Technical Approval (ETA)
Certificate type
CHAS
Certificate type
ISO 9001 Quality Management
Certificate type

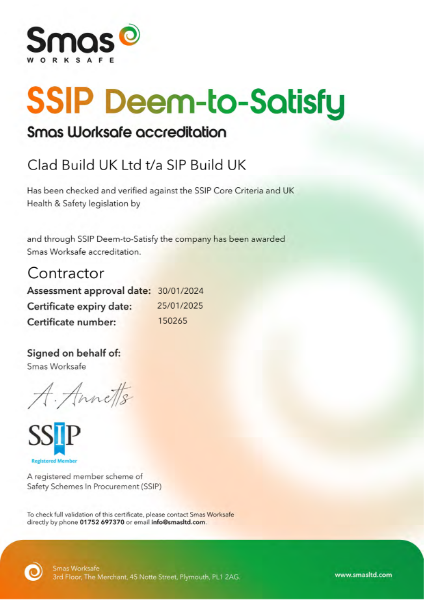

smas WORKSAFE
Certificate type

Structural insulated panels (SIPs) for thermally efficient constructions.

Jump to:

+44(0)1977520902 Website

Application

Structural insulated panels (SIPs) that can be used for all internal and external walls and roofs in domestic, industrial and commercial construction, including:

Residential: Self-build and multiplot developments.
Hotels and holiday resorts.
Commercial and industrial buildings.
Private education facilities and extensions.
Garden rooms and home extensions.

Description

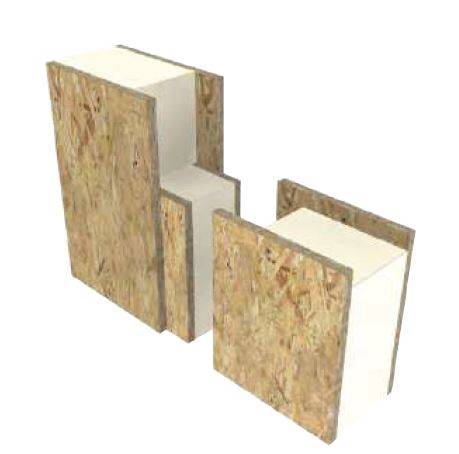

Structural insulated panels (SIPs) by Hemsec, for thermally efficient constructions. The panels consist of internal and external skins of oriented strand board, Type 3 (OSB/3) to BS EN 300: 2006, with an insulation core of closed cell polyurethane (PUR).

Features and benefits:

BBA-certified.
Supports faster build times.
Can be used internally and externally.
Maximizes internal build space.
Good thermal U-values.
Industry leading airtightness.
A range of board configurations and sizes are available.

Consult manufacturer's literature for design load values dependent on the panel span.

Consult BBA certificate for detailed testing information.

General information

Color	Yellow
Finish	Smooth
Material	Oriented strand board (OSB) Polyurethane (PUR) Guidance for specification option: High performance fibre-free rigid urethane.
Shape	Other
Length	100 mm 125 mm 150 mm 175 mm 200 mm 225 mm Bespoke Guidance for specification option: Others are available, consult manufacturer for details. Show more Manufacturer guidance Depth/ thickness.
Width	1200 mm Bespoke
Height	4800 mm 6000 mm 7500 mm Bespoke
Warranty description	20 year Manufacturer guidance Warranties for SIPs construction are available from companies that offer warranty schemes and the majority of lenders are able to offer mortgages on SIPs houses. Hemsec SIPs are BBA/ NHBC approved and are eligible for Premier Guarantee. Provided the installation remains weathertight and dampproof, a life of at least 60 years may be expected. For more information, consult manufacturer.

Uniclass	Pr_20_93_85_90 Timber structural insulated panels (SIPs)Primary Pr_20_65_60_84 Structural insulated panel (SIP) modules
CAWS	B14/110 Prefabricated panelled G20/348 Structural insulated wall panels G20/347 Structural insulated roof panels

Specification data - Timber structural insulated panels (SIPs)

Dimensions	-
Panel height	- Manufacturer guidance Minimum 200 mm. Available up to 7500 mm, consult manufacturer and insert requirement. Can be pre-cut to suit building design.
Panel width	- Manufacturer guidance Minimum 200 mm. Available up to 1200 mm, consult manufacturer and insert requirement. Can be pre-cut to suit building design.
Insulation	-
Material	Polyurethane (PUR). Guidance for specification option: A closed cell polyurethane rigid foam with zero Ozone Depletion Potential (ODP), supplied by BASF Polyurethanes Europe. The PUR core is CFC and HCFC free providing a <5 value for GWP. Thermal conductivity value of 0.028 W/m·K.
Thickness	120 mm. Manufacturer guidance Insulation core.
Panel facings	Oriented strand board (OSB). Guidance for specification option: Type 3 (OSB/3), manufactured to EN 13986 and EN 300. Panels are faced on both sides, autohesively bonded to the insulation core during manufacture. Thermal conductivity value of 0.13 W/m·K.
Perforations	- Manufacturer guidance Consult manufacturer and insert requirements or omit.
Fire performance rating	To BS EN 13501-1, Euroclass RtF E. Guidance for specification option: Resistance to fire. Manufacturer guidance Panel internal and external OSB and CPB facings have Class 3 surface spread of flame to BS476: Part 7:1987.
Additional requirements	- Manufacturer guidance Consult manufacturer and insert requirements or omit.

Thickness (overall)	150 mm.
Board facing	15 mm (to both sides).
ThermalConductivity	0.028 W/m·K.
Panel weight	24.20 kg/m².
Thermal transmittance (U-Value)	0.21 W/(m²·K).
Fire resistance	FR30. Guidance for specification option: Consult manufacturer for details. FR60. Guidance for specification option: Consult manufacturer for details. Manufacturer guidance When Hemsec SIPs are used as part of a through-wall build up, they pass the requirements of BS476: Part 21 fire resistance of load bearing walls and have achieved up to 75 minutes fire rating.
