Description

Partitioning systems incorporating Aqua gypsum board, fixings, frame and finishing products. Suitable for use across many construction sectors, including commercial, residential, education and health. They offer a simple, lightweight, durable and versatile means of dry wall construction.

General information
Specification data
Product Reference

Siniat Aqua Board Partition Systems

Partition type

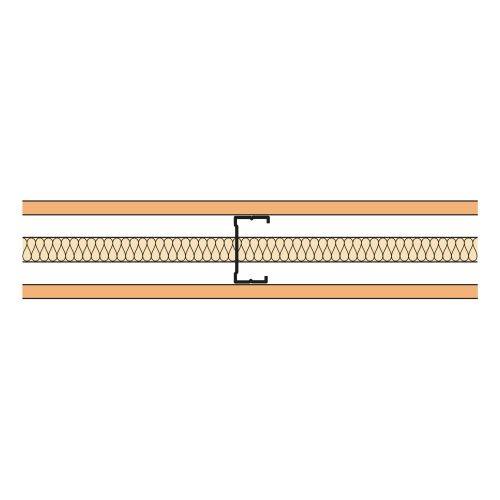

RAP 001: C Stud Partition

System weight: 28 kg/m²; Thickness: 100 mm; Fire performance: 60 minutes; Strength duty: Severe; Acoustic performance: 40 dB sound reduction.

RAP 003: C Stud Partition

System weight: 28 kg/m²; Thickness: 100 mm; Fire performance: 60 minutes; Strength duty: Severe; Acoustic performance: 46 dB sound reduction.

RAP 004: C Stud Partition

System weight: 23 kg/m²; Thickness: 95 mm; Fire performance: 30 minutes; Strength duty: Medium; Acoustic performance: 46 dB sound reduction.

RAP 044: C Stud Partition

System weight: 28 kg/m²; Thickness: 100 mm; Fire performance: 60 minutes; Strength duty: Severe; Acoustic performance: 47 dB sound reduction.

RMAP 003: C Stud Partition

System weight: 28 kg/m²; Thickness: 100 mm; Fire performance: 60 minutes; Strength duty: Severe; Acoustic performance: 46 dB sound reduction.

RMAP 050: C Stud Partition

System weight: 44 kg/m²; Thickness: 120 mm; Fire performance: 60 minutes; Strength duty: Severe; Acoustic performance: 56 dB sound reduction.

System height

As drawing

Insert reference.

Jointing

Insert requirement(s) from manufacturer's literature.

Sealer

GTEC Drywall Sealer

Ivory, pre-decoration coat for plasterboard.

GTEC Universal Sealer

For use on plasterboard prior to painting for improved whiteness and covering power.

Standard product features

Aqua Board:

  • Material: Aerated calcium sulfate di-hydrate with liners made from non-woven tissue with fillers and fibres enclosed inside gypsum core. Core and papers bonded with starch. PVA edge glue, silicone oil water-resistant additive. Core contains biocide to prevent mould growth.
  • Size (w x l): 1200 x 850–3000 mm.
  • Nominal weight: 10.8–13 kg/m².
  • Thermal resistance (R-value): 0.05–0.06 m²K/W.
  • Thermal conductivity (K-value): 0.25 W/mk.

GTEC Intumescent Acoustic Sealant:

Perimeter sealing to restrict smoke, sound and fire penetration. Ensures system performance.

GTEC Corner and Edge Beads:

Provides corner and edge reinforcement.

GTEC Socket Pad:

Maintains acoustic and fire integrity at sockets.

GTEC Insulation Hold:

Secures insulation to prevent slump.

Fixings:

GTEC Self-Tapping Drywall Screws.

Product Options

Partition type:

- AMAP 004: Acoustic C Stud Partition:

  • Facing outer layers: One 15 mm-thick Aqua Board one side, one 15 mm thick Megadeco Board the other side.
  • Studs: Single GTEC AS70Rx Acoustic C studs at 600 mm centres.
  • Insulation: 50 mm-thick, 16 kg/m³ density glass mineral wool (supplied by others).
  • Fire performance (to BS 476-22 and BS EN 1364-1): 60 minutes.
  • Strength duty rating (to BS 5234-2): Severe.

- RAP 001: C Stud Partition:

  • Facing outer layers: One 15 mm-thick Aqua Board both sides.
  • Studs: Single GTEC CS70Rx C studs at 600 mm centres.
  • Fire performance (to BS 476-22 and BS EN 1364-1): 60 minutes.
  • Strength duty rating (to BS 5234-2): Severe.

- RAP 003: C Stud Partition:

  • Facing outer layers: One 15 mm-thick Aqua Board both sides.
  • Studs: Single GTEC CS70Rx C studs at 600 mm centres.
  • Insulation: 25 mm-thick, 16 kg/m³ density glass mineral wool (supplied by others).
  • Fire performance (to BS 476-22 and BS EN 1364-1): 60 minutes.
  • Strength duty rating (to BS 5234-2): Severe.

- RAP 004: C Stud Partition:

  • Facing outer layers: One 12.5 mm-thick Aqua Board both sides.
  • Studs: Single GTEC CS70Rx C studs at 600 mm centres.
  • Insulation: 25 mm-thick, 16 kg/m³ density glass mineral wool (supplied by others).
  • Fire performance (to BS 476-22 and BS EN 1364-1): 30 minutes.
  • Strength duty rating (to BS 5234-2): Medium.

- RAP 044: C Stud Partition:

  • Facing outer layers: One 15 mm-thick Aqua Board both sides.
  • Studs: Single GTEC CS70Rx C studs at 600 mm centres.
  • Insulation: 50 mm-thick, 16 kg/m³ density glass mineral wool (supplied by others).
  • Fire performance (to BS 476-22 and BS EN 1364-1): 60 minutes.
  • Strength duty rating (to BS 5234-2): Severe.

- RMAP 003: C Stud Partition:

  • Facing outer layers: One 15 mm-thick Aqua Board one side, one 15 mm-thick Megadeco Board the other side.
  • Studs: Single GTEC CS70Rx C studs at 600 mm centres.
  • Insulation: 25 mm thick, 16 kg/m³ density glass mineral wool (supplied by others).
  • Fire performance (to BS 476-22 and BS EN 1364-1): 60 minutes.
  • Strength duty rating (to BS 5234-2): Severe.

- RMAP 050: C Stud Partition:

  • Facing inner layers: One 9.5 mm-thick GTEC Standard Board both sides.
  • Facing outer layers: One 15 mm-thick Aqua Board one side, one 15 mm-thick Megadeco Board the other side.
  • Studs: Single GTEC CS70Rx C studs at 600 mm centres.
  • Insulation: 25 mm-thick, 16 kg/m³ density glass mineral wool (supplied by others).
  • Fire performance (to BS 476-22 and BS EN 1364-1): 60 minutes.
  • Strength duty rating (to BS 5234-2): Severe.

System height (maximum):

3.2–4.4 m (dependent on system build up).
