Single Phase Electric Roller Shutters

Verified by manufacturer 9 days ago

Bolton Gate Company Third party certifications:
  • Constructionline

    Constructionline

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • dhf certificate

    dhf certificate

    Certificate type

Electric (single-phase) roller shutters.

Jump to:
+44 (0)1204 871001 Website

Application

Suitable for loading bays, factories, warehouses and any applications where security is required, representing a reliable and efficient closure for most applications.

Description

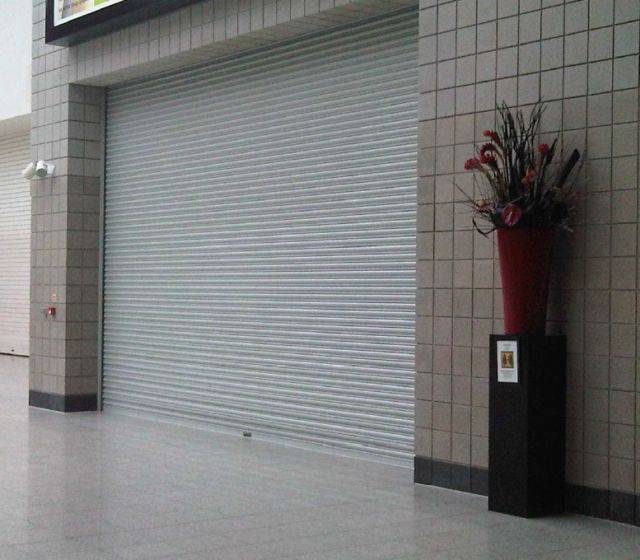

Steel roller shutters, which are operated via a single-phase electric motor. Roller shutters provide a virtually unobstructed opening, and when open, the shutter and mechanism are out of the way above the doorway, and clear of any risk of damage from vehicles moving through the opening. The doors are robust and have a long life, with little maintenance required.


Features and benefits:

  • Curtain: Constructed from 76 mm curved section galvanized steel laths, with steel end locks fitted to alternate laths to prevent lateral movement. The bottom rail is a galvanized steel inverted 'tee' section.
  • Guides: the side guides are formed from galvanized steel channels and prepared for fixing to the opening structure by means of continuous fixing angles.
  • End plates: fabricated from carbon steel of adequate thickness relative to door size, and supplied with angles for fixing to the structure.
  • Roller: the roller is manufactured from carbon steel tube of sufficient diameter and wall thickness to resist deflection, and is mounted on bearings or in cups on each end plate.
  • Operation: electrical operation is by means of a single-phase tubular motor. A safety brake is fitted to all shutters where personnel could pass underneath, thus meeting all relevant health and safety requirements. The client should provide a fused spur within 500 mm of the motor position.
  • Controls: the standard method of control is by means of internal, wall-mounted push-buttons. Other types of control, including key switches and group controls, are available at extra cost.
  • Casings: coil casings fabricated from galvanized steel sheet are available as an optional extra.

General information

Color

Other

Manufacturer guidance

A range of RAL colours available.

Finish

Galvanized

Guidance for specification option:

Standard.

Powder-coated

Guidance for specification option:

Polyester powder coated.

Material

Steel

Guidance for specification option:

Carbon steel.

Shape

Square

Rectangle

Width

Bespoke

Manufacturer guidance

Shutters are bespoke, manufactured to suit the required opening.

7000mm wide x 4000mm high maximum.


Height

Bespoke

Manufacturer guidance

Shutters are bespoke, manufactured to suit the required opening.

7000mm wide x 4000mm high maximum.

Warranty description

One year

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/610 Roller shutters/ curtains

Product range

Roller Shutters

Specification data - Roller shutters

Opening sizes

-

Manufacturer guidance

Bespoke; insert requirement, available up to 5 x 5 m as standard (clear width x clear height), available up to 7 x 5.5 m as special order (clear width x clear height).

Format

External.

Arrangement

Vertical, face-fitted across opening.

Vertical, fitted into reveal.

Performance

-

Resistance to wind load

To BS EN 12424, class 5.

Shutter curtain.

-

Lath material

Carbon steel.

Profile

Flat.

Guidance for specification option:

51 mm flat – Standard, for smaller openings.

102 mm flat – For industrial and exposed locations.

Curved.

Guidance for specification option:

Traditional.

Finish and colour

Galvanized/ primed.

Guidance for specification option:

Standard. Generally galvanized with non-galvanized parts prime painted.

Polyester powder-coated.

Guidance for specification option:

Range of standard RAL colours is available; consult manufacturer and insert requirements.

Frame and guides

-

Material

Carbon steel.

Finish

Galvanized/ primed.

Guidance for specification option:

Standard. Generally galvanized with non-galvanized parts prime painted.

Polyester powder-coated.

Guidance for specification option:

Range of standard RAL colours is available; consult manufacturer and insert requirements.

Colour

-

Manufacturer guidance

Insert RAL colour requirement, or type 'Not applicable' for Galvanized or Stainless steel.

Film thickness (minimum)

Manufacturer's standard.

Operation

-

Mode

Automatic.

Guidance for specification option:

Electrical via a 230 V nominal, single-phase tubular motor.

Control

-

Manufacturer guidance

Internal, wall-mounted push-buttons

Accessories

None.

Building Management System (BMS) linkage.

Card reader.

Galvanized steel coil casing.

Light curtain.

Motor casing and fascias.

Photocells.

Radar.

Status indicator.

Lath design

Perforated.

Punched.

Weight

35 kg/m².

Guidance for specification option:

Typically 35 kg/m², dependent upon the size and lath configuration.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Manufacturing plant location

Bolton BL1 2SP, UK

Recyclability

95%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

Constructionline

Constructionline

Constructionline Gold

ISO 9001 Quality Management

ISO 9001 Quality Management

Certificate of Management System Registration - ISO 9001:2015

dhf certificate

dhf certificate

DHF Membership
