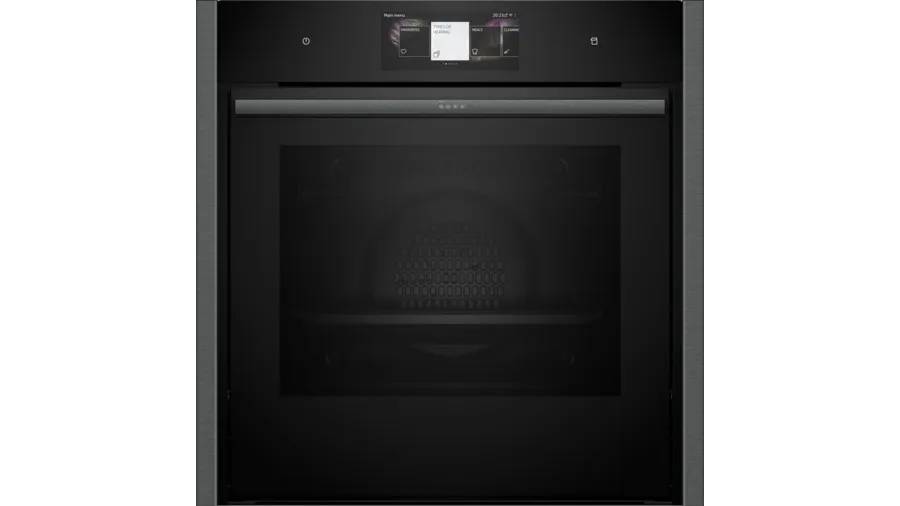

Single oven Slide & Hide door Graphite grey trim

Verified by manufacturer 2 months ago

B64VT73G0B

NEFF Home Appliances Variant:

Built-in single ovens, 60 x 60 cm.

Jump to:
BOS
0344 8929021 Website

Application

Suitable for domestic applications.

Description

A range of built-in single ovens with steam function in graphite grey.


Features and benefits:

  • Full touch TFT display: easy and intuitive interface for comfort.
  • Slide & Hide®: easy-to-handle oven door that slides away for unrestricted access.
  • Vario Steam: keeps food succulent in the middle and crisp on the outside.
  • Steam Boost: quickly fills oven with steam for flavour and texture.
  • Circo Therm®: smart solution for simultaneous baking and roasting on up to four levels.

General information

Color

Black

Grey

Material

Stainless steel

Glass

Shape

Rectangle

Length

548 mm

Manufacturer guidance

Depth.

Width

596 mm

Height

595 mm

Warranty description

Two year

Uniclass

Pr_40_70_24_08 Built-in electric ovensPrimary

CAWS

N11/360 Appliances

N11/40 Appliances

Specification data - Built-in electric ovens

Arrangement

Single oven.

Material and finish

Black-coated stainless steel with a graphite gry trim.

Dimensions

-

Height (maximum)

595 mm.

Width (maximum)

596 mm.

Depth (maximum)

548 mm.

Capacity (minimum)

71 L.

Shelving

Four shelf positions.

Doors

Full glass inner door.

Features

6.8 inch full touch TFT display.
Touch control.
HomeConnect ready on WLAN.
Oven assistant with voice control.
Door lock during pyrolytic cleaning.
Control panel lock, automatic safety switch off, residual heat indicator, start button, door contact switch.
LED light, on/off button.
Electronic clock timer.
Slide & Hide® with rotating handle.
Water tank empty indicator.
SoftClose.
SoftOpen.
Quadruple glazed door glazed CoolTouch door.
30°C: low door temperature.
Actual temperature display, heating up indicator, temperature probe.
CookControl Plus.
Rapid heat.
Steam boost.
Three steam intensity levels.
Cooling fan.
Stainless-steel fan.
Level independent telescopic rails.
Pyrolytic cleaning.
EasyClean.

Rating

3.6 kW.

Electrical supply

220–240 V, 50/60 Hz.

EU energy label rating (minimum)

A+.

Weight

47.5 kg.

Accessories

Not required.

Z11AB15A0: Baking tray, non-stick ceramic coated.

Z11AU15A0.

Z11CG10X1.

Z11CR10X0: Baking and roasting grid (standard).

Show more

Integral accessories

Combination grid, universal pan.

Sustainability data

Material

Stainless steel

Glass

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Single oven Slide and Hide door Graphite grey trim B54CR31G0B, Datasheet

Single oven Slide and Hide door Graphite grey trim B54CR31G0B, Datasheet

Single oven Slide and Hide door Graphite grey trim B54CR71G0B, Datasheet

Single oven Slide and Hide door Graphite grey trim B54CR71G0B, Datasheet

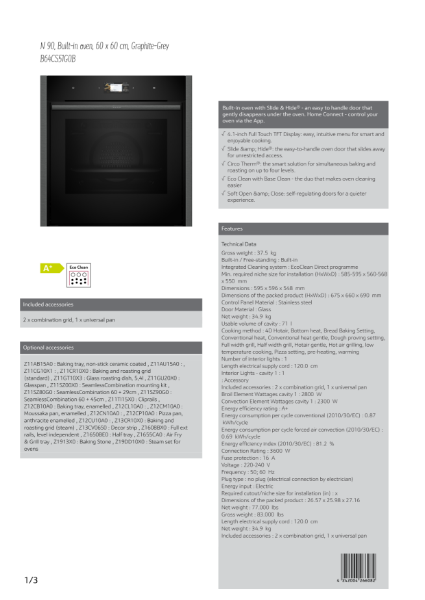

Single oven Slide and Hide door Graphite grey trim B64CS51G0B, Datasheet

Single oven Slide and Hide door Graphite grey trim B64CS51G0B, Datasheet

Single oven Slide and Hide door Graphite grey trim B64CS71G0B, Datasheet

Single oven Slide and Hide door Graphite grey trim B64CS71G0B, Datasheet

Single oven Slide and Hide door Graphite grey trim B64CT73G0B, Datasheet

Single oven Slide and Hide door Graphite grey trim B64CT73G0B, Datasheet

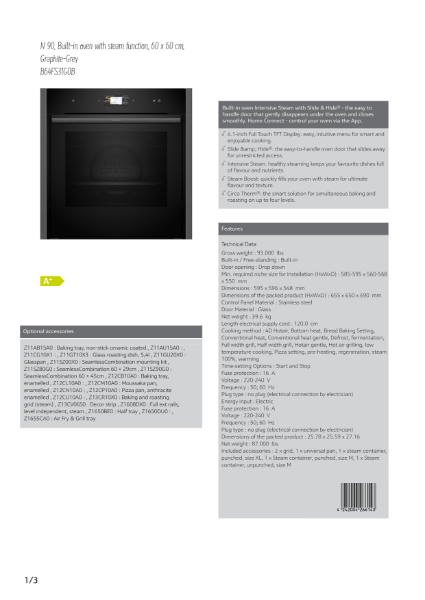

Single oven Slide and Hide door Graphite grey trim B64FS31G0B, Datasheet

Single oven Slide and Hide door Graphite grey trim B64FS31G0B, Datasheet

Single oven Slide and Hide door Graphite grey trim B64FT53G0B, Datasheet

Single oven Slide and Hide door Graphite grey trim B64FT53G0B, Datasheet

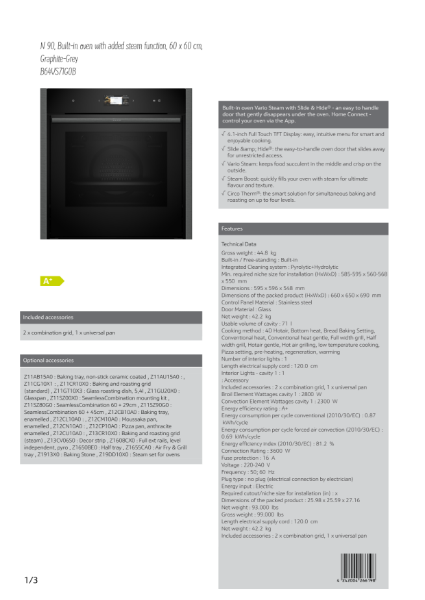

Single oven Slide and Hide door Graphite grey trim B64VS71G0B, Datasheet

Single oven Slide and Hide door Graphite grey trim B64VS71G0B, Datasheet

Single oven Slide and Hide door Graphite grey trim B64VT73G0B, Datasheet

Single oven Slide and Hide door Graphite grey trim B64VT73G0B, Datasheet
