Single Leaf Channel Lintels
Verified by manufacturer 4 months ago
WLSLC23, 600-1500 mm
WLSLC23, 600-1500 mm
A range of stainless steel lintels designed for carrying a single masonry leaf.
Application
Suitable for use as support to the outer leaf in cavity wall and solid wall construction.
Description

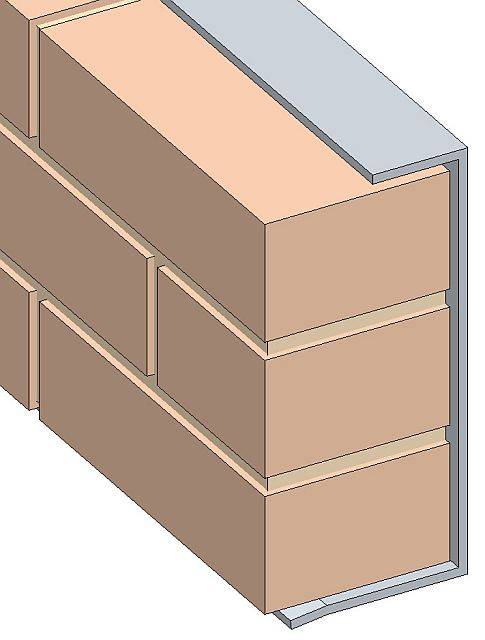

Single leaf channel lintels are designed to be fully built into the wall construction, supporting single leaf construction which is usually the single lead of a cavity wall.
Features and benefits:
- Manufactured from corrosion stainless steel.
- Will not require any further corrosion protection.
- Used to support the outer leaf in cavity wall construction.
- Single leaf lintels require propping during installation to limit deflections and a separate DPC is required.
- BBA approved resin.
- CE marked to BS EN 845-2.
General information
Color | Silver |
Finish | Galvanized Guidance for specification option: Carbon steel. |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304) and Grade 1.4401 (316) for corrosive environments. Carbon steel Guidance for specification option: For internal walls. |
Shape | Other |
Uniclass | |
CAWS | F30/755 Prefabricated steel lintels |
Specification data - Carbon steel lintels
Standard | To BS EN 845-2. |
Lintel type | Single. |
Material finish and coating reference | Stainless steel, grade 1.4301 (304).Guidance for specification option: As standard. Stainless steel, grade 1.4401 (316).Guidance for specification option: For more corrosive environments. Galvanized mild steel.Guidance for specification option: To suit internal applications. |
Length | 600-1500 mm. |
Height | 155 mm. |
Load | 20 kN. Manufacturer guidanceSafe working load (UDL). |
Accessories | None. Wincro WLSLC/CC. Guidance for specification option: Single leaf lintel with factory fitted cavity closer. |
