Single Glazed Edge Bi Fold Door - Internal Doors

Verified by manufacturer 4 days ago

Optima Product certifications:
  • UKAS

    UKAS

    Certificate type

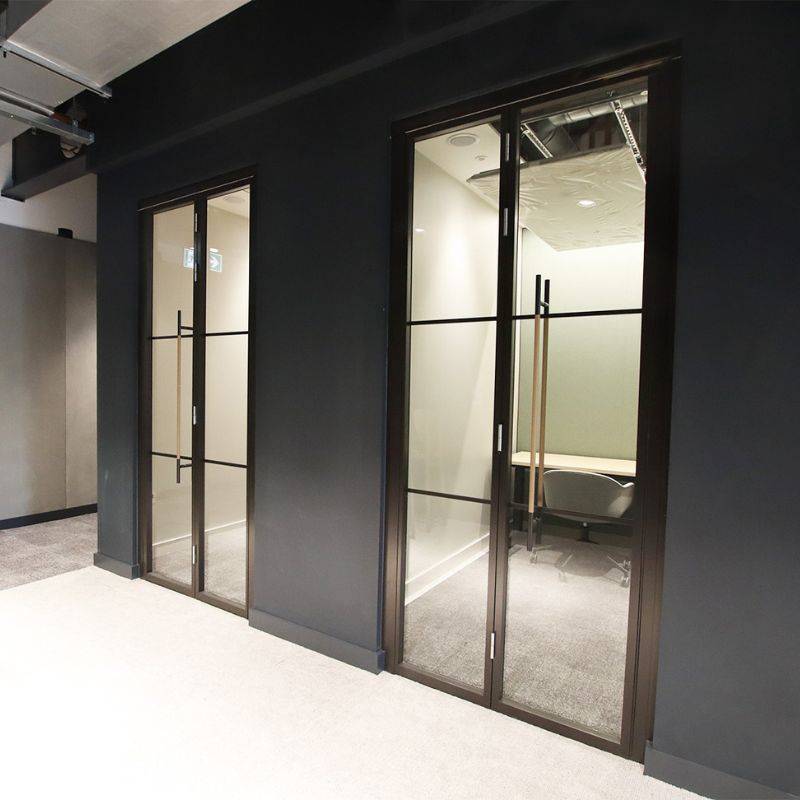

An aluminium framed Bi Folding, double-leaf, single-glazed acoustic glass door with high acoustic performance.

Jump to:
+44 (0)1494 492725 Website

Application

Suitable for offices and small rooms requiring maximum space and a high level of acoustic privacy.

Description

The Single Glazed Edge Bi Fold door set is a framed acoustic glass door which offers high acoustic performance and is suitable for small rooms requiring maximum space and a high level of acoustic privacy.

Features and benefits:

  • Designed for use within the Bi Fold door frame and is hinged.
  • Slim 30 mm standard width stile.
  • Part M-compliant clear opening included.
  • Complies to BS EN ISO 10140-2:2021 and BS EN ISO 717-1:2020.

General information

Color

Black

Silver

White

Other

Finish

Anodized

Powder-coated

Grained

Polished

Material

Glass

Aluminium

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_24_81 Sliding folding doorsetsPrimary

CAWS

L20/520 Sliding doors

L20/540 Sliding folding doors

Specification data - Sliding folding doorsets

Classification data

Grade

Internal.

Format

Bi-parting opening.

Door leaf

-

Construction

Bi-fold door glazed in 12.8 mm acoustic laminated glass with glazing gasket and aluminium frame.

Finish

Anodized.
Powder-coated.
Grained.
Polished.

Operation

Manual.

Hardware

Optima lift-off butt hinges.

Guidance for specification option:

Door hinged with two pairs.

Accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Weighted sound reduction index, Rw + Ctr

33 (-0;-2) dB.

Seals

Planet KG-U drop seal, twinblade seal and bubble seal.

Guidance for specification option:

  • Base edge fitted with Planet KG-U drop seal acting on aluminium threshold plate (0582/0583).
  • Trailing and centre edge stiles sealed with twinblade seal (1105).
  • Leading edge fitted with bubble seal (0093).

Threshold

Aluminium threshold plate.

Sustainability data

Material

Glass
Aluminium
Carbon dioxide equivalent

Carbon dioxide equivalent, as defined in BS EN 15804

Self-declared

Stage
Normalised unit (kg CO₂ eq/kg)
Declared unit (kg CO₂ eq/m²)
Stage:A1–A3 ('Production stage')
Normalised unit :
Declared unit : 80.7

Product certifications

UKAS

UKAS

900416-0-Acoustic-Rw33dB-EDGE-Bi-fold-door-12.8mm-Ac-Lam
