Single Door Timber Frame - Non-fire rated/ FD30/ FD60 Doors

Verified by manufacturer 3 months ago

Non-Fired (NFR) Doorset

Forza Doors Limited Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

A range of bespoke single timber frame doors.

Jump to:
+44 (0)1403 711126 Website

Application

A range of bespoke, single leaf timber frame doors for internal use. They can be fitted into aluminium, timber or steel frames.

Suitable for:

  • Education: Schools, Colleges, Universities, Nurseries, etc.
  • Leisure: Leisure centres, gyms, stadiums, etc.
  • Hospitality: Bars, Restaurants, Hotels, etc.
  • Residential and domestic: Student accommodations, Flats, Apartments, High-end housing, New Build housing, Nursing homes, etc.
  • Commercial Buildings: Airports, Banks, Office blocks, Work spaces, etc.
  • Healthcare: Hospitals, Health centres, Walk-in centres, Private healthcare, GP offices, Surgeries, etc.


These doors are suitable for almost any internal application and the above list is only a representation of areas of use.

Description

A range of bespoke single timber frame doorsets in non-fire rated, FD30 and FD60 rated options. Any fire rated single doors come with the option of cold-smoke protection. All single doors come with various options of acoustic-rated performances. A wide range of material options are available, dependent on specification requirements.


These single doors can be manufactured to a wide range of custom sizes to accommodate a vast array of project requirements. Available in various finishes, including timber veneer, laminate, primed (for site painting) and factory painted. Bespoke staining options also available on request.


In addition, matching timber over-panels, glazed sidelights and glazed fan lights can be accommodated and there are a range of vision panel configurations available for the door leaves.


Factory applied mouldings and/or feature grooves are available on request. Please contact the Forza team for more information.


Forza Doors has primary test evidence that allows a wide range of ironmongery components and access controls to be fitted and certificated. Please contact the Forza team for more information and ironmongery suitability.


Features and benefits:

  • Approved under IFC Field of Application report PAR/10321/01 for use within aluminium, timber or steel frames utilized in the UK construction industry.
  • Each Forza fire door carries a unique IFCC label that identifies its audit trail of manufacture and affirms its fire characteristics.
  • Vision panels are suitably fitted with glass to provide non-fire, FD30/0, FD30/30, FD60/0, FD60/30, FD60/60 and acoustic performance. Other more project specific styles such as half oval or triangles are also available.
  • A wide range of veneers are available, offering a variety of cuts, grain directions and lay-on matching.
  • Mechanical test to BS EN 1192: (EN 947, EN 948, EN 949, EN 950) Severe Duty (class 4) and DD171:1987: Severe Duty.
  • Cycling tests to BS EN 1191 (classification to EN 12400): Heavy Duty (class 7).
  • Forza door assemblies tested under BS476: Part 22 1987. Approved under IFC Field of Application Certificate number FRTD497. For use with timber, steel or aluminium frames in the UK Construction industry.
  • Forza doors offer industry lead times on bespoke timber fire doors.
  • UK based timber fire door manufacturer, delivering though-out the United Kingdom, including Scotland, Ireland and Channel Islands. Export on request.
  • Continued investment in quality management systems including ISO9001:2015, ISO14001:2015 and ISO45001:2018.
  • Long standing members of FSC, and PEFC certification schemes.
  • Full technical support, both online, telephone and on site if required. Including ironmongery compatibility guides. DWG Files, BIM Models available upon request.
  • Sampling service available upon request for standard and bespoke veneers and laminates.
  • Full installation guide delivered with our doors.
  • EPDs available.

General information

Color

Clear

Beige

Black

Blue

Bronze

Show more

Finish

Lacquered

Guidance for specification option:

Two coats high solid UV cured lacquer; clear/ 30% gloss/ other.

Primed

Guidance for specification option:

Forza primed coat (FPC) for painting by others.


Stained

Guidance for specification option:

Finished with two coats high solid UV clear lacquer, 30% gloss.

Laminated

Veneered

Material

Timber

Guidance for specification option:

Hardwood / MDF.

Glass

Guidance for specification option:

Clear fire glass / Toughened glass

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/480 Doorsets

L20/410 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets

Standard

Internal non-fire-rated doorset third-party-certified.

Manufacturer guidance

With a glass safety rating to BS 6206 (BS EN 12600).

Wood in joinery standard

To BS EN 942.

Configuration

A – Single leaf.

D – Single leaf and overpanel.

G – Single leaf and glazed fan light.

J – Single leaf and sidelight(s).

Manufacturer guidance

Please download manufacturer's literature or see gallery.

Doorset size

-

Manufacturer guidance

Insert requirements from drawing/ schedule reference number where appropriate.

Performance

-

Fire resistance

-

Integrity

Non-rated.

Insulation

Non-rated.

Smoke leakage

Non-rated.

Reaction to fire

Non-rated.

Acoustic performance

Unrated.

To BS EN ISO 140-3:1995, sound reduction index Rw 32 dB.

Guidance for specification option:

44mm core.

To BS EN ISO 140-3:1995, sound reduction index Rw 33 dB.

Guidance for specification option:

44mm core with vision panel.

To BS EN ISO 140-3:1995, sound reduction index Rw 35 dB.

Guidance for specification option:

54mm core.

To BS EN ISO 140-3:1995, sound reduction index Rw 37 dB.

Guidance for specification option:

54mm acoustic core.

To BS EN ISO 140-3:1995, sound reduction index Rw 40 dB.

Guidance for specification option:

54mm acoustic core.

To BS EN ISO 140-3:1995, sound reduction index Rw 43 dB.

Guidance for specification option:

59mm acoustic core.

Strength and durability

To BS EN 1192, Class 4.

To BS EN 1192, Class 7.

Manufacturer guidance

  • Mechanical test to DD171: 1987 clauses 4.3, 4.4, 4.9, 4.10, 4.11. Severe Duty.
  • Mechanical test to BS EN 1192 (EN947, EN948, EN949, EN950).
  • Severe Duty (class 4) / Cycling tests to BS EN 1191 (classification to EN 12400). Heavy Duty (Class 7).

Thermal

-

Manufacturer guidance

Contact manufacturer.

Frame

-

Material

Hardwood.

MDF.

Species

Primed Tulipwood.

American white oak.

Ash.

European oak.

Cherry.

Beech.

Walnut.

Maple.

Other.

Guidance for specification option:

Please consult manufacturer.

Appearance class

J10.

J20.

J30.

J40.

Manufacturer guidance

Timber in accordance with BS EN 942.

Threshold

Non-combustible.

Guidance for specification option:

Please consult manufacturer for details.

Perimeter seals or inserts

-

Manufacturer guidance

In accordance with Forza Installation Instructions/ BS 8214: 2016.

Finish

Lacquered.

Guidance for specification option:

Two coats of high-solid acid catalyst lacquer, clear/ tinted, 20% gloss.

Stained.

Guidance for specification option:

Colour and finished with two coats high-solid acid-catalyzed lacquer.

Primed.

Guidance for specification option:

One or two coats for paint finishing by others.

Factory painted.

Guidance for specification option:

Any RAL or BS colour. Please insert requirements.

Colour

-

Manufacturer guidance

Consult manufacturer and insert requirements.

External

-

Manufacturer guidance

Please consult manufacturer.

Internal

-

Manufacturer guidance

Please consult manufacturer.

Installation fasteners

Screws.

Manufacturer guidance

In accordance with Forza Installation Instructions and/or BS 8214:2016.

Door leaf

-

Thickness

44 mm.

Core

Solid core.

Appearance class

J10.

J20.

J30.

J40.

Manufacturer guidance

Timber in accordance with BS EN 942.

Panel details

Yes.

Guidance for specification option:

Please refer to literature.

No.

Manufacturer guidance

Face applied bead.

Facings

Timber veneer.

HPL Laminate.

Primed.

Guidance for specification option:

Yorkite paper faced.

Factory sprayed.

Guidance for specification option:

Any RAL or BS colour.

Creato Veneers.

Guidance for specification option:

Please refer to manufacturer's literature.

Engineered veneers.

Guidance for specification option:

Please consult manufacturer.

Species

American white oak.

European oak.

Ash.

Walnut.

Beech.

Cherry.

Other.

Manufacturer guidance

Extensive range of natural and engineered veneer options available. Please consult manufacturer and insert requirements.

Cut

Crown cut veneer.

Straight cut veneer.

Rift cut veneer.

Quarter cut veneer.

Slip matched cut veneer.

Book matched cut veneer.

Random matched cut veneer.

Lippings

Hardwood - concealed timber lipping.

Hardwood - exposed timber lipping.

Guidance for specification option:

Laminate doors only.

Factory spray painted.

Perimeter seals

Not required.

Acoustic.

Finish

Lacquered.

Guidance for specification option:

Clear lacquered, 5-30% gloss available.

Factory stain.

Limed wash.

Full paint finish.

Primed ready for site finish.

Glazing

-

Type

Not Required.

Clear single safety glazing in accordance with BS 6262-4.

Acoustic glass.

Guidance for specification option:

Consult manufacturer for range of acoustic values.

Beading

-

Type

Cloak (Hockey stick) - chamfered.

Flush (Quirk).

Concealed one side.

Other proprietary.

Guidance for specification option:

Subject to approval; insert requirements.

Material

Hardwood.

Fixing

Factory fitted.

Door accessories

-

Manufacturer guidance

Refer to Forza Hardware Suitability & Installation Guide for all options.

Planted stops

-

Wood species

Primed Tulipwood.

American white oak.

Ash.

European oak.

Cherry.

Beech.

Walnut.

Maple.

Other.

Guidance for specification option:

Please consult manufacturer.

Appearance class

J10.

J20.

J30.

J40.

Manufacturer guidance

Timber in accordance with BS EN 942.

Finish

Primed.

Lacquered.

Stained.

Factory sprayed.

Primed ready for site finish.

Colour

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Hardware

-

Manufacturer guidance

As schedule and in accordance with Forza Hardware Suitability & Installation Guide.

Architraves

-

Material

Timber.

MDF.

Guidance for specification option:

See manufacturer's installation guide for suitable fire mastic.

Wood appearance class

To BS EN 942, Class J10.

To BS EN 942, Class J20.

To BS EN 942, Class J30.

To BS EN 942, Class J40.

Finish

Primed.

Lacquered.

Stained.

Factory sprayed.

Primed ready for site finish.

Third party certification:

IFC Field of Application report PAR/10321/01 / FSC CU-COC-104313 / PEFC CU-PEFC-816129.

Design

-

Manufacturer guidance

See Forza Frame Design Brochure.

Access control

-

Manufacturer guidance

Refer to Forza Technical Department.

Vision panels

V1.

Guidance for specification option:

450 x 450 mm. Square glazing in the upper centre of the door leaf.

V2.

Guidance for specification option:

600 x 150 mm (h x w). Rectangular glazing in the upper left of the door leaf.

V3.

Guidance for specification option:

1500 x 150 mm (h x w). Rectangular glazing down the left of the door leaf. Complies with minimum zones of visibility- Approved Document K 2013.

V4.

Guidance for specification option:

(3) 150 x 150 mm. Three square glazing panels in the upper left of the door leaf.

V5.

Guidance for specification option:

700 x 150 mm and 600 x 150 mm (h x w). Two rectangular glazing panels down the left of the door leaf. Complies with minimum zones of visibility- Approved Document K 2013.

Show more

Manufacturer guidance

Please see manufacturer's literature for images and further details.

Sustainability data

Country of product manufacture

United Kingdom

Material

Timber

Guidance for specification option:

Hardwood / MDF.

Glass

Guidance for specification option:

Clear fire glass / Toughened glass

Third party certifications

Third party certifications

EPD

FD30 4 Part Solid Wood Door Frame Primed Ready To Paint

EPD

FD60 4 Part Solid White Oak Door Frame Clear Lacquer Finish

Literature

The Forza FD30 Fire Certificate

The Forza FD30 Fire Certificate

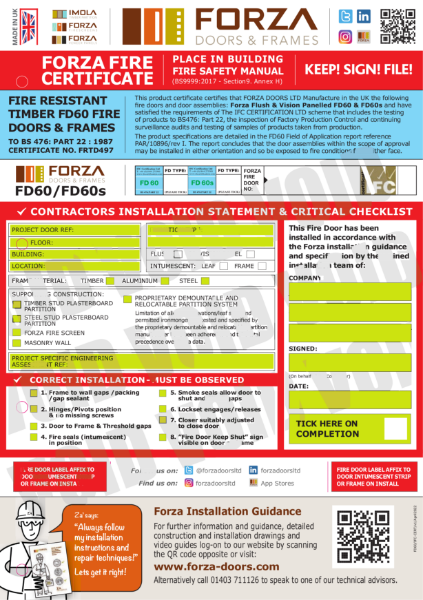

The Forza FD60 Fire Certificate

The Forza FD60 Fire Certificate

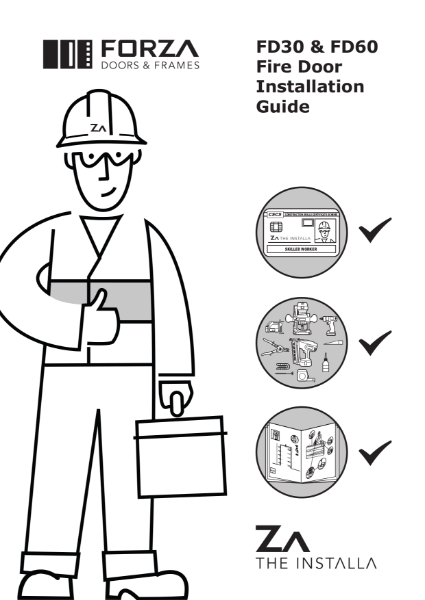

ZA THE INSTALLA FD30 & FD60 Fire Door Installation Guide

ZA THE INSTALLA FD30 & FD60 Fire Door Installation Guide

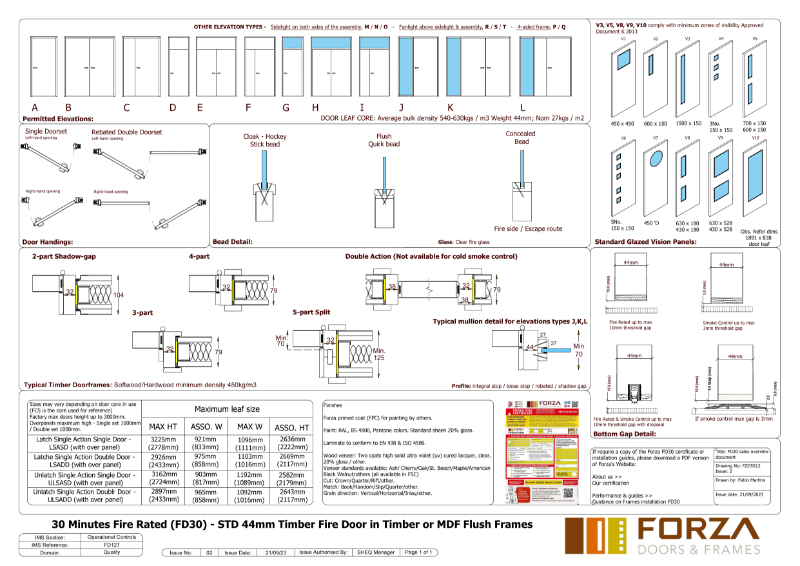

Forza Doors Timber Frame Doorset Data Sheet

Forza Doors Timber Frame Doorset Data Sheet

Similar products from Forza Doors Limited

Double Door Timber Frame - Non-fire rated/ FD30/ FD60 Doors

Double Door Timber Frame - Non-fire rated/ FD30/ FD60 Doors

FD120 Timber Internal Flush Doorset

FD30 Double Door Flush Frame

FD30 Double Door Flush Frame

FD30 Double Door Flush Frame - Vision Panel 1

FD30 Double Door Flush Frame - Vision Panel 1

FD30 Double Door Flush Frame - Vision Panel 2

FD30 Double Door Flush Frame - Vision Panel 2

FD30 Double Door Flush Frame - Vision Panel 3

FD30 Double Door Flush Frame - Vision Panel 3

FD30 Double Door Flush Frame - Vision Panel 4

FD30 Double Door Flush Frame - Vision Panel 4

FD30 Double Door Flush Frame - Vision Panel 5

FD30 Double Door Flush Frame - Vision Panel 5

FD30 Double Door Flush Frame - Vision Panel 6

FD30 Double Door Flush Frame - Vision Panel 6

FD30 Double Door Flush Frame - Vision Panel 7

FD30 Double Door Flush Frame - Vision Panel 7

© 2024 NBS Enterprises Ltd. All rights reserved.
