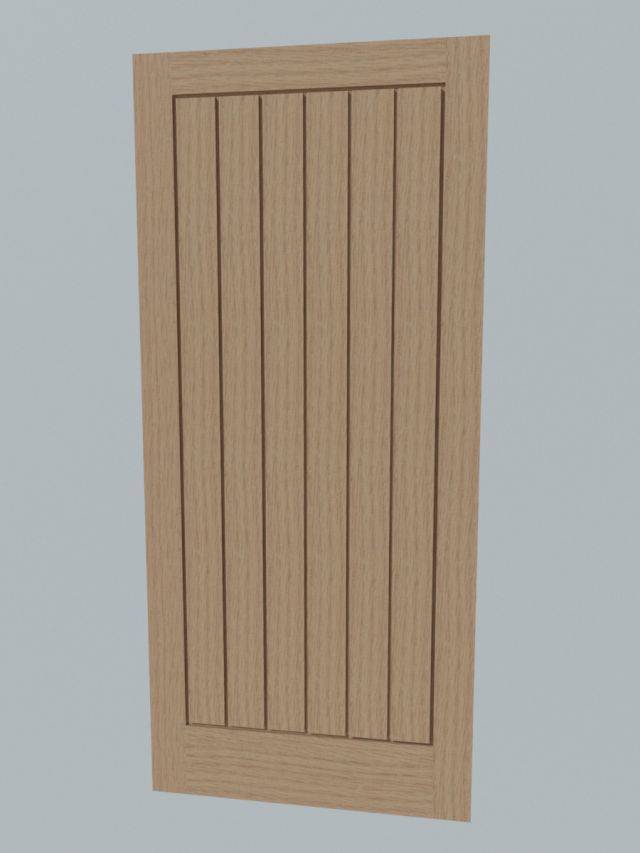

Single Boarded Door
Application

Internal use.

Description

Bespoke made-to-measure boarded doors and doorsets in either solid mortice and tenon or flush panel with grooves. Available in a number of designs, finishes and features. Ideal for heritage projects where matching existing doors is crucial.

Features and benefits:

  • IFC Fire Certification BS 476: PART 22: 1987.
  • Bespoke handcrafted solid timber.
  • Manufactured in Britain.
  • Traditional mortice and tenon construction.
  • NFR, FD30, FD30s, FD60 and FD60s available.
  • Choice of profile moulds, panel design, bed and bolection moulds.
  • Glazing and acoustic options.
  • Available in mortice and tenon or flush panel with grooves.
  • Available in various timbers and finishes.

Application:

Internal use.

General information
Features

Bespoke handcrafted solid timber

Finish

Cleaned, fully painted, lacquered, stained or primed with two coats, oil finish

Material

Wide range of wood species available

Shape

Rectangular

Size

Made to measure as per schedule; see manufacturing details for maximum size allowance to fire doors

Uniclass 2015
Pr_30_59_24_97 Wood doorsetsPrimary
CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets
Product Reference

Johan Boarded Door

Third party accreditation

International Fire Consultants (IFC)

Standard

BS 476-22

Configuration

Double action, double door (DADD)

Double action, single door (DASD)

Latched single action, double door (LSADD)

Latched single action, single door (LSASD)

Unlatched single action, double door (ULSADD)

Unlatched single action, single door (ULSASD)

Size

As drawing

Insert reference; see manufacturing details for maximum size allowance to fire doors.

As schedule

Insert reference; see manufacturing details for maximum size allowance to fire doors.

Performance -
Fire resistance -
Integrity

NFR

FD30

FD30s

FD60

FD60s

Frame -
FrameMaterial

Hardwood

Softwood

Species

Solid American black walnut

FD30, FD60.

Solid American white oak

NFR, FD30, FD60.

Solid ash American

NFR, FD30, FD60.

Solid Douglas fir

NFR, FD30.

Solid ash European

NFR, FD30.

Solid bespoke

Insert requirement.

Solid cherry American

NFR, FD30, FD60.

Solid European oak

NFR, FD30, FD60.

Solid French walnut

NFR, FD30, FD60.

Solid iroko

NFR.

Solid movingue

NFR, FD30, FD60.

Solid rock maple

NFR, FD30, FD60.

Solid sapele

NFR, FD30, FD60.

Solid tulipwood

NFR, FD30.

Solid utile

NFR , FD30 and FD60.

Solid wenge

Solid West African mahogany

NFR, FD30, FD60.

Threshold

Johan DD1 - Morticed Acoustic Drop Seal tested to BS 476-22: 1987

Perimeter seals or inserts

Pyrostrip as per Johan Doors manufacturing detail

Frame finish

Cleaned for site finish

Lacquer

Stain

Two-coat primed for site finish

Oil Finish

Colour -
External

Insert requirement dependent on finish specified.

Internal

Insert requirement dependent on finish specified.

Installation fasteners

Steel Fixings as per Johan Doors manufacturing details

Door leaf -
Thickness

44 mm

Core

Solid timber

Panel details

Joha Dufftown

Johan Glenwyvis

Johan Hazelburn

Species

Solid American black walnut

FD30, FD60.

Solid American white oak

NFR, FD30, FD60.

Solid ash American

NFR, FD30, FD60.

Solid Douglas fir

NFR, FD30.

Solid ash European

NFR, FD30.

Solid bespoke

Insert requirement.

Solid cherry American

NFR, FD30, FD60.

Solid European oak

NFR, FD30, FD60.

Solid French walnut

NFR, FD30, FD60.

Solid iroko

NFR.

Solid movingue

NFR, FD30, FD60.

Solid rock maple

NFR, FD30, FD60.

Solid sapele

NFR, FD30, FD60.

Solid tulipwood

NFR, FD30.

Solid utile

NFR , FD30 and FD60.

Solid wenge

Solid West African mahogany

NFR, FD30, FD60.

Perimeter seals

As per Johan manufacturing detail

Finish

Cleaned for site finish

Fully painted

Lacquer

Stain

Two-coat primed for site finish

Oil Finish

Colour -
External

Insert requirement dependent on finish specified.

Internal

Insert requirement dependent on finish specified.

Door leaf glazing -
Type

As per Johan manufacturing details

Manifestation

By others

Beading -
Type

As per Johan manufacturing details

Material

As per Johan manufacturing details

Fixing

As per Johan manufacturing details

Planted stops -
Wood species

As per Johan manufacturing details

Finish

As per Johan manufacturing details

Colour

As per Johan manufacturing details

Hardware

Consult Johan Doors for ironmongery specification

Architraves -
Material

Not required

JAR1

JAR2

JAR3

JAR4

JAR5

JAR6

JAR7

JAR8

To match

Insert requirement.

Finish

Not applicable

Cleaned for site finish

Lacquer

Stain

Two-coat primed for site finish

Oil Finish

Colour -
External

Insert requirement dependent on finish specified.

Internal

Insert requirement dependent on finish specified.

Accessories

None

Dado rail

Picture rail

Plinth blocks

Skirting

Design

Johan Dufftown

Johan Glenwyvis

Johan Hazelburn

FrameType

Acoustic frame

Acoustic frame lining and stop

Acoustic frame rebated

Acoustic frame rebated lining and stop

Lining and stop

Lining and stop for concealed hinges

Rebated concealed hinges

Lining and stop with extension lining

Rebated

Rebated with extension lining

Split frame (sliding doors)

Door closers

Not required

Jamb concealed closer

Overhead concealed closer

FD30 only.

Overhead door closer

Hinges -
Type

1750CE Simonswerk Tritech Concealed Bearing Butt Hinge

For fire doors up to 160 kg.

1750 Simonswerk Tritech Concealed Bearing Butt Hinge

For non-fire rated doors up to 160 kg.

1850CE Simonswerk Samson Concealed Bearing Butt Hinge

For fire doors up to 100 kg.

1850 Simonswerk Samson Concealed Bearing Butt Hinge

For non-fire rated doors up to 100 kg.

TE 340 3D Simonswerk Concealed Hinge System

Non-fire doors only up to 80 kg.

Finish

Aged Brass

Antique Brass

Antique Nickel

Black Nickel

Copper Bronze

Copper

Honeycombe

Imitation Bronze

Midnight

Pear Nickel

Polished Chrome

Polished and lacquered

Polished Nickel

Satin Brass and lacquered

Satin Chrome

Satin Nickel

Stainless Steel effect

Finials

Not required

Acorn

Adam

Apollo

Basic

Cross

Deco

Orb

Planet

Regal

Saturn

Soft

Star

Top

Urn

Decorative finish

Not applicable

Flowing Bark

Recurring Rectangles

Gator Reflections

Skateline

Standard product features

Colour:

Wide range available dependent on species and finish.

Features:

Bespoke handcrafted solid timber.

Finish:

Cleaned, fully painted, lacquered, stained or primed with two coats, oil finish.

Material:

Wide range of wood species available.

Shape:

Rectangular.

Size:

Made to measure as per schedule; see manufacturing details for maximum size allowance to fire doors.

Country of origin:

United Kingdom.

Country of manufacture:

United Kingdom.

Third party certifications
  • International Fire Consultants (IFC): BS476: PART 22: 1987
