Sineu Graff Series 9100
Description

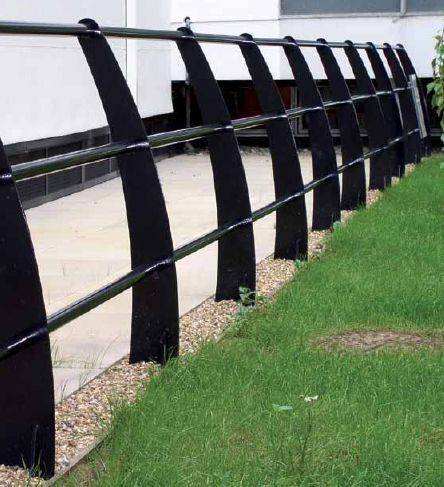

Series 9100 safety barriers feature a unique curved anti-climb profile. They are manufactured in zinc plated steel with a powder coat finish as standard. The system can be supplied as pre-assembled single barriers finished in powder coat only in either 2 m or 3 m lengths or as a continuous barrier with recommended upright spacing of 1.7 m.

General information
Material

Carbon steel

Standard.

Grade 316L stainless steel

Special order.

Uniclass 2015
Ss_25_15_60_56 Metal post and rail barrier systemsPrimary
CAWS

Q40/30 Proprietary fencing

Q40/430 Proprietary fencing

Specification data - Metal post and rail barrier systems
Product Reference

Sineu Graff Series 9100

Material

Carbon steel

Standard.

Grade 316L stainless steel

Special order.

Finish -
FinishType

Not required

Galvanized

Polished

Only available with stainless steel.

Powder coated

Primed

Shot peened

Only available with stainless steel.

Colour

Not required

Black

Uprights -
Post base

Base plate

Root

As drawing ___

Rails

3

7

Standard product features

Height:

1196 mm.

Post centres:

1700 mm.

Product Options

Material:

Carbon steel is standard, also available to special order in grade 316L stainless steel.

Finish:

Galvanized, primed for site painting or powder coated, polished or shot peened are available for stainless steel.

Colour:

Colours are available on request.

Uprights:

Available in either root or base plate fixing.

Rails:

Either 3 or 7 rails are supplied as standard.
