Sill Forming Cavity Tray

Description

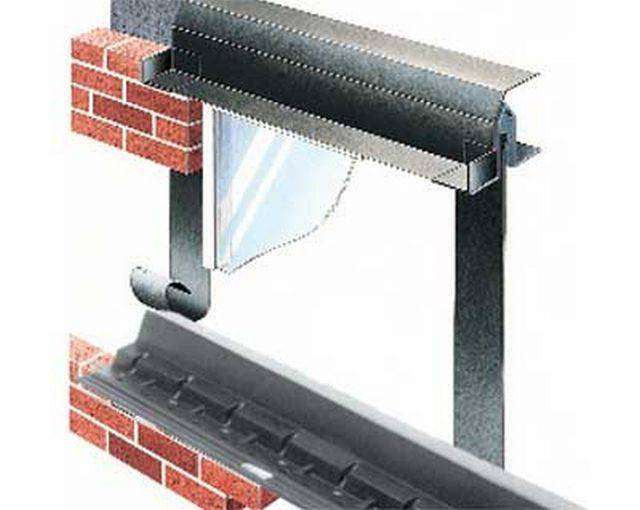

Sill Forming Cavity Tray is a preformed under sill unit that provides a DPC and support during construction for brick or tile sills.

Different product types are available for masonry, timber frame and constructions requiring the tray to be independent of the inner leaf.

Features:

  • Fully self supporting sill former.
  • Provides a constant angle and even line.
  • Unique easy snap off front lip support.
  • Full range of cut to length sizes available.
  • Consistency and build quality maintained.
  • No site fabrication.
  • Tough, durable, scratch resistant and puncture resistant.

General information

Features

Fully self supporting sill former

Provides a constant angle and even line

Unique easy snap off front lip support

Full range of cut to length sizes available

Consistency and build quality maintained

Show more

Material

Thermoplastic material specially developed for external use, with high impact strength and exceptional weathering stability

Uniclass 2015

Pr_25_57_21_66 Preformed cavity traysPrimary

CAWS

F30/370 Preformed cavity trays

F30/56 Preformed cavity trays

Specification data - Preformed cavity trays

Product Reference

Sill Forming Cavity Tray

Location

As shown on drawings

Cavity width

50 mm

75 mm

Product code

STA50

For masonry walls with 50 mm cavity.

STC50

For timber frame with 50 mm cavity.

STR50

For walls with 50 mm cavities and sills in external leaves that are independent of the inner leaf.

STA75

For masonry walls with 75 mm cavity.

STC75

For timber frame with 75 mm cavity.

STR75

For walls with 75 mm cavities and sills in external leaves that are independent of the inner leaf.

Standard product features

Material:

Thermoplastic material specially developed for external use, with high impact strength and exceptional weathering stability.

Colour:

Black.

Length:

Available in cut to length sizes up to a maximum of 2.85 m.

Height:

Equivalent to two brick courses.

Product Options

Cavity width:

Cavity trays are available for 50 mm and 75 mm cavities.
