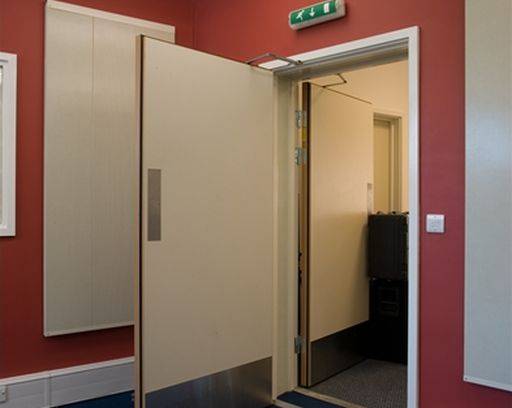

SilentDoor - LH Active NFR Single- Plain
SilentDoor Acoustic Doors - designed to provide sound privacy in any environment by reducing the sound transmission between rooms.
Any environment that requires sound reduction treatment between two areas, including:
- Museums and galleries.
- Educational buildings.
- Medical centres and hospitals.
- Studios and offices.
- Police stations.
- Hotels.
A range of single and double leaf acoustic timber doorsets suitable for internal and external use. Manufactured from a robust and reliable wooden construction with specially designed hinges for durability and longevity.
Designed to reduce sound transmission between rooms and to provide sound privacy in any architectural environment. SilentDoors are supplied with threshold seals and a variety of door hardware including emergency panic buttons.
Applications:
Any environment that requires sound reduction treatment between two areas, including:
- Museums and galleries.
- Educational buildings.
- Medical centres and hospitals.
- Studios and offices.
- Police stations.
- Hotels.
Finish | Laminate Insert requirement. Plain Primer coat only applied. Wood veneer Insert requirement. |
Uniclass 2015 | |
CAWS | L20/410 Wood doorsets L20/55 Doorsets |
Product Reference | SilentDoor® - Timber |
Type | AT/1200-45Single leaf, Rw 45 dB. AT/1200-48Single leaf, Rw 48 dB. AT/3000-45Double leaf, Rw 41 dB. AT/3000-48Double leaf, Rw 44 dB. |
FireRating | Not requiredFD30sAT/1200-48 only. |
Operation | Lever handle and latchStandard. OtherConsult manufacturer and insert requirements. |
Finish | LaminateInsert requirement. PlainPrimer coat only applied. Wood veneerInsert requirement. |
Vision panels | Not requiredRectangularSquare |
Hardware | Consult manufacturer and insert requirements. |
Standard product features | Type: - AT/1200-45 and AT/1200-48:
- AT/3000-45 and AT/3000-48:
Fire rating: Single leaf doorsets independently tested and achieve 30 minutes' fire protection. Vision panels: - Glazing:
Threshold seals:
|
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | IFC2X3 | 1 | 1.3 |
| IFC | IFC2X3 | 1 | 1.3 |
 Revit | Revit 2016 | 2 | 2.0 |
