Silence Double Glazed Partitions - Office/ Meeting Space Partition Systems
Verified by manufacturer 22 hours ago
Silence 50D
Silence 50D
High-performing double glazed partition systems for offices and meeting spaces with acoustic ratings up to 52 dB and with pivoting door integration.
Application
Suitable for use in meeting spaces and offices, providing acoustic partitioning solutions.
Pivoting door compatibility.
Description
Silence Double Glazed Partitions are high-performing solutions designed for meeting spaces and offices, featuring pivoting door integration.
Features and benefits:
- Acoustics up to 52 dB.
- Maximum height up to 3700 mm.
- ±15 to ±40 mm deflection head (exposed or recessed).
- Multiple base track and abutment track sizes from 20 to 95 mm.
- Glass thickness ranging from 6 to 16.8 mm, with toughened, laminated and acoustic laminated glass options available.
- All systems are independently acoustically tested.
- Patented SioSeal modular system delivers excellent acoustic and structural performance.
- Wider profiles enhance stability with an innovative double-seal design at the head and vertical abutments.
- Surface-mounted and recessed deflection head options with precise aluminium channel dimensions.
- Silence 25 is compatible with pivoting doors from Fulcra® Framed Glazed, Fulcra® Double Glazed, Fulcra® Frameless and Arba Timber.
- Silence 59 is compatible with sliding doors from Syncra® Framed and Frameless Sliding Doors.
- Designed for disassembly, reuse, and supports circular economy principles.
- Manufactured using low-carbon glass and aluminium with high recycled content.
- Supported by environmental product declarations and independent acoustic testing to UKAS standards.
General information
Color | Clear Black White Grey Other |
Finish | Powder-coated Manufacturer guidancePower coated to any RAL colour |
Material | Aluminium Glass |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year Manufacturer guidance1 year after installation Maintenance agreement available |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Classification data | |
Standard | Toughened glass manufactured to BS EN 12150. All systems are independently acoustically tested in a laboratory to UKAS testing standards. Laboratory Measurement to BS EN ISO 10140-2 : 2010 Airborne Sound Insulation of Building Elements. Guidance for specification option: Certificates available on request. |
Fire performance | Manufacturer's standard. |
Unit size | |
Thickness | Manufacturer's standard. |
Partition height (nominal) | Guidance for specification option: Insert requirements.
|
Width (nominal) | Guidance for specification option: Consult manufacturer and insert requirements. |
Deflection allowance (maximum) | |
Head | Surface-mounted, no deflection. Guidance for specification option: 25 mm-deep x 50 mm-wide aluminium channel. Surface-mounted, ±15 mm deflection. Guidance for specification option: 73 mm-deep x 50 mm-wide two-part aluminium channel. Surface-mounted, ±25 mm deflection. Guidance for specification option: 83 mm-deep x 50 mm-wide two-part aluminium channel. Recessed, ±15 mm deflection. Guidance for specification option: 15 mm visible aluminium channel. Recessed, ±25 mm deflection. Guidance for specification option: 25 mm visible aluminium channel. Manufacturer guidanceNote: coordination is required with the ceiling contractor. |
Panel partition type | Glazed. |
Framing, fixing points and joints | Base: surface-mounted aluminium U-channel, 50 x 25 mm; screw fixed. Guidance for specification option: Standard. See also Frame finish below. Base: surface-mounted aluminium U-channel, 50 x 25 mm snap off; screw fixed. Base: surface-mounted aluminium U-channel, 50 x 40 mm; screw fixed. Base: surface-mounted aluminium U-channel, 50 x 55 mm; screw fixed. Manufacturer guidanceLarger base details available, consult manufacturer for details. |
Glazed panels | |
Type | Full height with two layers of acoustic laminate glass, 10–16.8 mm. Guidance for specification option: Insert glass thickness requirements. |
Additional features | Manifestation graphics. Guidance for specification option: Consult manufacturer for options and insert requirements. Not required. Manufacturer guidanceSioSystems offers a full supply and installation service for manifestation graphics that meet current building regulations. In particular, the Building Regulations 2000: Part M which outlines requirements for glass entrances and screens to ensure safety, visibility, and accessibility in public and commercial spaces. |
Door arrangement | |
Type | Guidance for specification option: Compatible with pivoting doors from:
Consult manufacturer for details and insert requirements. |
Seals | SioSeal patented double-seal system. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Glass components are manufactured using cullet glass recovered from pre-consumer and post-consumer end-of-life windows and facades. Low embodied carbon glass with higher levels of recycled content is also available. Aluminium profiles are manufactured using recycled billets containing between 67% and 100% post-consumer scrap. Manufacturer guidanceConsult manufacturer for further details. |
Acoustic performance rating | Guidance for specification option: Available ±42 dB Rw to ±46 dB Rw; consult manufacturer for details based on other requirements, or state acoustic rating required and enter other details to match. |
Frame finish | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Manufacturing plant location | |
Material | Aluminium Glass |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidance
|
Expected Life | Lifetime |
Literature

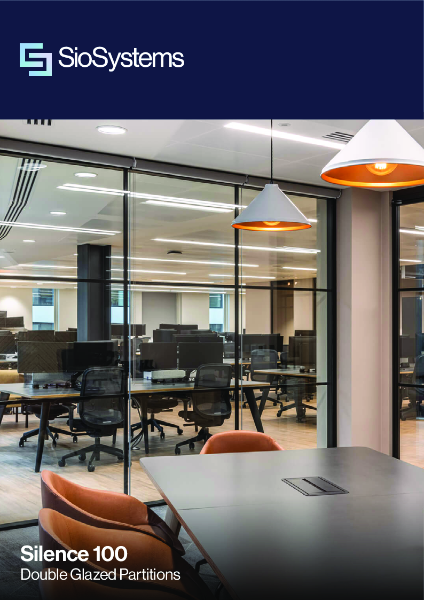

SioSystems Silence100 Double Glazed Partitions - Data Sheet

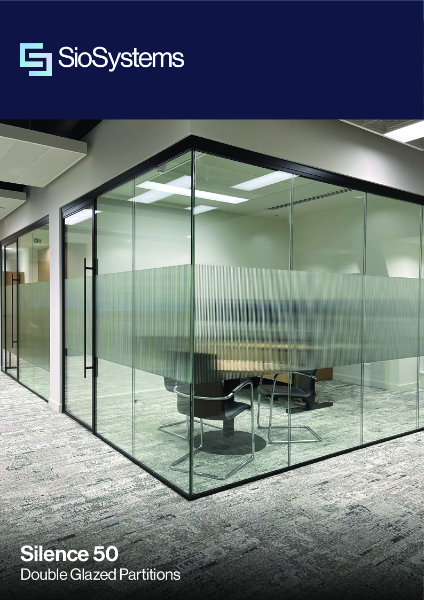

SioSystems Silence50 Double Glazed Partitions - Data Sheet
